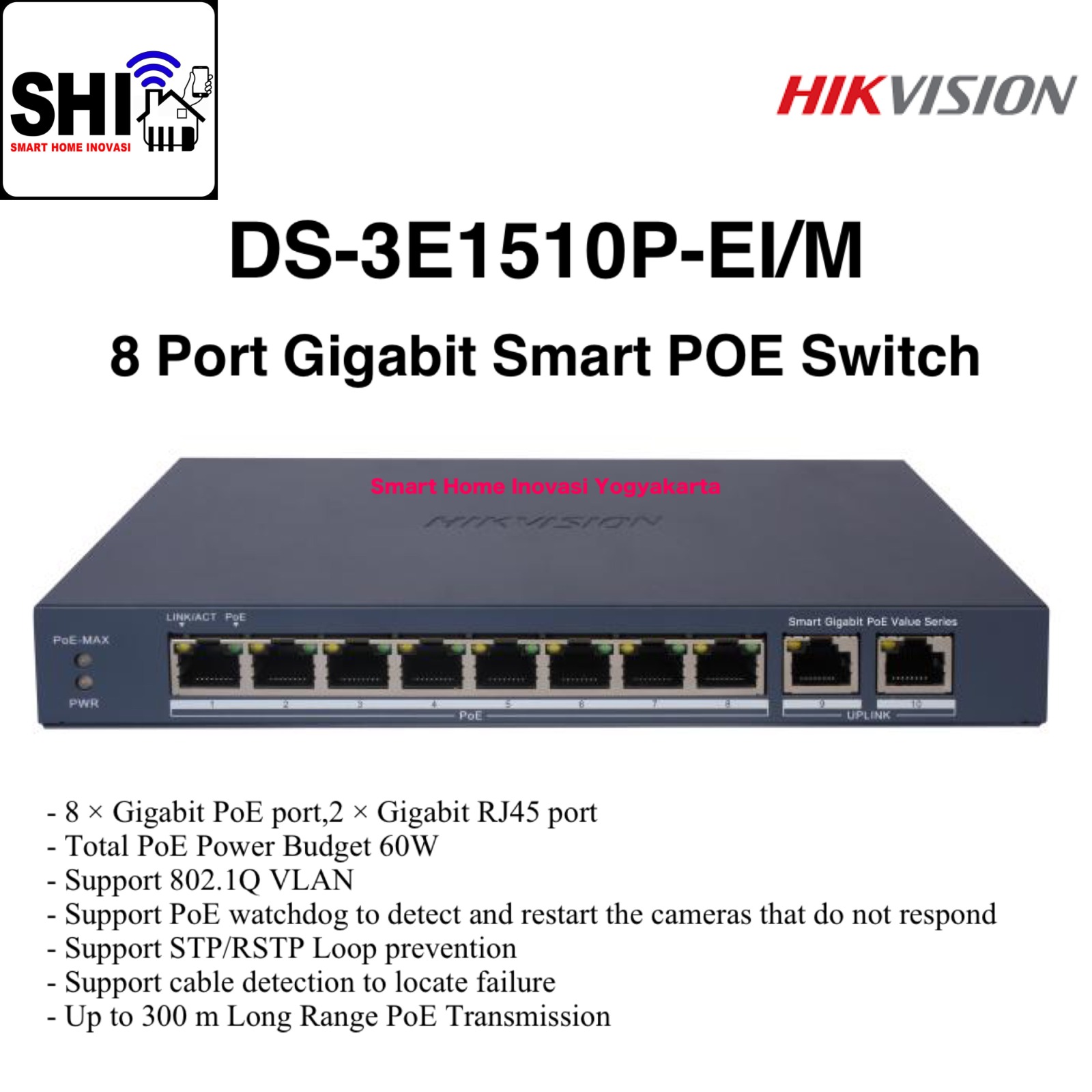

HIKVISION DS-3E1510P-EI/M, 8 Port Gigabit Smart POE Switch

HIKVISION DS-3E1510P-EI/M, 8 Port Gigabit Smart POE Switch

Overview :

• 8 × Gigabit PoE port,2 × Gigabit RJ45 port

• Total PoE Power Budget 60W

• Support 802.1Q VLAN

• Support PoE watchdog to detect and
        restart the cameras that do not respond

• Support STP/RSTP Loop prevention

• Support cable detection to locate failure

• Up to 300 m Long Range PoE Transmission

• 6KV Surge Protection

General :

• Shell : Metal material

• Net Weight : 0.54 kg (1.19 lb)

• Gross Weight : 1.08 kg (2.38 lb)

• Dimensions (W × H × D) :

  • 217.6 mm × 27.6 mm × 108.5 mm (8.57'' × 1.09'' × 4.27'')

• Operating Temperature : 0 °C to 40 °C (32 °F to 104 °F)

• Storage Temperature : -40 °C to 85 °C (-40 °F to 185 °F)

• Operating Humidity : 5% to 95% (no condensation)

• Relative Humidity : 5% to 95% (no condensation)

• Power Supply : 54VDC, 1.2A

• Installation Mode : Desk-Mounted,Wall-Mounted

• Max. Power Consumption : 65 W

• Power Consumption in Idle : 2.5 W

• Surge Protection : 6 KV

Network Parameters :

• Ports : 8 × Gigabit PoE port,2 × Gigabit RJ45 port

• MAC Address Table : 4 K

• Switching Capacity : 20 Gbps

• Packet Forwarding Rate : 14.88 Mpps

• Internal Cache : 1.5 Mbits

PoE Power Supply :

• PoE Standard : IEEE 802.3af,IEEE 802.3at

• PoE Power Pin : End-span: 1/2(-), 3/6(+)

• PoE Port : PoE: Ports 1 to 8

• Max. Port Power : 30 W

• PoE Power Budget : 60 W

Software Function :

• Long Range :

  • Ports 1 to 8 : up to 300 m.

  • Long range performance may vary depend on
          camera model or cable condition.

• Port Isolation :

  • Ports 1 to 8 : port isolation mode to improve network security

  • Ports in an isolation group cannot communicate with each other,
          but they can communicate with ports outside the isolation group.

• PoE Watchdog :

  • Ports 1 to 8 : auto detect and restart the cameras that do not respond.

• Link Aggregation :

  • Link aggregation is used to aggregate multiple physical ports to
          form a logical port for load balancing, bandwidth expansion,
          and port protection.

  • Support static link aggregation.

  • Support 3 aggregation groups.

• Loop Prevention :

  • Loop prevention is used to prevent the switching network from
          forming loops, which will seriously affect network communication.

  • Disabled by default.

  • Support 802.1D STP.

  • Suppport 802.1w RSTP.

• VLAN :

  • VLAN is used for network scale planning and network
          health improvement.

  • Support 802.1Q.

  • Configurable VLAN ID from 1-4094.

  • Support Trunk, Access port mode.

  • Support Max. 32 VLAN.

• HPP :

  • Support one-click activation and remote management via
          Hik-Partner Pro. Functions supported :

    • Display the port rate.

    • Display the port bandwidth utilization rate.

    • Display the PoE power usage.

    • Display topology information.

    • Display the alarm status.

    • Restart ports and devices.

    • Enable port long-rage mode.

    • Remotely upgrade the device.

System Maintenance :

• Support device management via web.

• Support DHCP Client. Enabled by default for dynamic
        assignment of management IP addresses.

• Support Super IP

  • Which is a fixed IP address (10.180.190.200) for direct access.

• Support management via Hik-Central Pro.

• Support remote management via Hik-Partner Pro.

• Support cable detection.

  • Abnormal open circuits and short circuits as well as network
         cable length can be detected.

• Supports 802.1ab LLDP for peer device discovery.

• Support port mirroring for fault locating.

Approval :

• EMC : CE-EMC

  • EN 55032: 2015+A11: 2020

  • EN IEC 61000-3-2: 2019

  • EN 61000-3-3: 2013+A1: 2019

  • EN 50130-4: 2011+A1: 2014

  • EN 55035: 2017+A11: 2020

• Safety :

  • CB

    • AMD1:2009

    • AMD2:2013

    • IEC 62368-1: 2014 (Second Edition)

  • CE-LVD (EN 62368-1: 2014+A11: 2017)

• Chemistry :

  • Reach (Regulation (EC) No.1907/2006)

  • WEEE (2012/19/EU)

  • CE-RoHS (2011/65/EU)
