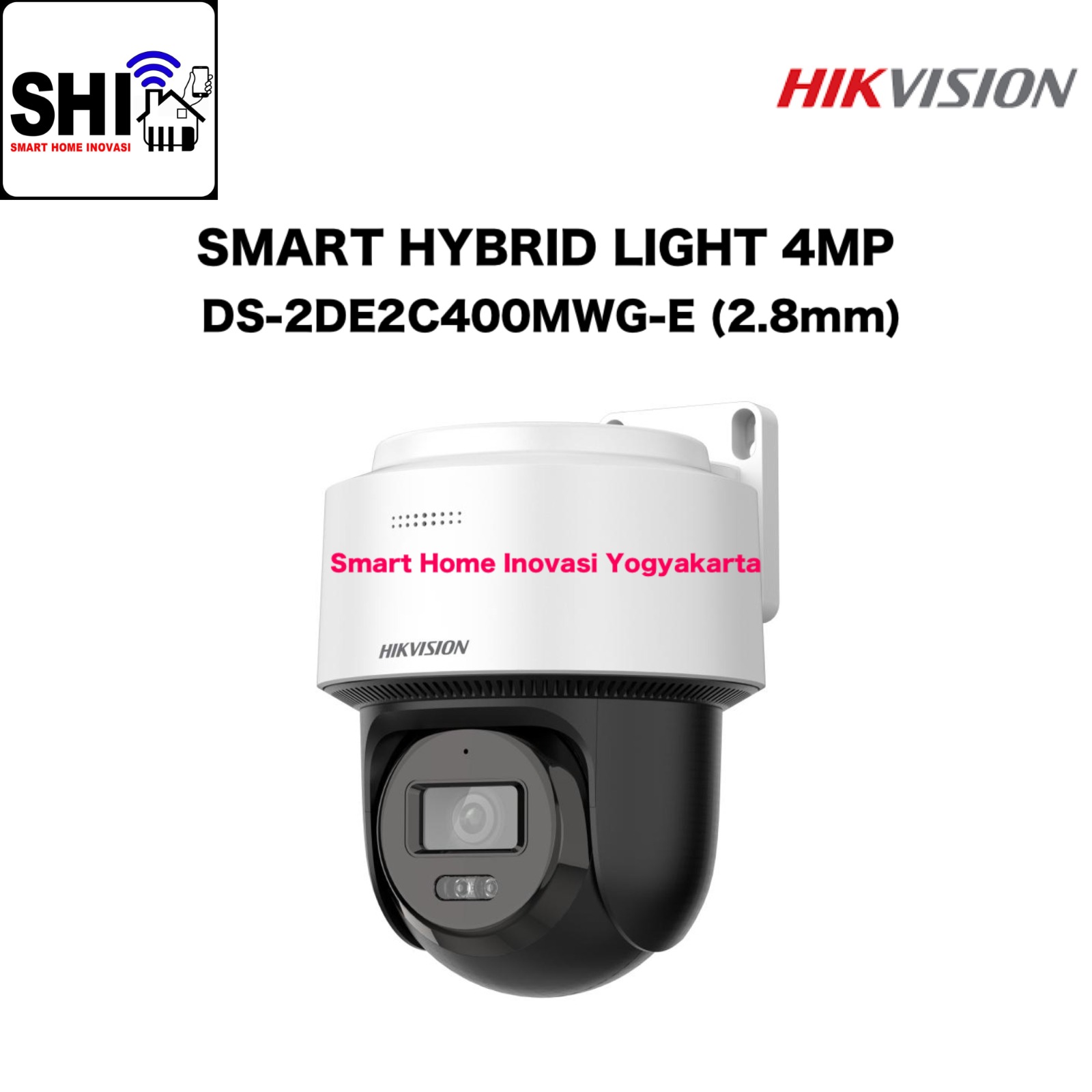

HIKVISION DS-2DE2C400MWG-E, PoE Camera 4MP (2.8MM), 4MP Fixed Outdoor Smart Hybrid-light PT Network Camera

HIKVISION DS-2DE2C400MWG-E, PoE Camera 4MP (2.8MM), 4MP Fixed Outdoor Smart Hybrid-light PT Network Camera

Overview :

• High quality imaging with 4MP resolution

• Support Human Detection and Auto-tracking Lite

• Smart Hybrid Light: advanced technology with long range

• Hik-Connect cloud service and APP for remote management and views of devices

• Built-in microphone and speaker for real-time audio security

• Built-in memory card slot, support microSD/SDHC/SDXC card, up to 512 GB

• Water and dust resistant (IP66)Camera

SPESIFIKASI :

Camera :

• Image Sensor : 1/3" Progressive Scan CMOS

• Max. Resolution : 2560 × 1440

• Min. Illumination :

  • Color: 0.01 Lux @ (F2.0, AGC ON)

  • B/W: 0.005 Lux @ (F2.0, AGC ON),0 Lux with light

Lens :

• Focal Length : 2.8 mm, 4 mm

• FOV :

  • 2.8 mm

    • Horizontal : 94°, Vertical : 49°, Diagonal : 114°

  • 4 mm :

    • Horizontal : 70°, Vertical : 35°, Diagonal : 85°

• Aperture : F1.6

Illuminator :

• Supplement Light Type : IR, White Light

• Supplement Light Range :

  • White light distance : up to 30 m

  • IR distance : up to 30 m

• IR Wavelength : 850 nm

PTZ :

• Movement Range (Pan) : 0° to 345°

• Movement Range (Tilt) : 0° to 80°

• Pan Speed : Up to 25°/s

• Tilt Speed : Up to 20°/s

Video :

• Main Stream :

  • 50 Hz : 25 fps (1920 × 1080, 1280 × 720)

  • 60 Hz : 30 fps (1920 × 1080, 1280 × 720)

• Sub-Stream :

  • 50 Hz : 25 fps (640 × 480, 640 × 360)

  • 60 Hz: 30 fps (640 × 480, 640 × 360)

• Video Compression : H.265, H.264, MJPEG

• Video Bit Rate : 32 Kbps to 8 Mbps

• H.264 Type : Baseline profile, Main profile, High profile

• H.265 Type : Main profile

Audio :

• Audio Compression :

  • G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC

• Audio Bit Rate :

  • 16 Kbps (G.722.1)

  • 64 Kbps (G.711)

  • 32 to 192 Kbps (MP2L2)

  • 16 Kbps (G.726)

  • 16 to 64 Kbps (AAC-LC)

  • 8 to 48 Kbps (PCM)

• Audio Sampling Rate : 8 kHz,16 kHz

• Environment Noise Filtering : Yes

Network :

• Protocols :

  • IPv4/IPv6

  • HTTP

  • HTTPS

  • QoS

  • FTP

  • SMTP

  • UPnP

  • DNS

  • NTP

  • RTSP

  • RTP

  • TCP/IP

  • UDP

  • DHCP

  • Bonjour

• API :

  • ONVIF (Profile S, Profile G, Profile T)

  • ISAPI

  • SDK

Image :

• Image Settings :

  • Saturation, brightness, contrast, and sharpness adjustable
          by client software or web browser

• Wide Dynamic Range (WDR) : Digital WDR

Interface :

• Ethernet Interface : 1

  • RJ45 10 M/100 M self-adaptive Ethernet port

• Built-in Microphone : 1 built-in microphone

• On-board Storage :

  • Built-in memory card slot

  • Support microSD/microSDHC/microSDXC card

    • Up to 512 GB

• Built-in Speaker : 1 built-in speaker

Event

• Basic Event :

  • Motion detection

    • (Support alarm triggering by specified target type (human))

  • Video tampering alarm

  • Exception

• Linkage :

  • Upload to FTP/memory card

  • Notify surveillance center

  • Send email

  • Trigger capture

  • Audible warning

  • Auto-tracking lite

General :

• Power :

  • 12 VDC ± 25%, 0.75 A, max. 9 W

    • Ø5.5 mm coaxial power plug, reverse polarity protection

  • PoE : IEEE 802.3af, 36 V to 57 V, 0.2 A to 0.3 A, max. 10.5 W

• Camera dimension :

  • 163.9 mm × 185.8 mm × 131.9 mm (6.45" × 7.31" × 5.19")

• With package dimension :

  • 224 mm × 164 mm × 230 mm (8.82 × 6.46\" × 9.06\")"

• Camera weight : 600 g (1.32 lb.)

  • With package weight : 900 g (2.0 lb.)

• Material : Plastic

• Operating Condition :

  • -30 °C to 40 °C (-22 °F to 104 °F)

  • Humidity 90% or less (non-condensing)

• General Function :

  • Mirror

  • Password protection

  • Watermark

Approval :

• EMC :

  CE-EMC

  • EN 55032: 2015

  • EN 61000-3-2: 2019

  • EN 61000-3-3: 2013 + A1: 2019

  • EN 50130-4: 2011 + A1: 2014

• Safety :

  • CB :

    IEC 62368-1: 2014 + A11

  • CE-LVD : EN 62368-1: 2014/A11: 2017

• Environment :

  • CE-RoHS (2011/65/EU)

  • Reach (Regulation (EC) No 1907/2006)

• Protection : IP66 (IEC 60529-2013)
