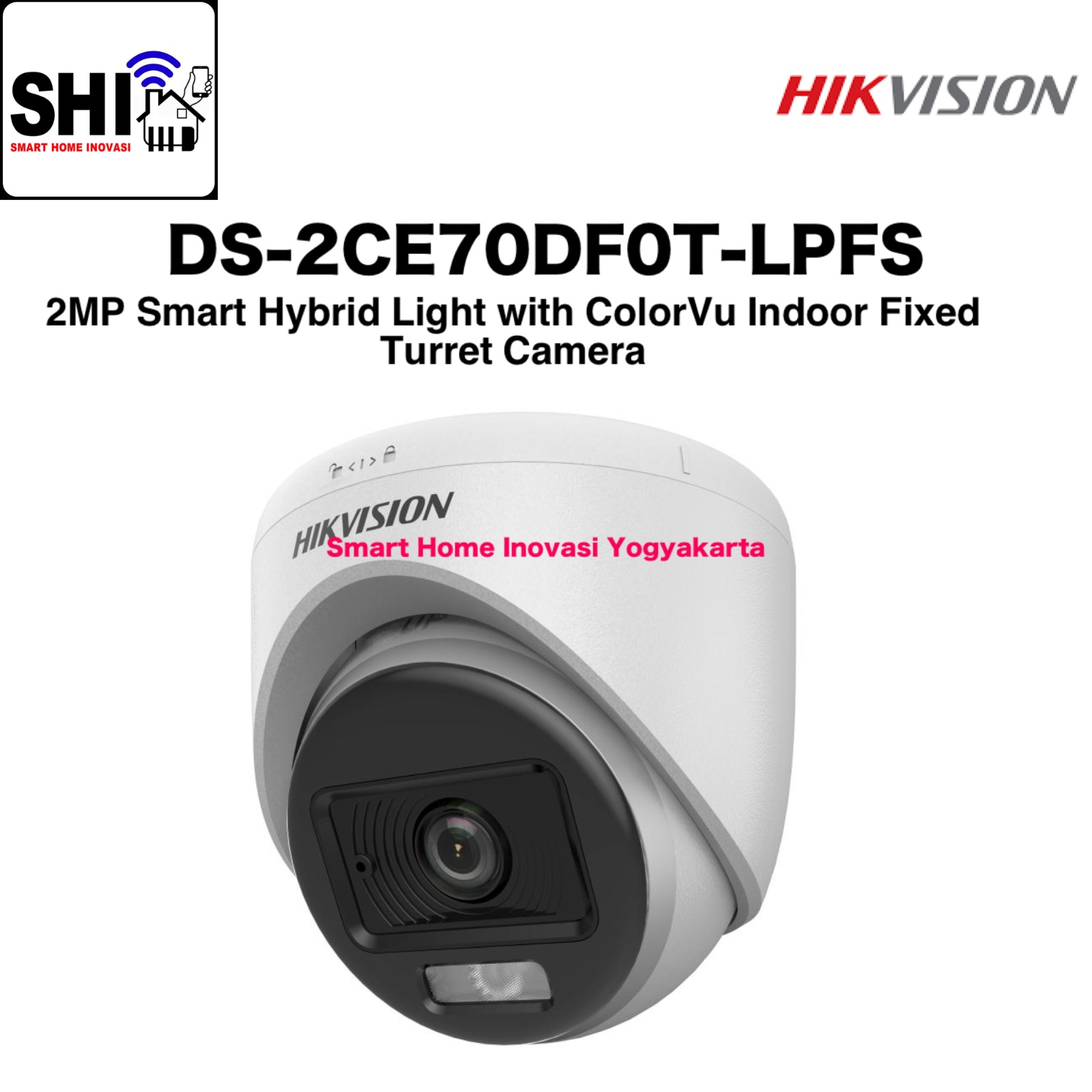

HIKVISION DS-2CE70DF0T-LPFS, 2MP Smart Hybrid Light with ColorVu Indoor Fixed Turret Camera

HIKVISION DS-2CE70DF0T-LPFS, 2MP Smart Hybrid Light with ColorVu Indoor Fixed Turret Camera

Overview :

• High quality imaging with 2 MP, 1920 × 1080 resolution

• 24/7 color imaging with F1.0 aperture

• Smart-Hybrid light, optimize your security with flexible lighting options

• 3D DNR technology delivers clean and sharp images

• 2.8 mm, 3.6 mm fixed focal lens

• Up to 20 m white light distance for bright night imaging

• Up to 20 m IR distance for bright night imaging

• High quality audio with audio over coaxial cable, built-in mic

• One port for four switchable signals (TVI/AHD/CVI/CVBS)

Spesifikasi :

Camera :

• Image Sensor : 2MP CMOS

• Max. Resolution : 1920 (H) × 1080 (V)

• Min. Illumination :

  • 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light

• Shutter Time :

  • PAL : 1/25 s to 1/50,000 s

  • NTSC : 1/30 s to 1/50,000 s

• Day & Night : ICR

• Angle Adjustment :

  • Pan : 0° to 360°

  • Tilt : 0° to 75°

  • Rotate : 0° to 360°

• Signal System : PAL/NTSC

Lens :

• Lens Type : 2.8 mm and 3.6 mm fixed focal lens

• Focal Length & FOV :

  • 2.8 mm,

    • Horizontal : 105°, Vertical : 56°, Diagonal : 126°

  • 3.6 mm,

    • Horizontal : 84°, Vertical : 46°, Diagonal : 98°

• Lens Mount : M12

Microphone

• Pickup Distance : In a radius of up to 5 m

• Amount : 1

Illuminator :

• Supplement Light Type : Smart, IR, White Light

• Supplement Light Range :

  • IR : Up to 20 m

  • White Light : Up to 20 m

Image :

• Image Parameters Switch : STD/HIGH-SAT/HIGHLIGHT

• Image Settings : Brightness, Sharpness, Anti-banding, AGC

• Frame Rate :

  • TVI : 1080p @25 fps/30 fps

  • CVI : 1080p @25 fps/30 fps

  • AHD : 1080p @25 fps/30 fps

  • CVBS : PAL/NTSC

• Day/Night Mode : Auto/Color

• Wide Dynamic Range (WDR) : Digital WDR

• Noise Reduction : 3D DNR/2D DNR

• Image Enhancement : DWDR, BLC, HLC, Global

• White Balance : Auto, Manual

Interface :

• Video Output : Switchable TVI/AHD/CVI/CVBS

General :

• Material : Plastic

• Power : 12 VDC ± 25%, max. 2.9 W,

  • *You are recommended to use one power adapter to
            supply the power for one camera.

• Dimension : Ø85.02 mm × 81.25 mm (Ø3.35" × 3.2")

• Approx. 155 g (0.34 lb.)

• Operating Condition :

  • -40 °C to 60 °C (-40 °F to 140 °F)

  • Humidity 90% or less (non-condensing)

• Communication : HIKVISION-C

• Language : English
