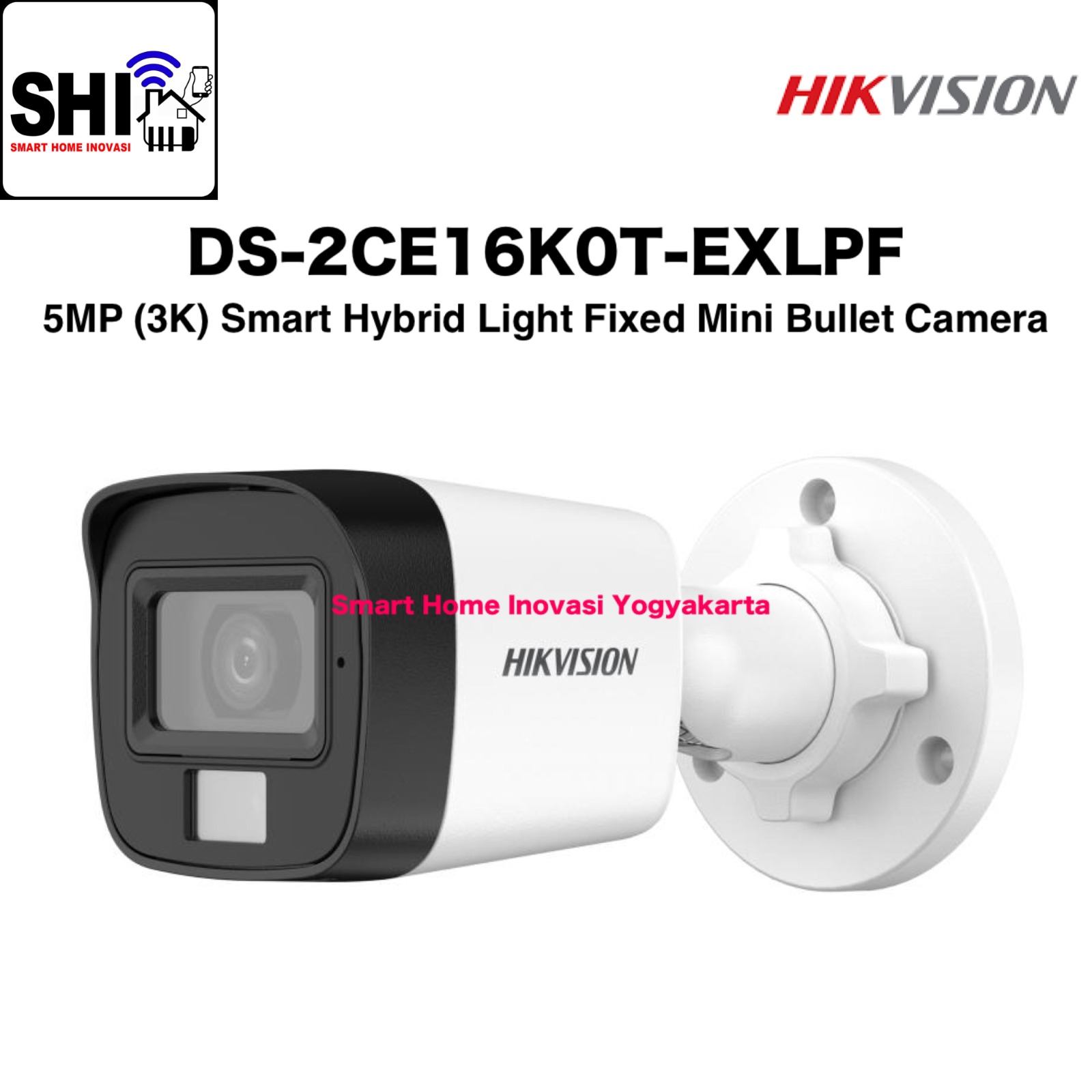

HIKVISION DS-2CE16K0T-EXLPF, 5MP (3K) Smart Hybrid Light Fixed Mini Bullet Camera
Rp1.00
HIKVISION DS-2CE16K0T-EXLPF, 5MP (3K) Smart Hybrid Light Fixed Mini Bullet Camera
Overview :
• High quality imaging with 3K, 2960 × 1665 resolution
• Smart-Hybrid light,
Optimize your security with flexible lighting options
• 2.8 mm, 3.6 mm fixed focal lens
• Up to 20 m IR distance for bright night imaging
• Up to 20 m white light distance for bright night imaging
• One port for 4 switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP67)
Spesifikasi :
Camera :
Image Sensor : 3K CMOS
Max. Resolution : 2960 (H) × 1665 (V)
Min. Illumination : 0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR
Shutter Time :
PAL : 1/25 s to 1/50,000 s
NTSC : 1/30 s to 1/50,000 s
Day & Night : ICR
Angle Adjustment :
Pan : 0 to 360°
Tilt: 0 to 90°
Rotate: 0 to 360°
Signal System : PAL/NTSC
Lens :
Lens Type : 2.8 mm, 3.6 mm fixed focal lens
Focal Length & FOV :
2.8 mm,
Horizontal : 101°, Vertical : 64°, Diagonal : 125°
3.6 mm,
Horizontal : 80°, Vertical : 51°, Diagonal : 98°
Lens Mount : M12
Illuminator :
Supplement Light Range
IR : Up to 20 m
White Light : Up to 20 m
Supplement Light Type : Smart, IR, White Light
Image :
Image Parameters Switch : STD/HIGH-SAT/HIGHLIGHT
Image Settings : Brightness, Sharpness, Smart IR
Frame Rate :
TVI :
3K @20 fps
4 MP @25 fps/30 fps
1080p @25 fps/30 fps
AHD : 5 MP @20 fps, 4 MP @25 fps/30 fps
CVI : 4 MP @25 fps/30 fps
CVBS : PAL/NTSC
Day/Night Mode : Auto/Color
Wide Dynamic Range (WDR) : Digital WDR
Image Enhancement : DWDR/BLC/HLC/HLS/Global
White Balance : Auto/Manual
AGC : Yes
Interface :
Video Output : Switchable TVI/AHD/CVI/CVBS
General :
Material : Plastic
Dimension : Ø70 mm × 138.8 mm (Ø2.76" x 5.46")
Max. 150 g (0.33 lb.)
Operating Condition :
-40 °C to 60 °C (-40 °F to 140 °F)
Humidity: 90% or less (non-condensation)
Communication : HIKVISION-C
Language : English
Power Supply : 12 VDC ± 25%, Max. 4.4 W
*You are recommended to use one power adapter to
supply the power for one camera.
Protection : IP67
