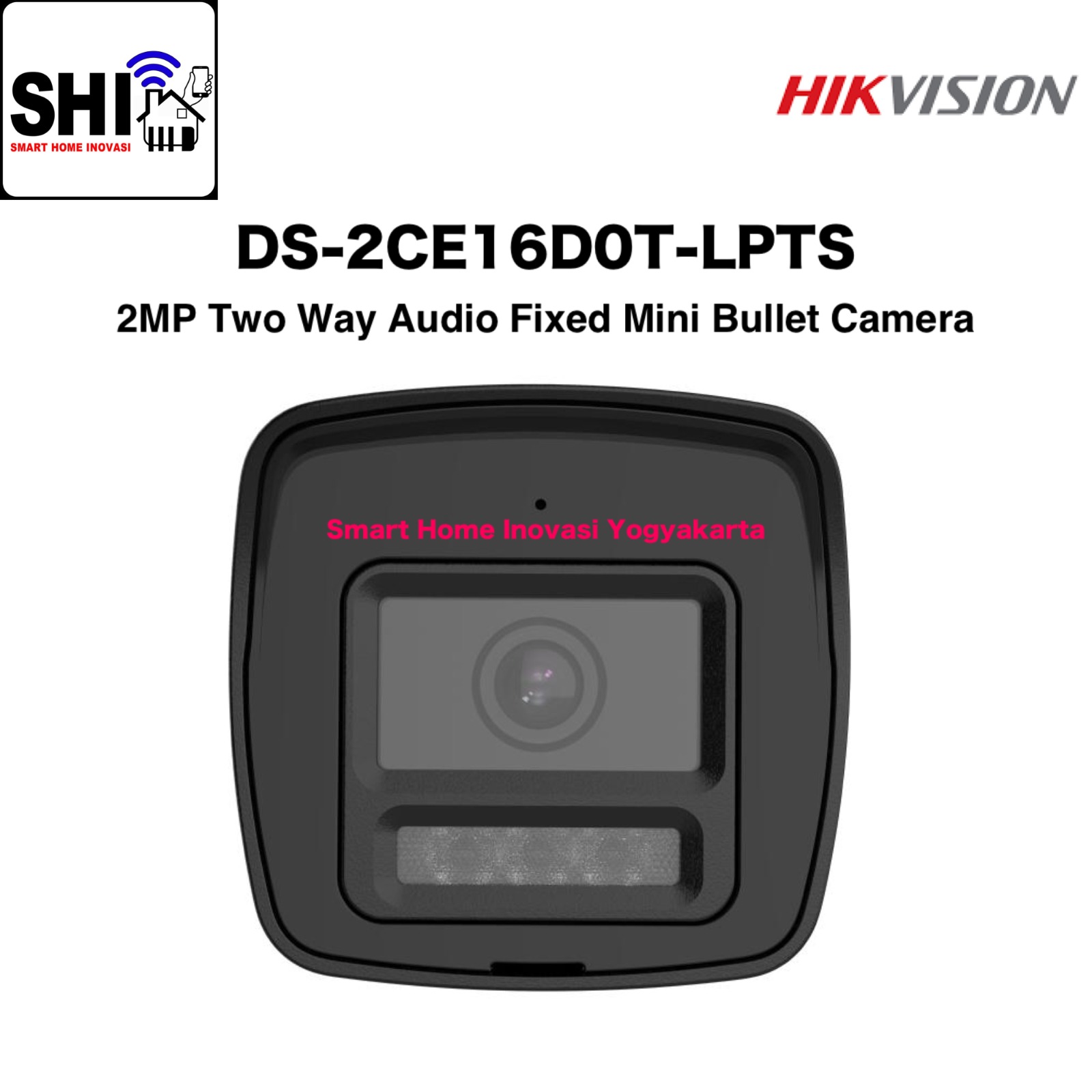

HIKVISION DS-2CE16D0T-LPTS, 2MP Two Way Audio Fixed Mini Bullet Camera Outdoor

HIKVISION DS-2CE16D0T-LPTS, 2MP Two Way Audio Fixed Mini Bullet Camera Outdoor

Overview :

• High quality imaging with 2 MP, 1920 × 1080 resolution

• 2.8 mm, 3.6 mm fixed focal lens

• Up to 25 m IR distance for bright night imaging

• Up to 20 m white light distance for bright night imaging

• Smart-Hybrid Light

• Optimize your security with flexible lighting options

• High quality audio with audio over coaxial cable

• Built-in mic, and built-in speaker

• Provide real-time communication via built-in two-way audio

• Water and dust resistant (IP67)

Spesifikasi :

Camera :

• Image Sensor : 2MP CMOS

• Max. Resolution : 1920 (H) × 1080 (V)

• Min. Illumination : 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR

• Shutter Time :

  • PAL : 1/12.5 s to 1/50,000 s

  • NTSC : 1/15 s to 1/50,000 s

• Day & Night : ICR

• Angle Adjustment :

  • Pan : 0° to 360°

  • Tilt : 0° to 90°

  • Rotate : 0° to 360°

• Signal System : PAL/NTSC

Lens :

• Lens Type : 2.8 mm, 3.6 mm fixed lens

• Focal Length & FOV :

  • 2.8 mm,

    • Horizontal : 101°, Vertical : 56°, Diagonal : 118°

  • 3.6 mm,

    • Horizontal : 78°, Vertical : 42°, Diagonal : 92°

• Lens Mount : M12

Microphone :

• Pickup Distance : In a radius of up to 5 m

• Amount : 1

Speaker :

• Rated Power : 2 W

• Speaker Range : In a radius of up to 5 m

Illuminator :

• Supplement Light Type : Smart, IR, White Light

• Supplement Light Range :

• IR : Up to 25 m,White Light : Up to 20 m

Image :

• Image Settings :

  • Anti-banding, Brightness, Sharpness, Smart IR

• Frame Rate :

  • TVI : 1080p @25 fps/30 fps

• Day/Night Mode : Auto/Color

• Wide Dynamic Range (WDR) : Digital WDR

• Image Enhancement : DWDR, BLC, HLC, Global, HLS

• Noise Reduction : 3D DNR

• White Balance : Auto, Manual

Audio :

• Audio Function :

  • Echo Cancellation

  • AI Noise Reduction

  • Automatic Gain Control

Interface :

• Video Output : 1 HD analog output

General :

• Power : 12 VDC ± 25%, max.5.7 W,

  • *You are recommended to use one power adapter to
           supply the power for one camera.

• Material : Plastic

• Dimension :

  • 179 mm × 66 mm × 69.1 mm (7.05" × 2.6" × 2.72")

• Approx. 245 g (0.54 lb.)

• Operating Condition :

  • -40 °C to 60 °C (-40 °F to 140 °F)

  • Humidity 90% or less (non-condensing)

• Communication : HIKVISION-C

• Language : English

•  Protection : IP67
