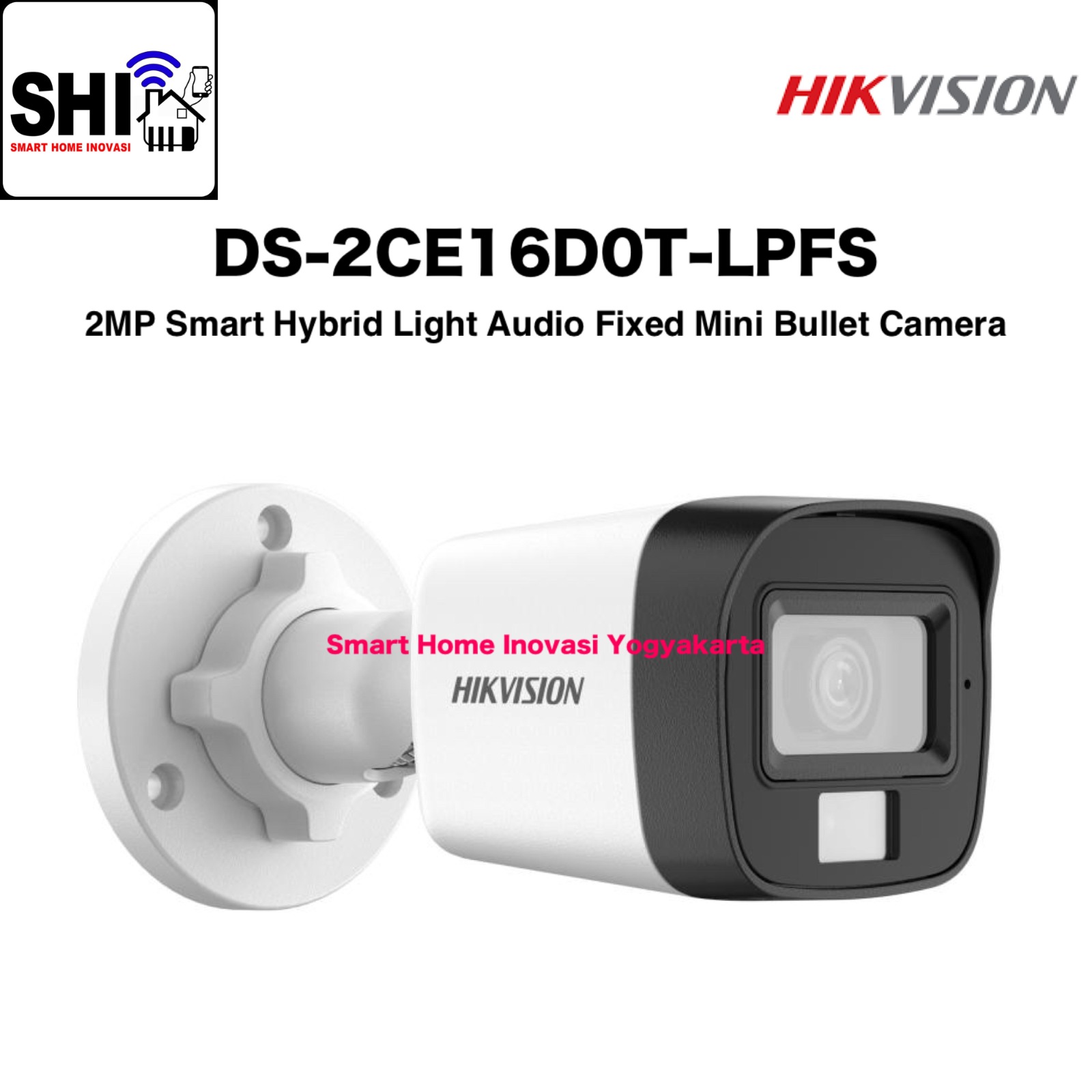

HIKVISION DS-2CE16D0T-LPFS, 2MP Smart Hybrid Light Audio Fixed Mini Bullet Camera

HIKVISION DS-2CE16D0T-LPFS, 2MP Smart Hybrid Light Audio Fixed Mini Bullet Camera

Overview :

• High quality imaging with 2 MP, 1920×1080 resolution

• 2.8 mm, 3.6 mm fixed focal lens

• Up to 25 m IR distance for bright night imaging

• Up to 20 m white light distance for bright night imaging

• One port for four switchable signals (TVI/AHD/CVI/CVBS）

• High quality audio with audio over coaxial cable, built-in mic

• Water and dust resistant (IP67)

• Smart-Hybrid light,

• Optimize your security with flexible lighting options

Spesifikasi :

Camera :

• Image Sensor : 2MP CMOS

• Max. Resolution : 1920 (H) × 1080 (V)

• Min. Illumination : 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR

• Shutter Time :

  • PAL : 1/25 s to 1/50, 000 s

  • NTSC : 1/30 s to 1/50, 000 s

• Day & Night : ICR

• Angle Adjustment :

  • Pan : 0 to 360°

  • Tilt : 0 to 90°

  • Rotation : 0 to 360°

• Signal System : PAL/NTSC

Lens :

• Lens Type : 2.8 mm, 3.6 mm fixed focal lens

• Focal Length & FOV

  • 2.8 mm,

    • Horizontal : 101°, Vertical : 56°, Diagonal : 118°

  • 3.6 mm,

    • Horizontal : 78°, Vertical : 42°, diagonal : 92°

• Lens Mount : M12

Microphone :

• Pickup Distance : In a radius of up to 5 m

• Amount : 1

Illuminator :

• Supplement Light Type : Smart, IR, White Light

• Supplement Light Range :

• • IR : Up to 25 m

• • White Light : Up to 20 m

Image :

• Image Settings : Brightness, Sharpness, Smart IR

• Frame Rate :

  • TVI : 1080P @ 30 fps, 1080P @ 25 fps

  • AHD : 1080P @ 30 fps, 1080P @ 25 fps

  • CVI : 1080P @ 30 fps, 1080P @ 25 fps

  • CVBS : PAL/NTSC

• Day/Night Mode : Auto/Color

• Wide Dynamic Range (WDR) : Digital WDR

• Image Enhancement : DWDR/BLC/HLC/Global

• White Balance : Auto/Manual

• AGC : Yes

Interface :

• Video Output : Switchable TVI/AHD/CVI/CVBS

General :

• Material : Plastic

• Dimension :

  • 138.8 mm × 60.9 mm × 57.9 mm (5.47" × 2.4 " × 2.3")

• Approx. 155 g (0.34 lb.)

• Operating Condition :

  • -40 °C to 60 °C (-40 °F to 140 °F)

  • Humidity: 90% or less (non-condensation)

• Communication : HIKVISION-C

• Language : English

• Power Supply : 12 VDC ± 25%

  •  *You are recommended to use one power adapter to
             supply the power for one camera.

• Consumption : Max. 3.3 W

• Protection : IP67
