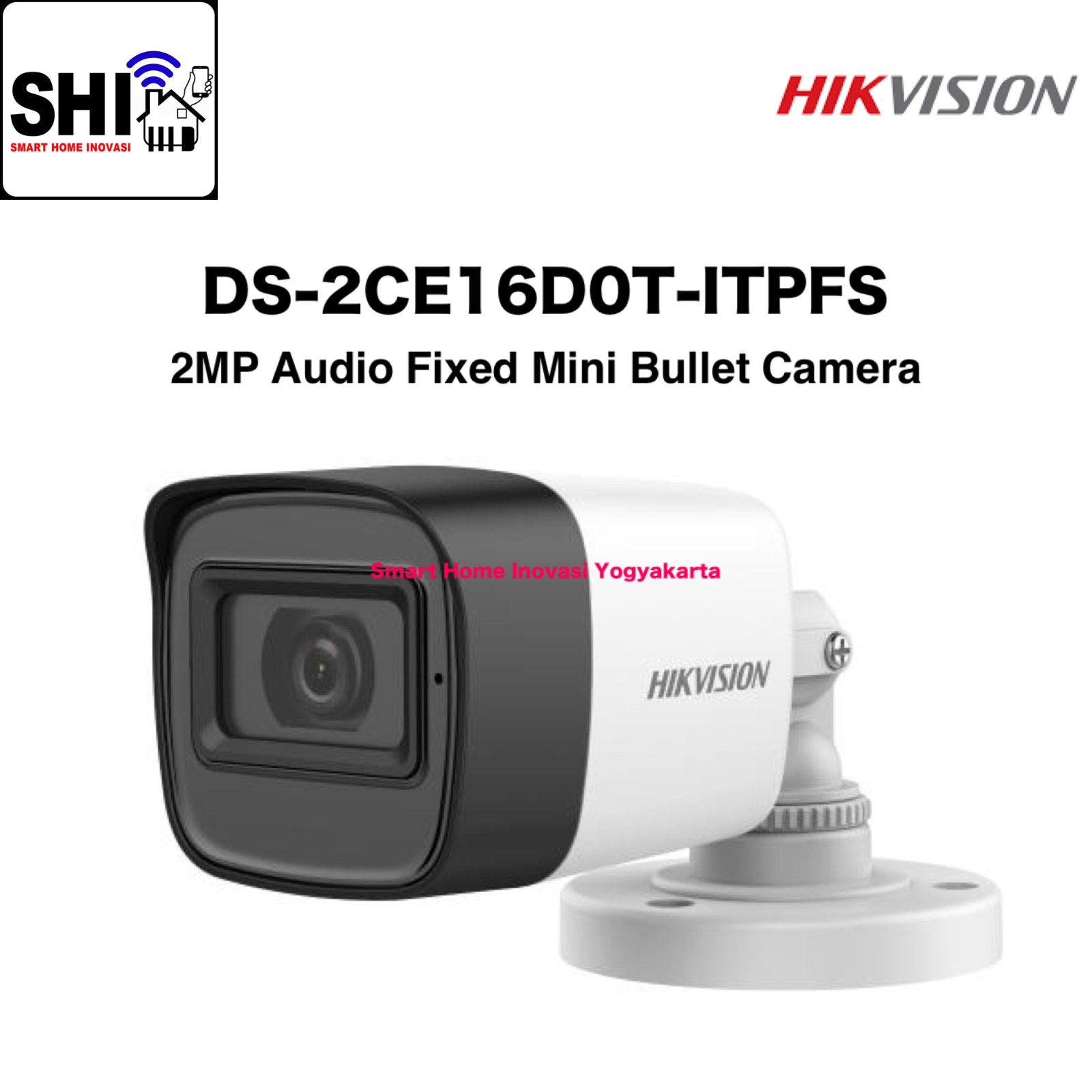

HIKVISION DS-2CE16D0T-ITPFS, 2MP Audio Fixed Mini Bullet Camera

HIKVISION DS-2CE16D0T-ITPFS, 2MP Audio Fixed Mini Bullet Camera

Overview :

• 2 MP coaxial audio camera

• Enhancing safety with discreet and economical built-in microphone

• Transmits audio over the coaxial cable

• EXIR 2.0: advanced infrared technology with 25 m IR distance

• Water and dust resistant (IP67)

• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

SPESIFIKASI :

Camera :

• Image Sensor : 2MP CMOS

• Max. Resolution : 1920 (H) × 1080 (V)

• Min. Illumination : 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR

• Shutter Time :

  • PAL : 1/25 s to 1/50, 000 s

  • NTSC : 1/30 s to 1/50, 000 s

• Day & Night : ICR

• Angle Adjustment :

  • Pan : 0 to 360°

  • Tilt : 0 to 180°

  • Rotation : 0 to 360°

• Signal System : PAL/NTSC

Lens :

• Lens Type : 2.8 mm, 3.6 mm, 6 mm fixed lens

• Focal Length & FOV :

  • 2.8 mm :

    • Horizontal : 106.4°, Vertical : 57.9°, Diagonal : 124.6°

  • 3.6 mm :

    • Horizontal : 79.6°, Vertical : 43.5°, Diagonal : 93.7°

  • 6 mm :

  • Horizontal : 51.9°, Vertical : 30°, Diagonal : 58.8

• Lens Mount : M12

Image :

• Image Parameters Switch : STD/HIGH-SAT

• Image Settings : Brightness, Sharpness, Mirror, Smart IR

• Frame Rate :

  • TVI : 1080P@30fps, 1080P@25fps

  • AHD : 1080P@30fps, 1080P@25fps

  • CVI : 1080P@30fps, 1080P@25fps

  • CVBS : PAL/NTSC

• Day/Night Mode : Auto/Color/BW (Black and White)

• Wide Dynamic Range (WDR) : Digital WDR

• Image Enhancement : Yes

• White Balance : Auto/Manual

• AGC : Support

Interface :

• Video Output : Switchable TVI/AHD/CVI/CVBS

General :

• Material : Plastic

• Dimension :

  • 58 mm × 61 mm × 158.6 mm (2.28" × 2.40" × 6.42")

• Approx. 160 g (0.35 lb.)

• Operating Condition :

  • -40 °C to 60 °C (-40 °F to 140 °F)

  • Humidity: 90% or less (non-condensation)

• Communication : HIKVISION-C

• Language : English

• Power Supply : 12 VDC ± 25%

• Consumption : Max. 2.7 W

• IR Range : Up to 25 m

• Protection : IP67
