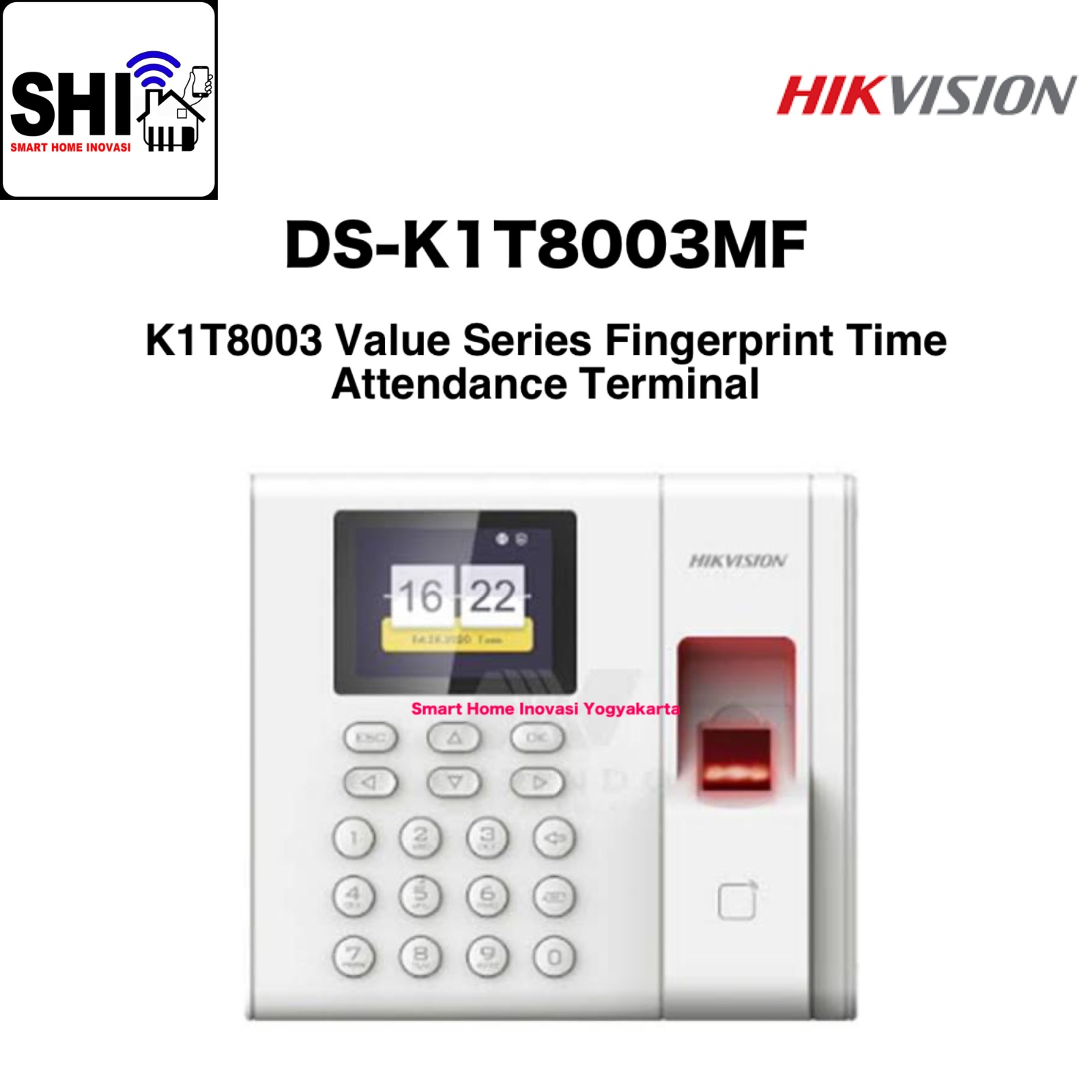

HIKVISION Access Control DS-K1T8003MF, Value Series Fingerprint Time Attendance Terminal
Mesin absensi sidik jari seri Value
Rp1.00
HIKVISION Access Control DS-K1T8003MF, Value Series Fingerprint Time Attendance Terminal
Overview :
2.4-inch LCD Display Fingerprint Access Control Terminal, Built-in Mifare card reading module
Communication: TCP/IP，ISUP5.0 ； 1000 users, 1000 fingerprints，1000 card and Max. 100,000 event records
Support Access Control and Time Attendance Function, Optical Fingerprint Module
Remotely opens door via Hik-Connect mobile client；Tamper alarm.
SPESIFIKASI
Display :
Screen size : 2.4-inch
Type : LCD-TFT display screen
Audio :
Audio output : 1 loudspeaker, 1 buzzer
Network :
Wired network : TCP/IP, 10/100Mbps, self-adaptive
Communication protocol : TCP/IP, ISUP
Interface :
Network interface : 1
Lock control : 1
Exit button : 1
Door contact input : 1
TAMPER : 1
USB : 1
Capacity :
Card capacity : 1000
Fingerprint capacity : 1000
Event capacity : 100.000
Authentication :
Card type : M1 card
Card reading distance : 0 to 5 cm
Fingerprint module : Optical fingerprint module
Fingerprint comparing mode : 1:1 and 1:N
Fingerprint recognition duration : ＜ 1 s
General :
Power Supply : 12 VDC/1 A
Working temperature : -10 °C to +55 °C (14 °F to +131 °F)
Working humidity : 10% to 90% (no condensing)
Color : Silver
Dimensions : 140 mm × 155 mm × 30 mm (5.51" × 6.01" × 1.18")
Self Service Reports (SSR) : Stand-alone operation, Calculate attendance data, Export reports via USB interface
Installation : Wall mounting
Gross weight : 0.78 kg (1.72 lbs)
Net weight : 0.22 kg (0.48 lbs)
