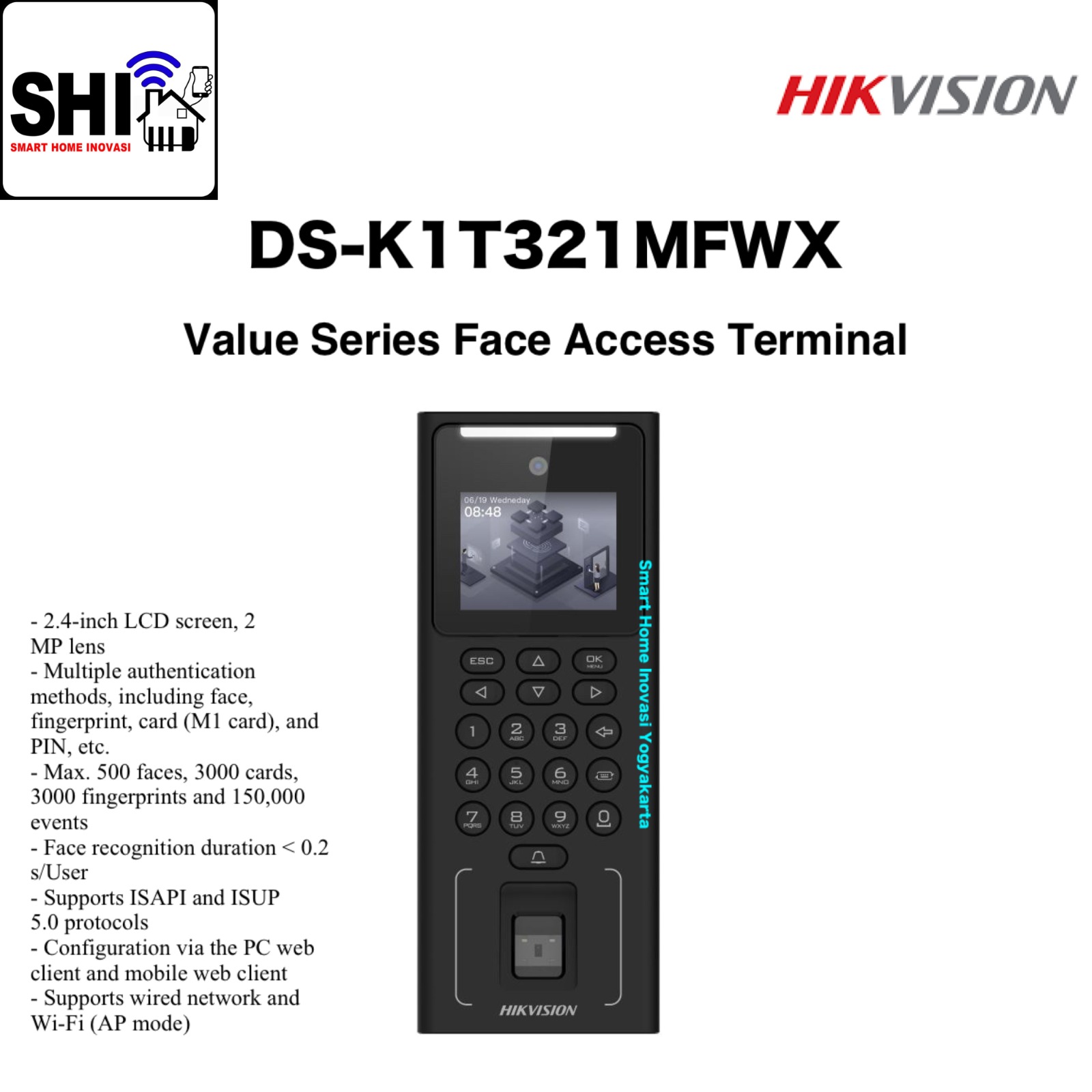

HIKVISION Access Control DS-K1T321MFWX, Value Series Face Access Terminal

HIKVISION Access Control DS-K1T321MFWX, Value Series Face Access Terminal

Overview :

• 2.4-inch LCD screen, 2 MP lens

• Multiple authentication methods, including :

  • Face, fingerprint, card (M1 card), and PIN, etc.

• Max. 500 faces, 3000 cards, 3000 fingerprints and
       150,000 events

• Face recognition duration < 0.2 s/User

• Supports ISAPI and ISUP 5.0 protocols

• Configuration via the PC web client and mobile web client

• Supports wired network and Wi-Fi (AP mode)

• Supports wiring with secure door control unit or
        card reader via RS-485

SPESIFIKASI :

Display

• Screen size : 2.4 inch

• Type : LCD

Video :

• Lens : 1

• Resolution : 2MP (video stream: 720P)

• FOV : HFOV = 25°; VFOV = 43°

Network :

• Wired network : Support

• Wi-Fi : Support, 2.4 G, 802.11b/g/n

Interface :

• Network interface : 1 RJ-45, 10/100 M self-adaptive

• Lock control : 1

• Exit button : 1

• Door contact input : 1

• TAMPER : 1

• RS-485 : 1 RS-485 (Half duplex, HIKVISION)

• USB : 1

Authentication :

• Card type : M1 card

General :

• Power supply : 12 VDC

• Power consumption : ≤ 6 W

• Working temperature : -10 °C to 55 °C (14 °F to 131 °F)

• Working humidity : 0 to 90% (No condensing)

• Language :

  • English, Spanish (South America), Arabic, Thai, Indonesian,

  • Russian, Vietnamese, Portuguese (Brazil), Korean, Japanese

• Keypad : Support

Function :

• Face anti-spoofing : Support

• Hik-Partner Pro : Support

• Face recognition : Support
