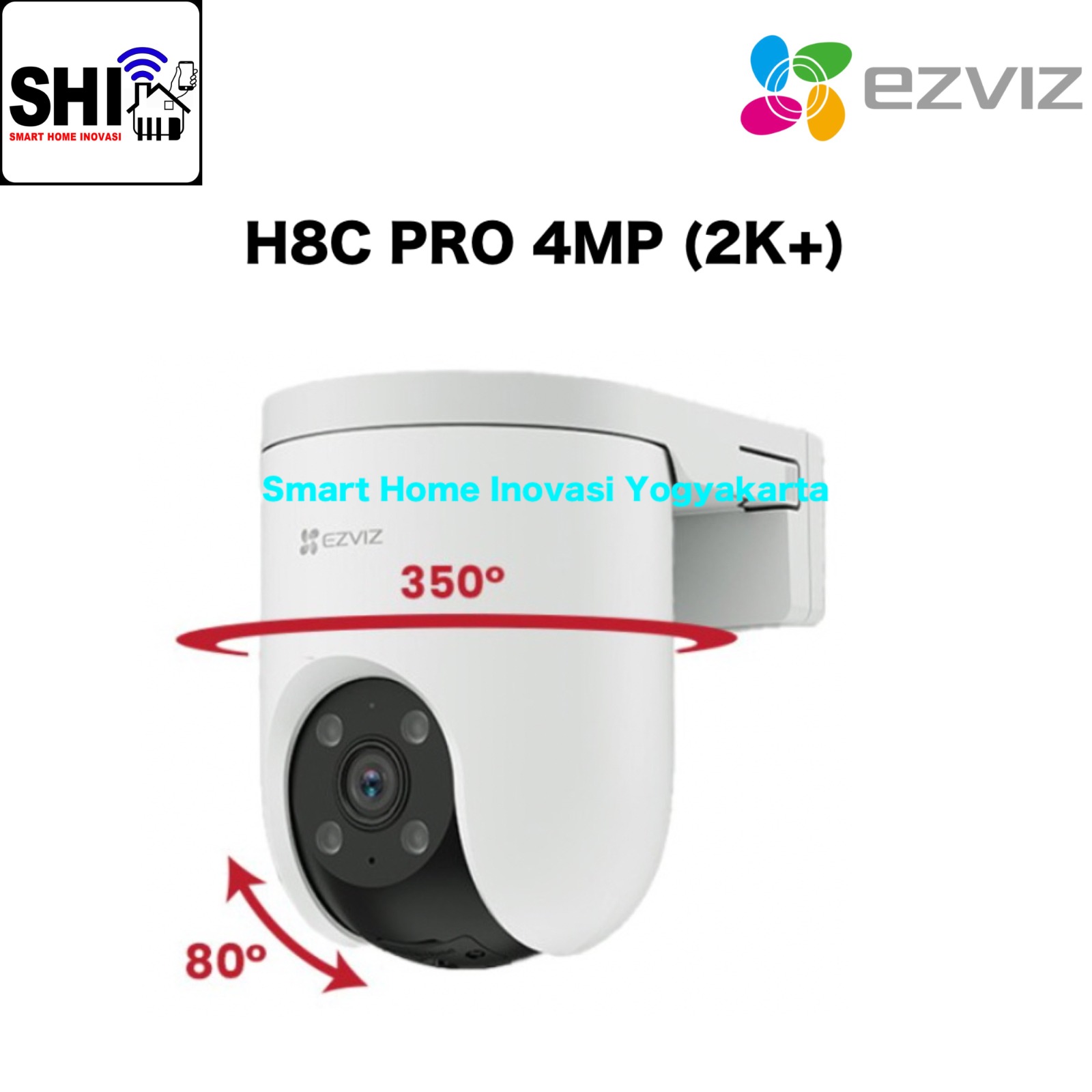

EZVIZ IP Camera PTZ Outdoor H8C PRO 4MP (2K+)

EZVIZ IP Camera PTZ Outdoor H8C PRO 4MP (2K+)

• Model : CS-H8c Pro (2K⁺)

• Image sensor : 1/2.7" Progressive Scan CMOS

• Shutter Speed : Self-adaptive shutter

• Lens :

  • 4mm @ F2.0, viewing angle :

    • 44° (Vertical), 83° (Horizontal), 100° (Diagonal)

  • 6mm @ F2.0, viewing angle :

    • 28° (Vertical), 50° (Horizontal), 59° (Diagonal)

• PT Angle : Pan: 350°, Tilt: 80°

• Minimum Illumination :

  • 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR

    • (*data is obtained from EZVIZ laboratories)

• Lens Mount : M12

• Day & Night : IR-cut filter with auto-switching

• DNR : 3D DNR

• WDR : Digital WDR

• Black & White Night : 30m / 98ft

• Max Resolution 2560 × 1440

• Video Compression : H.265 / H.264

• H.265 Type : Main Profile

• Video Bit Rate : Ultra-HD; Hi-Def; Standard. Adaptive bit rate.

• Audio Bit Rate : Self-Adaptive

• Wi-Fi Standard : IEEE802.11b, 802.11g, 802.11n

• Frequency Range : 2.4 GHz ~ 2.4835 GHz

• Channel Bandwidth : Supports 20MHz

• Security : WPA-PSK/WPA2-PSK

• Transmission Rate :

  • 11b 11 Mbps, 11g 54 Mbps, 11n: 72 Mbps

• Wi-Fi Pairing : AP paring

• Protocol : EZVIZ cloud proprietary protocol

• Interface Protocol : EZVIZ cloud proprietary protocol

• Storage : Micro SD card slot (Max. 256G)

• Power : Micro USB

• Wired Network :

  • RJ45 × 1 (10M/100M self-adaptive Ethernet port)

• Standard : IEEE802.11b, 802.11g, 802.11n

• Smart Alarm :

  • AI-Powered Human Shape Detection

  • AI-Powered Vehicle Shape Detection

• Auto Tracking : Supports

• Customized Alert Area : Supports

• Two-way Talk : Supports

• General Function :

  • Anti-Flicker

  • Dual-Stream

  • Heart Beat

  • Password Protection

  • Watermark

• Local Storage : Supports MicroSD Card (Up to 512 GB)

• Cloud Storage : EZVIZ Cloud Storage

• Operating Conditions :

  • -30°C to 50°C ( -22 °F to 122 °F )

  • Humidity 95% or less (non-condensing)

• IP Grade : Weatherproof Design

• Power Supply : DC 12V/1A

• Dimensions :

  • 100 × 136 × 140mm (3.94 × 5.35 × 5.51 inch)

• Packaging Dimensions :

  • 140 × 140 × 192mm (5.51 × 5.51 × 7.56 inch)

• Net Weight : 539.7g;

  • With Package : 823.6g For EU Standard Version

In the Box :

• H8c Pro 2K⁺ Camera

• Drill Template

• Screw Kit

• Waterproof Kit

• Power Adapter

• Regulatory Information

• Quick Start Guide

Certifications : CE / UL / RoHS / WEEE / REACH
