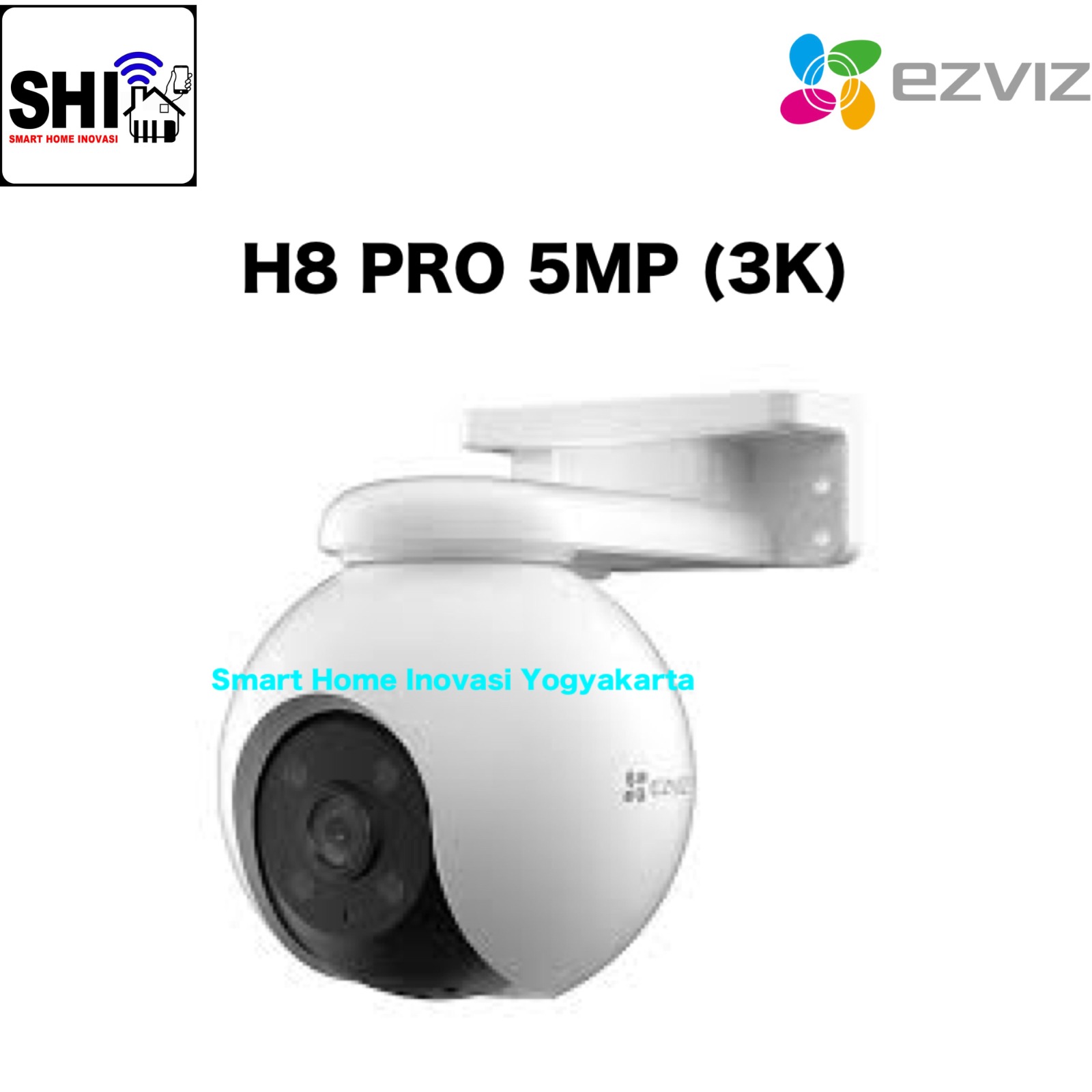

EZVIZ IP Camera PTZ Outdoor H8C PRO 5MP (3K)

EZVIZ IP Camera PTZ Outdoor H8C PRO 5MP (3K)

• Model : CS-H8c Pro (3K)

Camera :

• Image Sensor : 1/2.7" Progressive Scan CMOS

• Shutter Speed : Self-adaptive shutter

• Lens :

  • 4mm@ F1.6, viewing angle :

    • 48° (Vertical), 91° (Horizontal), 108° (Diagonal)

  • 6mm@ F1.6, viewing angle :

    • 30° (Vertical), 56° (Horizontal), 66° (Diagonal)

• PT Angle Pan : 350°, Tilt: 80°

• Minimum Illumination :

  • 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR

    • (*data is obtained from EZVIZ laboratories)

• Lens Mount : M12

• DNR : 3D DNR

• WDR : Digital WDR

• Black & White Night : 30m / 98ft

• Video & Audio

• Max Resolution : 2880*1620

• Frame Rate : Max:30fps;

  • Self-Adaptive during network transmission

• Video Compression : H.265 / H.264

• H.265 Type : Main Profile

• Video Bit Rate : Ultra-HD; Hi-Def; Standard. Adaptive bit rate.

• Audio Bit Rate : Self-Adaptive

Network :

• Wi-Fi Standard : IEEE802.11b, 802.11g, 802.11n

• Frequency Range : 2.4 GHz ~ 2.4835 GHz

• Channel Bandwidth : Supports 20MHz

• Security : WPA-PSK/WPA2-PSK

• Transmission Rate :

  • 11b 11 Mbps, 11g 54 Mbps, 11n: 72 Mbps

• Wi-Fi Pairing : AP paring

• Protocol : EZVIZ Cloud Proprietary Protocol

• Interface Protocol : EZVIZ Cloud Proprietary Protocol

• Wired Network :

  • RJ45 × 1 (10M / 100M Adaptive Ethernet Port)

Functions :

• Smart Alarm : AI-Powered Human / Vehicle Shape Detection

• Auto Tracking : Supports

• Customized Alert Area : Supports

• Two-way Talk : Supports

• General Function :

  • Anti-Flicker

  • Dual-Stream

  • Heart Beat

  • Password Protection

  • Watermark

Storage :

• Local Storage : Supports microSD Card (Up to 512 GB)

• Cloud Storage : Supports EZVIZ CloudPlay storage

  • (Subscription required)

General :

• Operating Conditions :

  • -30°C to 50°C ( -22 °F to 122 °F )

  • Humidity 95% or less (non-condensing)

• IP Grade : Weatherproof Design

• Power Supply : DC 12V/1A

• Dimensions :

  • 100 × 136 × 140mm (3.94 × 5.35 × 5.51 inch)

• Packaging Dimensions :

  • 140 × 140 × 192mm (5.51 × 5.51 × 7.56 inch)

Weight :

• Net Weight : 539.7g

• With Package: 823.6g For EU Standard Version

In the Box :

• H8c Pro 3K Camera

• Drill Template

• Screw Kit

• Waterproof Kit

• Power Adapter

• Regulatory Information

• Quick Start Guide

Certifications : CE / UL / RoHS / WEEE / REACH
