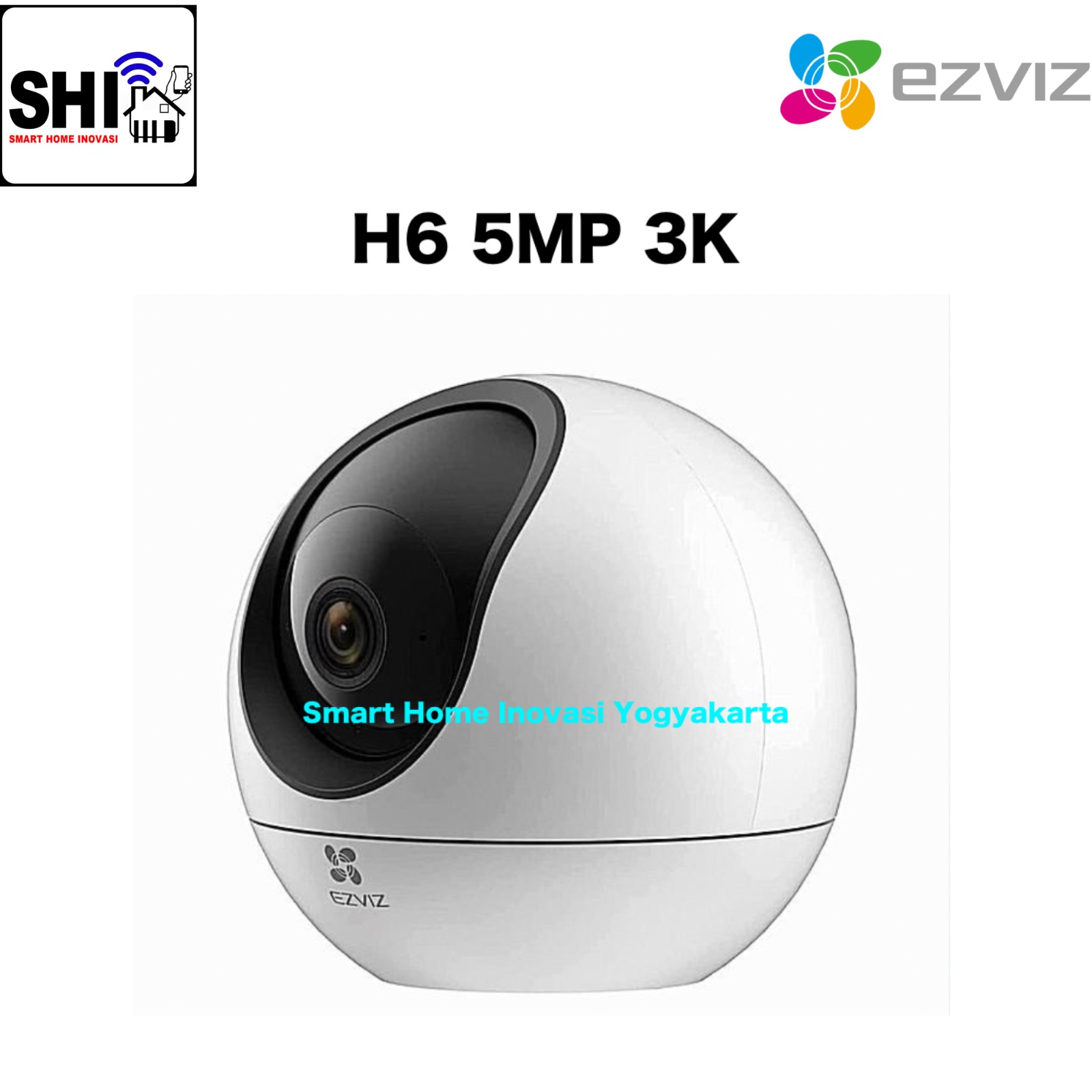

EZVIZ IP Camera PTZ Indoor H6 5MP (3K)

EZVIZ IP Camera PTZ Indoor H6 5MP (3K)

• Model : CS-H6-R100-1J5WF

• Image sensor : 1/2.7" Progressive Scan CMOS

• Shutter Speed : Self-adaptive shutter

• Lens : 4mm@ F1.6,

  • View angle : 87° (Horizontal), 53° (Vertical), 104°(Diagonal)

• PT Angle : Pan: 353° , Tilt: 133°

• Minimum Illumination :

  • 0.51Lux @(F1.6, AGC ON), 0 Lux with IR

• Lens Mount : M12

• Day & Night : IR-cut filter with auto-switching

• DNR : 3D DNR

• WDR : Digital WDR

• BLC : Supports

• Night Vision : 10 m

• Max. Resolution : 2880 × 1620

• Frame Rate : Max:25fps;

  • Self-Adaptive during network transmission

• Video Compression : H.265 / H.264

• Video Bit Rate : Ultra-HD; HD; Standard. Adaptive bit rate.

• Audio Bit Rate : Self-Adaptive

• Max. Bitrate : 4 Mbps

• Wi-Fi Standard :

  • IEEE802.11a, 802.11b, 802.11g, 802.11n, 802.11ac

• Frequency Range :

  • 2.4G : 2400~2483.5 MHz

  • 5G : 5170~5250 MHz, 5735~5835 MHz

• Channel Bandwidth : Supports 40 MHz

• Security : 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK

• Transmission Rate :

  • 11b 11Mbps

  • 11g 54Mbps

  • 11nHT20 MCS7

  • 11nHT40 MCS7

  • 11a 54Mbps

  • 11nHT20 MCS7

  • 11nHT40 MCS7

• Wi-Fi Pairing : AP pairing

• Protocol : EZVIZ cloud proprietary protocol

• Interface Protocol : EZVIZ cloud proprietary protocol

• Wired Network :

  • RJ45 × 1 (10M / 100M Adaptive Ethernet Port)

• Local Storage : Micro SD card slot (Max. 512G)

• Cloud Storage : EZVIZ Cloud Storage

• Smart Alarm :

  • AI-Powered Human Shape Detection

  • Pet Detection

  • Waving-Hand Detection

  • Voice Activity Detection

• Customized Alert Area : Supports

• Two-Way Talk : Supports ( Double Mic )

• General Function :

  • Anti-Flicker

  • Dual-Stream

  • Heart Beat

  • Mirror Image

  • Password Protection

  • Watermark

• Operating Conditions :

  • 10°C to 45°C ( 14°F to 113 °F ),

  • Humidity 95% or less (non-condensing)

• Power Supply : DC 5V/2A（Type-C)

• Power Consumption : Max. 8W

• Product Dimensions :

  • 115.5 × 116 × 160 mm (4.55 × 4.57 × 6.30 inch)

• Packaging Dimensions :

  • 116 × 116 × 164 mm (4.57 × 4.57 × 6.46 inch)

• Weight (With Package) : 487 g (17.18 oz)

• Net Weight : 255 g (8.99 oz)

In the Box :

• H6 Camera

• Base

• Power Cable

• Power Adapter

• Drill Template

• Screw Kit

• Quick Start Guide

• Regulatory Information

Certifications : CE / UKCA / UL / WEEE / RoHS / REACH
