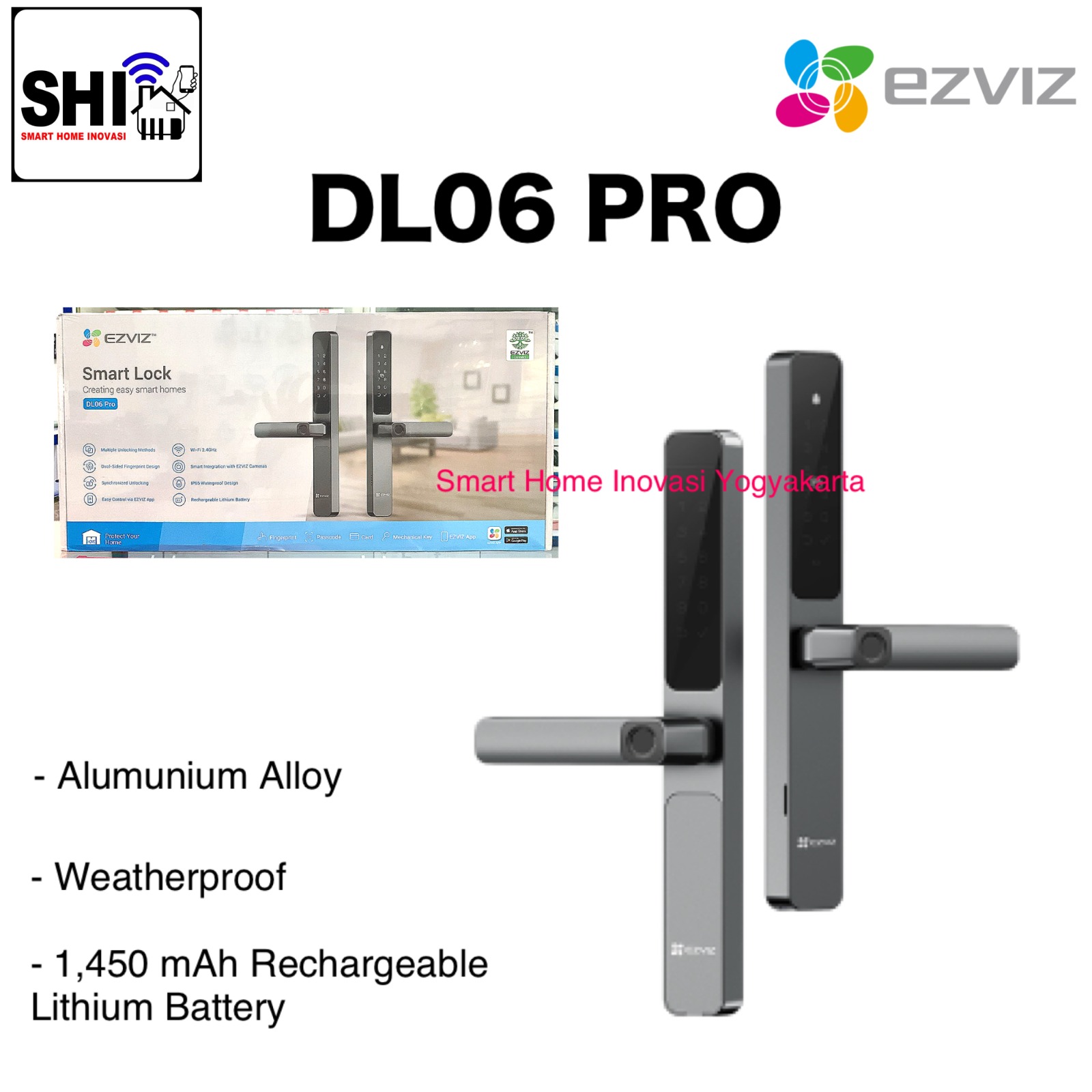

EZVIZ Smart Doorlock Aluminium with Handle DL06 Pro

EZVIZ Smart Doorlock Aluminium with Handle DL06 Pro

• Model CS-DL06-R101-WBCP-GR(M)

Material and Specification :

• Panel Material : Aluminum alloy

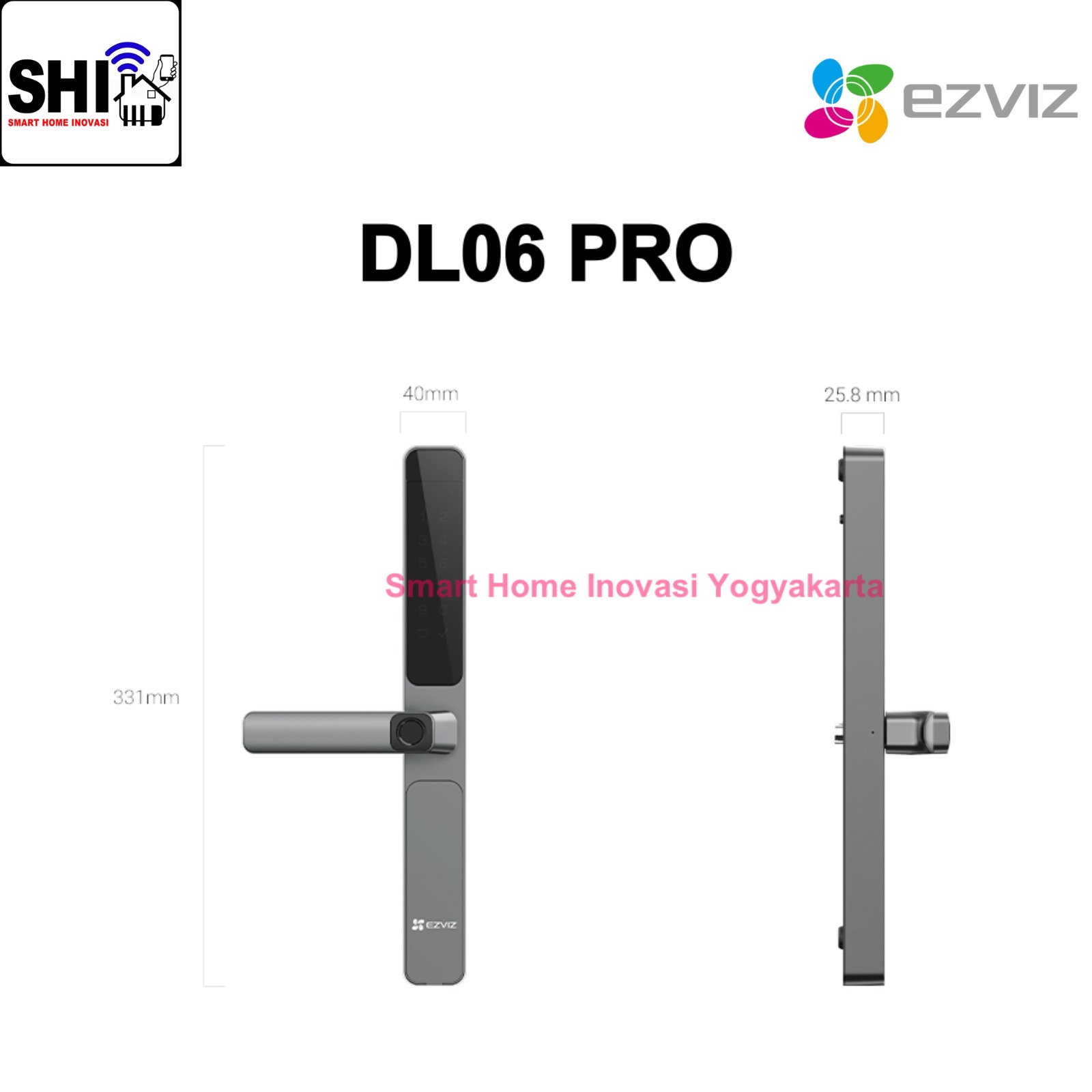

• Panel Size : 331 × 40 × 25.8 mm

• Color : Metallic grey

• Lock Body Type : Lift-up lock body

• Lock Cylinder : 2885 / 3585

• Weatherproof : IP65 (front & rear Panel)

• Emergency Charging : Type-C

• Working Power : 1,450 mAh Rechargeable Lithium Battery

Technical Specification :

• Unlocking Method :

  • Fingerprint

  • Passcode

  • Proximity card

  • Mechanical key

  • Bluetooth remote control

  • Bluetooth key via EZVIZ App

  • Temporary codes

  • Remote unlock

• User Capacity : 50 pcs

• Fingerprint Capacity : 50 pcs

• Passcode Capacity : 50 pcs

• Card Capacity : 50 pcs

• Communication Methods : 2.4GHz Wi-Fi, Bluetooth

• Temporary Access Codes : Supports

• Anti-Peeping Codes : Supports, Max. 20 digits

• Low Battery Warning : Supports

• Privacy Mode : Supports

• User Management : Supports

• Real Time Notification : Supports

• Anti-Test Locking : Supports,

  • enter error 5 times within 5 min, locking 3 min.

• Anti-Tamper Alarm : Supports

• Remote Control : Supports

• Supported Door Thickness : 30-110 mm

• Working Temperature : -25°C~70°C

• Operating Humidity : 10%~95%

In the Box :

• DL06 Pro Front Panel

• DL06 Pro Rear Panel

• Hole Templet

• Lock Body

• Standard Screw Bag

• Lithium Battery

• Mechanical Key × 2

• Square Rod

• Proximity Card × 2

• Screwdriver

• Regulatory Information

• Quick Start Guide

Certifications :

• CE (EMC / LVD / RED / ROHS) / REACH SVHC / WEEE
