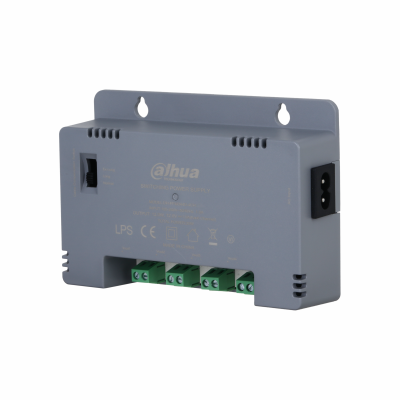

DAHUA Power Supply 4 Chanel DH-PFM344D-4CH- EN
Rp1.00
DAHUA Power Supply 4 Chanel DH-PFM344D-4CH- EN
Function :
Input Voltage : 100 VAC–240 VAC
Output Voltage :
Normal : 12 VDC
Long : 13.5 VDC
Ex-Long : 15 VDC
Rated Output Current :
Normal : 2.5 A
Long : 2.25 A
Ex-Long : 2 A
Rated Power :
Output power : 12 W (for one channel)
Total power : 30 W
Power Consumption In Idle : ≤0.1 W
Efficiency : ≥86.95%
Port :
Input Port :
2-core female seat C8, with European standard cable
Output Plug : 4 channel output terminal
Protection :
Types of Protection :
Overcurrent protection
Short circuit protection
Overvoltage protection
Surge Protection Grade :
Common mode: ±4 kV
Differentiate mode: ±2 kV
Statics Protection
Air discharge: ±8 kV
Contact discharge: ±6 kV
Structure :
Installation : Wall mount
Product Dimensions (L × W × H) :
140.1 mm × 94.5 mm × 34.2 mm (5.52" × 3.72" × 1.35")
Appearance Color : Gray
Net Weight : 0.23 kg (0.51 lb)
Gross Weight : 0.31 kg (0.68 lb)
Packaging Dimensions (L × W × H) :
143 mm × 41 mm × 144 mm (5.63" × 1.61" × 5.67")
Input Cable Length : 1000 mm (39.37")
Environment :
Operating Temperature : 0 °C to +40 °C (+32 °F to +104 °F)
Operating Humidity : 10%–90% (RH)
Storage Temperature : –40 °C to +80 °C (–40 °F to +176 °F)
Storage Humidity : 5%–95% (RH)
Certifications : CE
