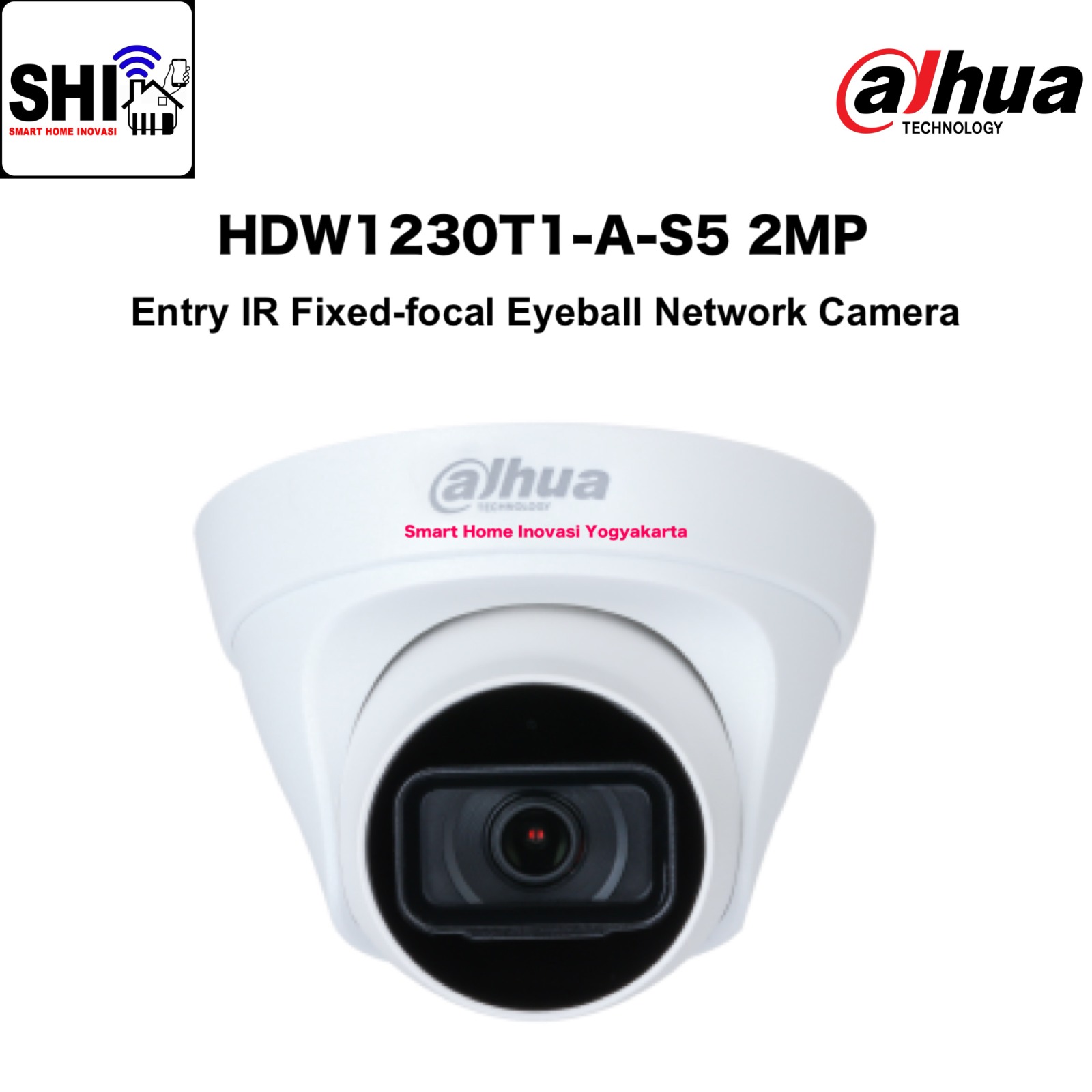

DAHUA PoE Camera Turret Indoor 2MP (1080) IPC-HDW1230T1-A-S5, Entry IR Fixed-focal Eyeball Network Camera

DAHUA PoE Camera Turret Indoor 2MP (1080) IPC-HDW1230T1-A-S5, Entry IR Fixed-focal Eyeball Network Camera

Key Features :

• 2-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.

• Outputs max. 2 MP (1920 × 1080)@25/30 fps.

• H.265 codec, high compression rate, ultra-low bit rate.

• Built-in IR LED, and the max. illumination distance is 30 m.

• ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.

• Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

• Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, audio detection and illegal access.

• Built-in MIC.

• 12 VDC/PoE power supply.

• IP67 protection.

Camera :

• Image Sensor : 1/2.8" CMOS

• Max. Resolution : 1920 (H) × 1080 (V)

• ROM : 16 MB

• RAM : 64 MB

• Scanning System : Progressive

• Electronic Shutter Speed :

  • Auto/Manual 1/3 s–1/100,000 s

• Min. Illumination :

  • 0.01 lux@F2.0 (Color, 30 IRE)

  • 0.001 lux@F2.0 (B/W, 30 IRE)

  • 0 lux (Illuminator on)

•  S/N Ratio : > 56 dB

• Illumination Distance : 30 m (98.43 ft) (IR)

• Illuminator On/Off Control : Auto; manual

• Illuminator Number : 1 (IR LED)

• Pan/Tilt/Rotation Range :

  • Pan: 0°–355°

  • Tilt: 0°–78°

  • Rotation: 0°–355°

Lens :

• Lens Type : Fixed-focal

• Lens Mount : M12

• Focal Length : 2.8 mm; 3.6 mm

• Max. Aperture :

  • 2.8 mm : F2.0

  • 3.6 mm : F2.0

•  Field of View :

  • 2.8 mm : Horizontal: 102°; Vertical: 54°; Diagonal: 120°

  • 3.6 mm : Horizontal: 88°; Vertical: 47°; Diagonal: 104°

• Iris Control : Fixed

• Close Focus Distance :

  • 2.8 mm: 0.5 m (1.64 ft)

  • 3.6 mm: 0.8 m (2.62 ft)

Video :

• Video Compression :

  • H.265; H.264; H.264H; H.264B; MJPEG

  • (Only supported by the sub stream)

• Smart Codec : Smart H.265+; Smart H.264+

• Video Frame Rate

  • Main stream :

    • 1920 × 1080@1–25/30 fps

  • Sub stream :

    • 704 × 576@1–25 fps

    • 704 × 480@1–30 fps

  • *The values above are the max. frame rates of each stream;
          for multiple streams, the values will be subjected to the total
          encoding capacity.

•  Stream Capability : 2 streams

•  Resolution :

  • 1080p (1920 × 1080)

  • 1.3M (1280 × 960)

  • 720p (1280 × 720)

  • D1 (704 × 576/704 × 480)

  • VGA (640 × 480)

  • CIF (352 × 288/352 × 240)

• Bit Rate Control : CBR/VBR

• Video Bit Rate :

  • H.264: 32 kbps–6144 kbps

  • H.265: 12 kbps–6144 kbps

• Day/Night : Auto (ICR)/Color/B/W

• BLC : Yes

• HLC : Yes

• WDR : DWDR

• White Balance :

  • Auto; natural; street lamp; outdoor; manual; regional custom

• Gain Control : Auto; manual

• Noise Reduction : 3D NR

• Motion Detection : OFF/ON (4 areas, rectangular)

• Region of Interest (RoI) : Yes (4 areas)

• Smart Illumination : Yes

• Image Rotation :

  • 0°/90°/180°/270°

  • Support 90°/270° with 1080p resolution and lower

• Mirror : Yes

• Privacy Masking : 4 areas

Audio :

• Built-in MIC : Yes

• Audio Compression : G.711A; G.711Mu; G.726

Alarm :

• Alarm Event :

  • Network disconnection

  • IP conflict

  • Illegal access

  • Motion detection

  • Video tampering

  • Audio detection

  • Security exception

Network :

• Network Port : RJ-45 (10/100 Base-T)

• SDK and API : Yes

• Cyber Security :

  • Configuration encryption

  • Trusted execution

  • Digest

  • Security logs

  • Trusted upgrade

  • WSSE

  • Trusted boot

  • Account lockout

  • Generation and importing of X.509 certification

  • Video encryption

•  Network Protocol :

  • IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP;

  • FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP

• Interoperability : ONVIF (Profile S); CGI; P2P; Genetec

• User/Host : 6 (Total bandwidth: 36 M)

• Storage : FTP

• Browser : IE, Chrome, Firefox

• Management Software : Smart PSS; DSS; DMSS

• Mobile Client : iOS; Android

Power :

• Power Supply : 12 VDC/PoE (802.3af)

• Power Consumption :

• Basic : 1.2 W (12 VDC); 2 W (PoE)

• Max. (ICR + H.265 + IR intensity): 3.1 W (12 VDC); 4.1 W (PoE)

Environment :

• Operating Temperature : –40 °C to +60 °C (–40 °F to +140 °F)

• Operating Humidity : ≤ 95%

• Storage Temperature : –40 °C to +60 °C (–40 °F to +140 °F)

• Protection : IP67

Structure :

• Casing : Metal + Plastic

• Product Dimensions :

  • 85.5 mm × Φ109 mm (3.4" × Φ4.3")

• Net Weight : 0.24 kg (0.5 lb)

• Gross Weight : 0.37 kg (0.8 lb)

Certifications :

• CE-LVD : EN 62368-1

• CE-EMC : Electromagnetic Compatibility Directive 2014/30/EU

• FCC : 47 CFR FCC Part 15, Subpart B
