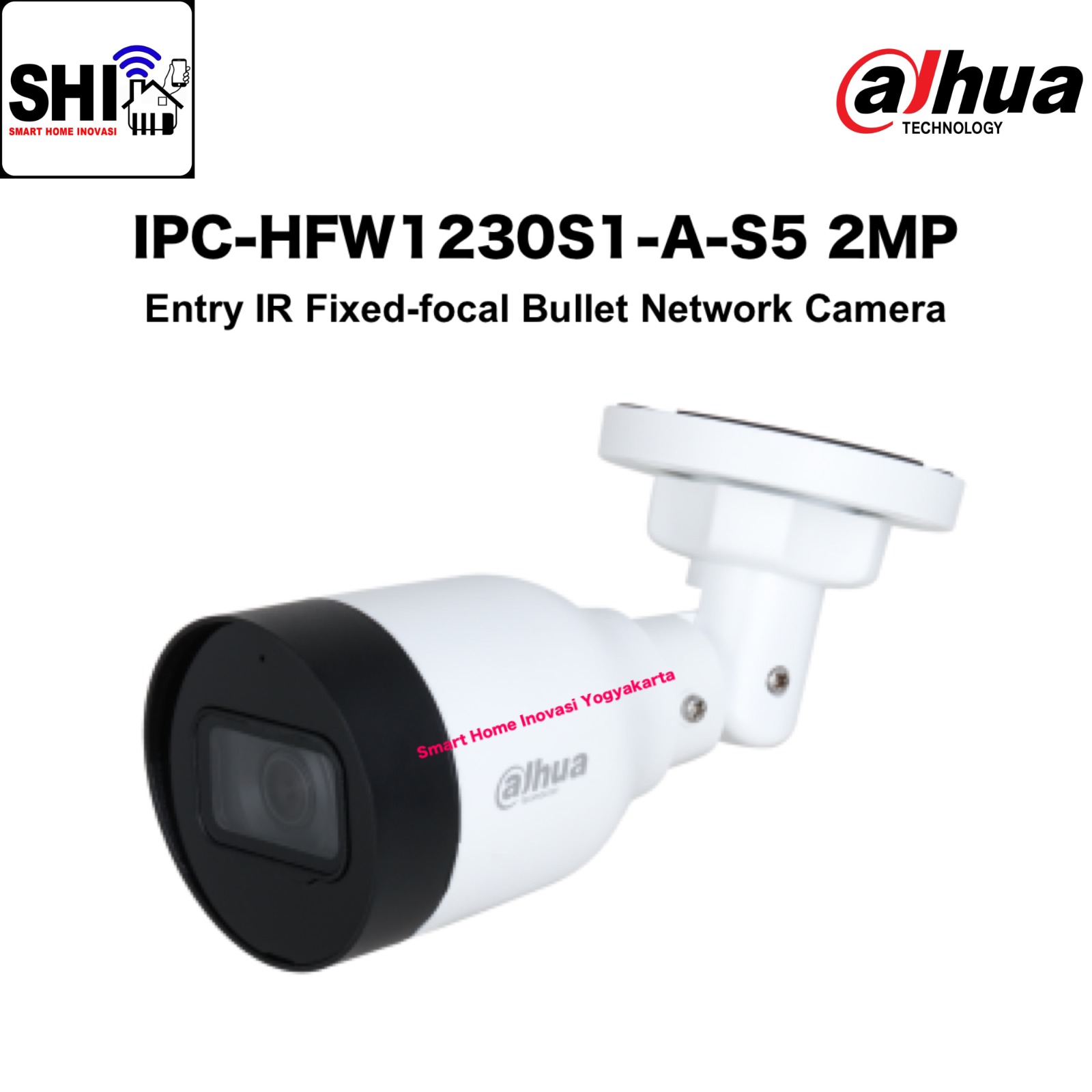

DAHUA PoE Camera Bullet Outdoor 2MP (1080P) IPC-HFW1230S1-A-S5, Entry IR Fixed-focal Bullet Network Camera
Kamera pengaman dengan lensa tetap dan fitur IR
Rp1.00
DAHUA PoE Camera Bullet Outdoor 2MP (1080P) IPC-HFW1230S1-A-S5, Entry IR Fixed-focal Bullet Network Camera
Camera :
Image Sensor : 1/2.8" CMOS
Max. Resolution : 1920 (H) × 1080 (V)
ROM : 16 MB
RAM : 64 MB
Scanning System : Progressive
Electronic Shutter Speed :
Auto/Manual 1/3 s–1/100,000 s
Min. Illumination :
0.01 lux@F2.0 (Color, 30 IRE)
0.001 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio : > 56 dB
Illumination Distance : 30 m (98.43 ft) (IR)
Illuminator On/Off Control : Auto; manual
Illuminator Number : 1(IR LED)
Pan/Tilt/Rotation Range :
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens :
Lens Type : Fixed-focal
Lens Mount : M12
Focal Length : 2.8 mm; 3.6 mm
Max. Aperture :
2.8 mm: F2.0
3.6 mm: F2.0
Field of View :
2.8 mm: Horizontal: H: 102°; V: 54°; D: 120°
3.6 mm: Horizontal: H: 88°; V: 47°; D: 104°
Iris Control : Fixed
Close Focus Distance :
2.8 mm: 0.5 m (1.64 ft)
3.6 mm: 0.8 m (2.62 ft)
Video :
Video Compression :
H.265; H.264; H.264H; H.264B; MJPEG
(Only supported by the sub stream)
Smart Codec : Smart H.265+; Smart H.264+
Video Frame Rate :
Main stream : 1920 × 1080@1–25/30 fps
Sub stream :
704 × 576@1–25 fps
704 × 480@1–30 fps
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability : 2 streams
Resolution :
1080p (1920 × 1080)
1.3M (1280 × 960)
720p (1280 × 720)
D1 (704 × 576/704 × 480)
VGA (640 × 480)
CIF (352 × 288/352 × 240)
Bit Rate Control : CBR/VBR
Video Bit Rate :
H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps
Day/Night : Auto (ICR)/Color/B/W
BLC : Yes
HLC : Yes
WDR : DWDR
White Balance :
Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control : Auto; manual
Noise Reduction : 3D NR
Motion Detection : OFF/ON (4 areas, rectangular)
Region of Interest (RoI) : Yes (4 areas)
Smart Illumination : Yes
Image Rotation :
0°/90°/180°/270°
(Support 90°/270° with 1080p resolution and lower)
Mirror : Yes
Privacy Masking : 4 areas
Audio :
Built-in MIC : Yes
Audio Compression : G.711A; G.711Mu; G.726
Alarm :
Alarm Event :
Network disconnection
IP conflict
Illegal access
Motion detection
Video tampering
Audio detection
Security exception
Network :
Network Port : RJ-45 (10/100 Base-T)
SDK and API : Yes
Cyber Security :
Configuration encryption
Trusted execution
Digest
Security logs
Trusted upgrade
WSSE
Trusted boot
Account lockout
Generation and importing of X.509 certification
Video encryption
Network Protocol :
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP;
SMTP
FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
Interoperability : ONVIF (Profile S); CGI; P2P; Genetec
User/Host : 6 (Total bandwidth: 36 M)
Storage : FTP
Browser : IE, Chrome, Firefox
Management Software : Smart PSS; DSS; DMSS
Mobile Client : iOS;Android
Power
Power Supply : 12 VDC/PoE (802.3af)
Power Consumption :
Basic :
1.2 W (12 VDC)
2 W (PoE)
Max. (ICR + H.265 + IR intensity):
3.2 W (12 VDC)
4.1 W (PoE)
Environment :
Operating Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity : ≤ 95%
Storage Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
Protection : IP67
Structure :
Casing : Metal + plastic
Product Dimensions (L × W × H) :
162.6 mm × 70 mm× 70 mm (6.4" × 2.8" × 2.8")
Net Weight : 0.22 kg (0.5 lb)
Gross Weight : 0.34 kg (0.7 lb)
Certifications :
CE-LVD: EN 62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
