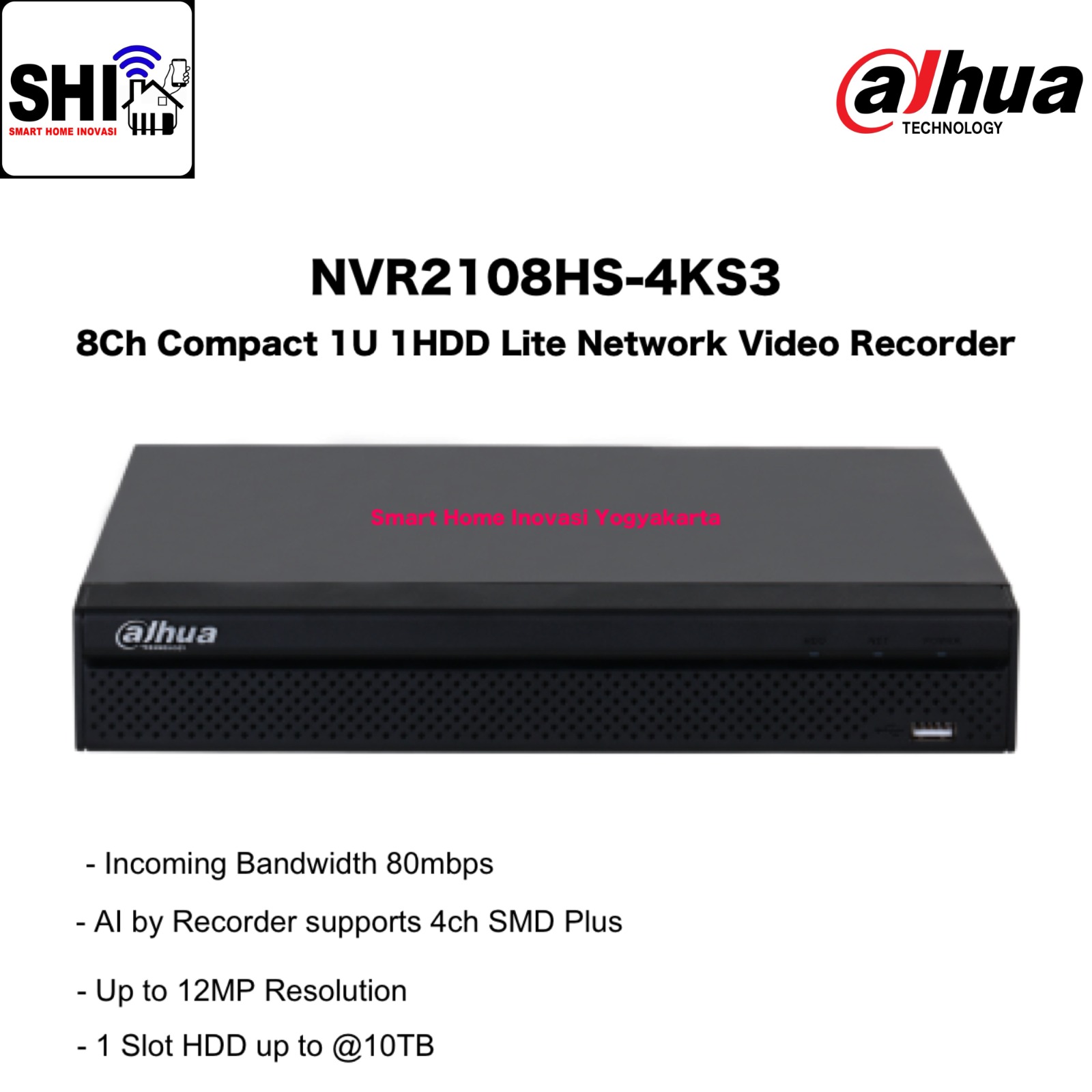

DAHUA NVR 8 Channel DHI-NVR2108HS-4KS3, 8CH Compact 1U 1HDD Lite Network Video Recorder
8 Channel Compact 1U 1HDD Lite Network Video Recorder
Rp1.00
DAHUA NVR 8 Channel DHI-NVR2108HS-4KS3, 8CH Compact 1U 1HDD Lite Network Video Recorder
System :
Main Processor : Industrial-grade processor
Operating System : Embedded Linux
Operating Interface : Web, Local GUI
AI :
AI by Recorder : SMD
AI by Camera : Perimeter protection; SMD
Perimeter Protection :
Perimeter Performance of AI by Camera
Number of Channels : All channels (4 targets/s)
SMD Plus :
SMD Plus by Recorder : 4 channels
Secondary filtering for human and motor vehicle
Reducing false alarms caused by leaves, rain and
lighting condition change
SMD Plus by Camera : All channels (8 targets/s)
Audio and Video :
Access Channel : 8 channels
Network Bandwidth :
80 Mbps incoming
80 Mbps recording
60 Mbps outgoing
Resolution :
12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP;
1080p; 720p; 960p;
D1; CIF; QCIF
Decoding Capability :
AI disabled :
1-channel 12 MP@30 fps
1-channel 8 MP@30 fps
2-channel 6 MP@30 fps
2-channel 5 MP@30 fps
3-channel 4 MP@30 fps
6-channel 1080p@30 fps
AI enabled :
1-channel 8 MP@30 fps
1-channel 6 MP@30 fps
1-channel 5 MP@30 fps
2-channel 4 MP@30 fps
4-channel 1080p@30 fps
Video Output : 1 HDMI, 1 VGA
HDMI : 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA : 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display : 1/4/8/9
Third-party Camera Access : ONVIF
Compression Standard
Video Compression :
Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression : G.711a; G.711u; PCM; G726;
Network :
Network Protocol :
HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP;
NTP; DHCP; DNS; SMTP; IP Filter; DDNS;
IP Search (Supports IP camera, DVR, NVS, etc.);
P2P; Auto Registration
Mobile Phone Access : iOS; Android
Interoperability :
ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK
Browser : Chrome; IE; Safari; Edge; Firefox
Recording Playback :
Multi-channel Playback : Up to 8 channels
Record Mode : General, motion detection; intelligent; alarm
Backup Method : USB device and network
Playback Mode :
Instant playback
General playback
Event playback
Tag playback
Smart playback
Alarm :
General Alarm :
Motion detection; camera external alarm; PIR alarm
Anomaly Alarm :
Error (no disk, disk error, low space, low quota space;
network disconnection; IP conflict; MAC conflict)Video loss
Video tampering
Camera offline
Intelligent Alarm : Perimeter protection; SMD Plus
Alarm Linkage :
Recording; snapshot; buzzer; log; preset; email; tour
Port :
Audio Input : 1-channel RCA
Audio Output : 1-channel RCA
Alarm Input : NA (2 channels are optional)
Alarm Output : NA (1-channel 12 V 1 A output is optional)
Disk Interface : 1 SATA port.
Each disk can contain up to 20 TB.
This limit varies depending on the environment temperature.
USB : 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
HDMI : 1
VGA : 1
Network Port : 1 (10/100 Mbps Ethernet port, RJ-45)
General :
Power Supply : 12 VDC, 1.5 A
Power Consumption : <10 W (without HDD)
Net Weight : 0.85 kg (1.87 lb)
Gross Weight : 1.39 kg (3.06 lb)
Product Dimensions : 260.0 mm × 232.5 mm × 47.6 mm(10.24" × 9.15" × 1.87") (W × D × H)
Packaging Dimensions : 334.0 mm × 89.0 mm × 314.0 mm(13.15" × 3.50" × 12.36")(W × D × H)
Operating Temperature : –10 °C to +55 °C (14 °F to +131 °F)
Storage Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity : 10%–93% (RH), non-condensing
Certifications :
CE-LVD : IEC 62368-1:2014
CE-EMC :
EN IEC 61000-3-2:2019
EN 61000-3-3:2013+A1:2019
EN 55032:2015+A11:2020
EN 55035:2017+A11:2020
EN 55024:2010+A1:2015
EN 50130-4:2011+A1:2014
