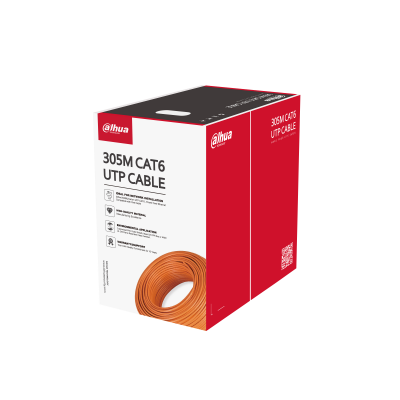

DAHUA Kabel LAN CAT 6 DH-PFM922I-6UN-C (ORANGE)
Rp1.00
DAHUA Kabel LAN CAT 6 DH-PFM922I-6UN-C (ORANGE)
Overview :
305.0 m (1000 ft)/carton UTP CAT6, power over Ethernet, compatible with one cable
Manufacturing excellence
Customized PVC outer sheath; meet CE CPR Eca flame retardant class certified
10-year warranty
Conductor :
Material : CCA(Copper content 22%–31%)
Diameter : 0.57 mm ± 0.01 mm
American Wire Gauge : 23AWG
Insulation :
Material : HDPE
Min. Average Thickness : 0.21 mm
Diameter : 1.02 mm ± 0.06 mm
Color (4 Pairs) :
Blue, white/blue
Orange, white/orange
Green, white/green
Brown, white/brown
Separator :
Material : PE
Specification : Translucent 4.5 × 0.4 mm
Rip Cord :
Material : Polyester
Specification : 500D
Sheath :
Material : PVC
Min. Average Thickness : 0.5 mm
Diameter : 6.5 mm ± 0.3 mm
Color : Orange
Electrical :
Max. DC Resistance of a Single Conductor : 11.5Ω/100 m
Min. Insulation Resistance : 5000MΩ·km
Max. DC Resistance Unbalance : 2% (pair intra), 4% (pairs inter)
Dielectric Strength : No breakdown with 1KV DC for 1 min
Transmission :
Characteristic Impedance : 100 ± 15Ω
Near End Cross Talk : ≥39.30 dB/100 m@250 MHz
Max. Attenuation : 34.8 dB/100 m@250 MHz
Return Loss : ≥17.3 dB/100 m@250 MHz
Mechanical :
Tensile Strength :
Sheath≥13.5 MPa, insulation≥16 MPa
Elongation at Break :
Sheath≥150%, insulation≥300%
Installation Bending Radius :
>8 times of outer cable diameter
Conductor Elongation at Break : ≥10%
Environmental :
Shrinkage of Insulation : ≤5%
Color Migration Resistance of Insulation : No migration
Sheath Tensile Strength and Elongation at Break after Aging :
≥12.5 MPa, ≥100%
Low Temperature Bending Test : No cracking after the test
Heat Shock Test : No cracking after the test
Operation Temperature : –20°C to +60°C (–4°F to 140°F)
Installation Temperature : 0°C to +50°C (32°F to 122°F)
Storage Temperature and Humidity :
–10°C to +40°C (14°F to 104°F), <60% (RH)
Security :
Vertical Fire Propagation Test : Comply with IEC 60332-1-2
Packaging :
Length : 305.0 m (1000.66 ft) ± 1.5 m (4.92 ft)
Packaging Dimensions (L × W × H) :
390.0 mm x 390.0 mm x 247.0 mm (15.37"x15.37"x9.73")
Packaging Method :
305.0 m (1000.66 ft) a carton
One protection carton with 2 cartons inside
Net Weight : ≥9.2 kg (20.28 lb)
Gross Weight : ≥10.2 kg(22.49 lb)
Executive Standard : Q/DXJ 067-2019
Certification : CPR Eca
