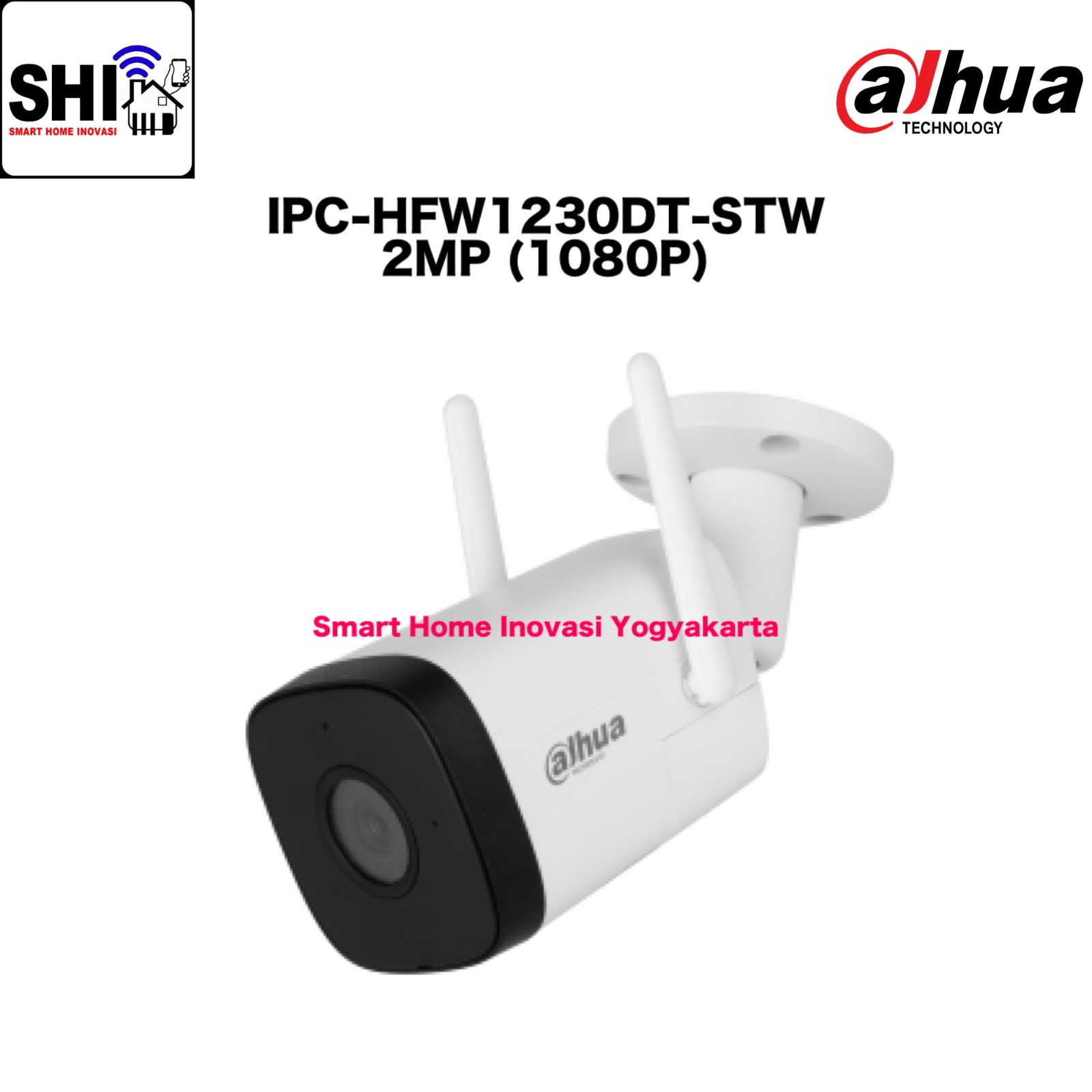

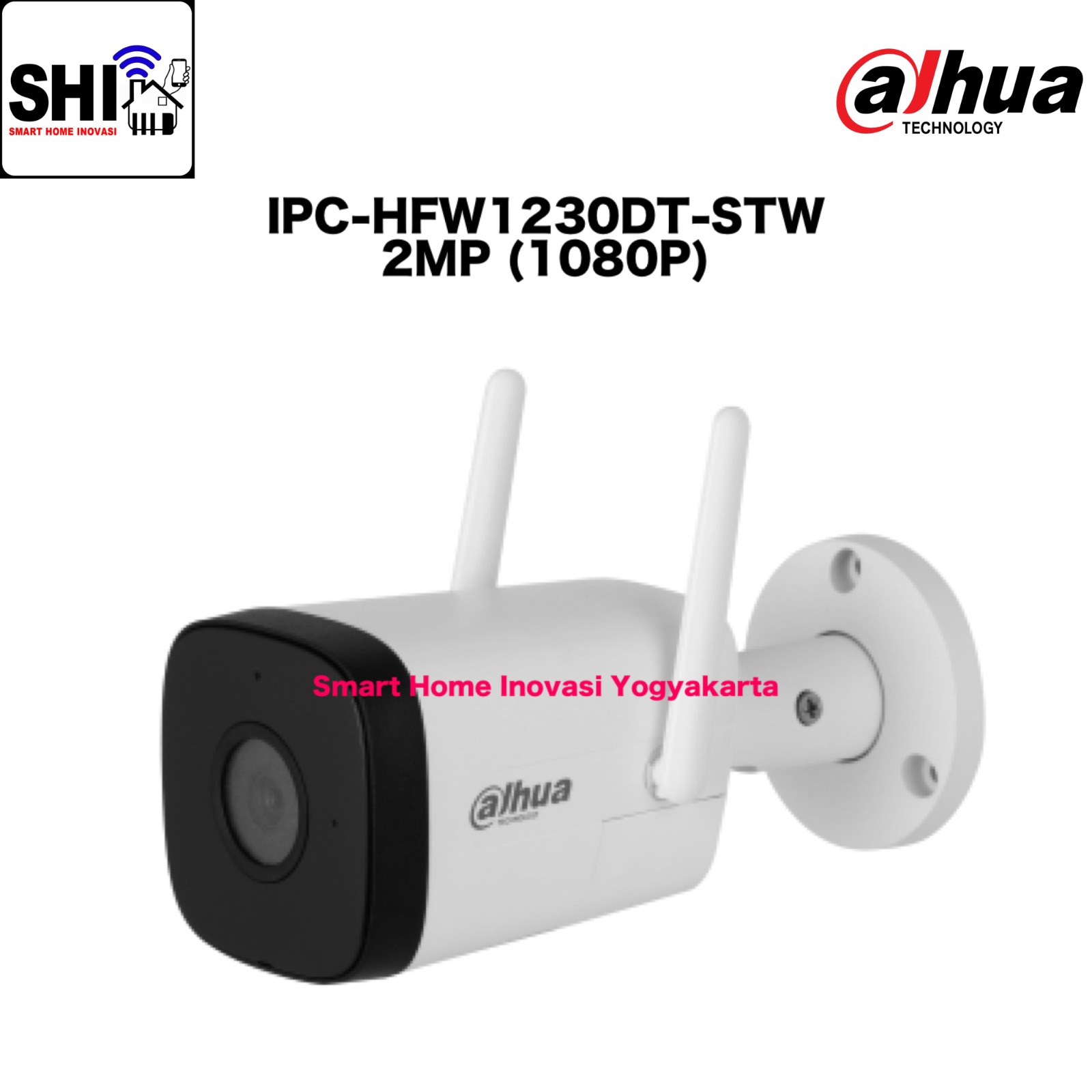

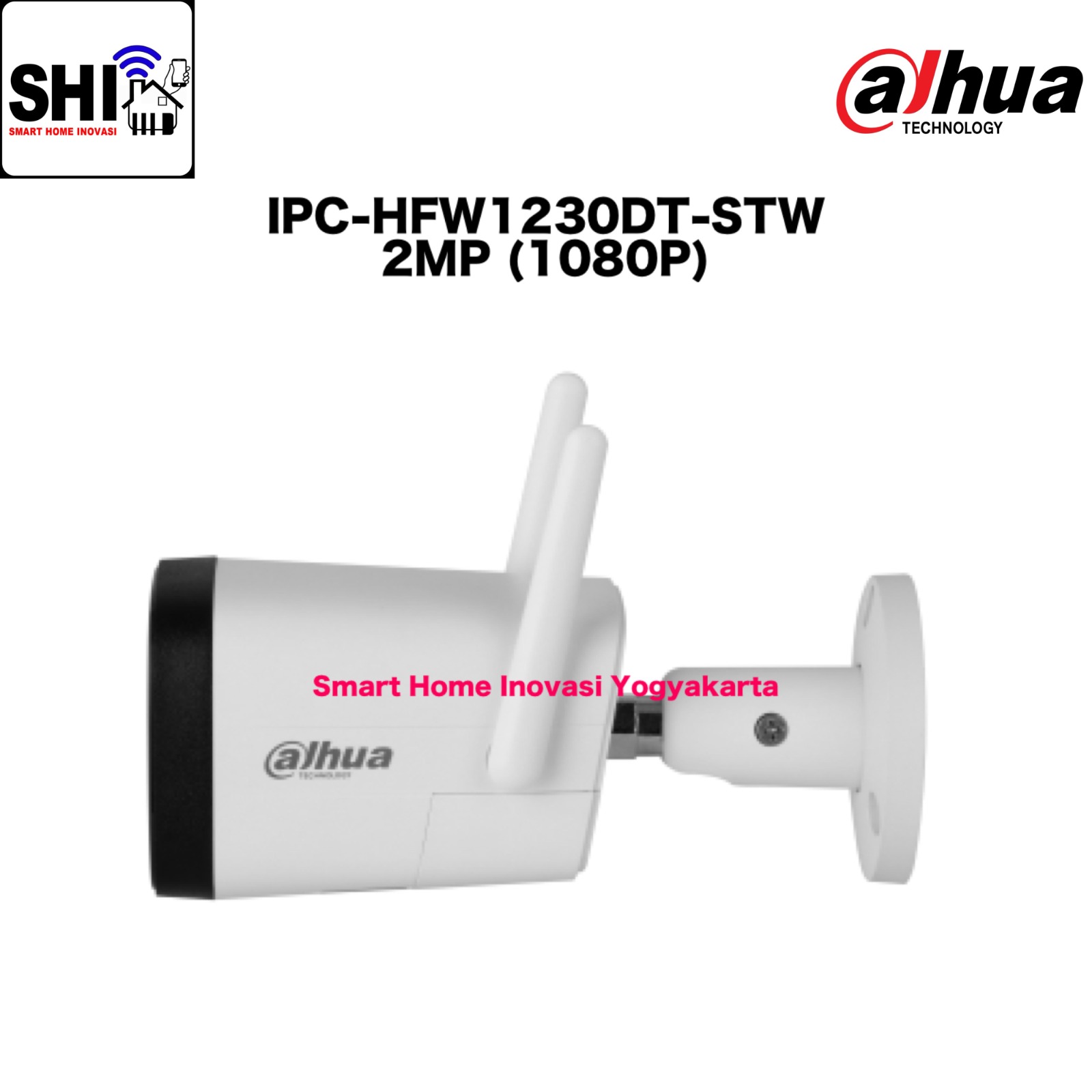

DAHUA IP Camera Static Outdoor IR Bullet 2MP (1080P) IPC-HFW1230DT-STW

DAHUA IP Camera Static Outdoor IR Bullet 2MP (1080P) IPC-HFW1230DT-STW

Camera :

• Image Sensor : 1/2.8" CMOS

• Max. Resolution : 1920 (H) × 1080 (V)

• ROM : 16 MB

• RAM : 64 MB

• Scanning System : Progressive

• Electronic Shutter Speed :

  • Auto/Manual 1/3 s–1/100,000 s

• Min. Illumination :

  • 0.025 lux@F2.0 (Color, 30 IRE)

  • 0.0025 lux@F2.0 (B/W, 30 IRE)

  • 0 lux (Illuminator on)

• S/N Ratio : > 56 dB

• Illumination Distance : 30 m (98.43 ft)

• Illuminator On/Off Control : Auto; Manual

• Illuminator Number : 1 (IR LED)

• Pan/Tilt/Rotation Range :

  • Pan: 0°–360°

  • Tilt: 0°–90°

  • Rotation: 0°–360°

Lens :

• Lens Type : Fixed-focal

• Lens Mount : M12

• Focal Length : 2.8 mm; 3.6 mm

• Max. Aperture : F2.0

• Field of View :

  • 2.8 mm :

    • Horizontal : 100°; Vertical : 53°; Diagonal : 120°

  • 3.6 mm :

    • Horizontal : 86°; Vertical : 43°; Diagonal : 102°

Iris Control : Fixed

Close Focus Distance :

• 2.8 mm: 0.6 m (1.97 ft)

• 3.6 mm: 1.0 m (3.28 ft)

Video :

• Video Compression : H.264B; H.264; H.264H; H.265

• Smart Codec : Smart H.265+; Smart H.264+

• Video Frame Rate :

  • Main stream : 1920 × 1080 (1–25/30 fps)

  • Sub stream :

    • 640 × 480@(1–25 fps)

    • 640 × 480@(1–30 fps)

  • *The values above are the max. frame rates of each stream;
          for multiple streams, the values will be subjected to the total
          encoding capacity.

• Stream Capability : 2 streams

• Resolution :

  • 1080p (1920 × 1080)

  • 960p (1280 × 960)

  • 720p (1280 × 720)

• Bit Rate Control : CBR/VBR

• Video Bit Rate :

• H264 : 24 kbps–4096 kbps

• H265 : 9 kbps–4096 kbps

• Day/Night : Auto (ICR)/Color/B/W

• BLC : Yes

• WDR : DWDR

• White Balance :

  • Auto; natural; street lamp; outdoor; manual; regional custom

• Gain Control : Auto

• Noise Reduction : 3D NR

• Motion Detection : 1024 kbps (1080p)

• Smart Illumination : Yes

• Image Rotation : 0°/180°

• Mirror : Yes

Audio :

Built-in MIC : Yes

Built-in Speaker : Yes

Audio Compression : G.711a; G.711Mu

Alarm :

• Alarm Event :

  • No SD card

  • SD card full

  • SD card error

  • Network disconnection

  • IP conflict

  • Illegal access

  • Motion detection

  • Video tampering

  • Audio detection

  • Intensity change

Network :

• Network Port : RJ-45 (10/100 Base-T)

• Wi-Fi :

  • IEEE802.11b/g/n 2.4000–2.4835 GHz; 2.4 G;

  • EIRP≤20dBm(CE); output power≤30dBm(FCC)

  • Wireless Range : Up to 150 m

    • (The performance varies based on actual environment)

  • SDK and API : Yes

  • Security :

    • Digest

    • WSSE

    • Account lockout

    • Security logs

    • Generation and importing of X.509 certification

    • HTTPS

    • Trusted boot

    • Trusted execution

    • Trusted upgrade

  • Network Protocol :

    • IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP;

    • RTCP; DHCP; DNS; NTP; Multicast; RTMP

  • Interoperability :

    • ONVIF (Profile S/Profile T); CGI; P2P

  • User/Host : 6 (Total bandwidth: 36 M)

  • Storage : Micro SD card (support max. 256 GB)

• Browser :

  • IE

  • Chrome

  • Firefox

• Management Software : Smart PSS; DSS; DMSS

• Mobile Client : iOS; Android

Power :

• Power Supply : 12 VDC

• Power Consumption :

  • Basic: 2.2 W (12 VDC)

  • Max. (H.265+IR intensity):6.21 W (12 VDC)

Environment :

• Operating Temperature :

  • –30 °C to +50 °C (–22 °F to +122 °F)

• Operating Humidity : ≤ 95%

• Storage Temperature :

  • –40 °C to +60 °C ( –40 °F to +140 °F)

• Protection : IP67

Structure :

• Casing :

  • Front cover: Plastic

  • Rear: Plastic

  • Bracket: Metal

• Product Dimensions :

  • 180 mm × 83.3 mm × 114.8 mm (7.09" × 3.28" × 4.52")

• Net Weight : 350.1 g (0.77 lb)

• Gross Weight : 588.1 g (1.30 lb)

Certifications :

• CE-LVD : EN62368-1;

• CE-EMC : Electromagnetic Compatibility Directive 2014/30/EU;

• CE-RED : Radio Equipment Directive 2014/53/EU;

• FCC : 47 CFR FCC Part 15, Subpart B;

• FCC ID : FCC PART 15C
