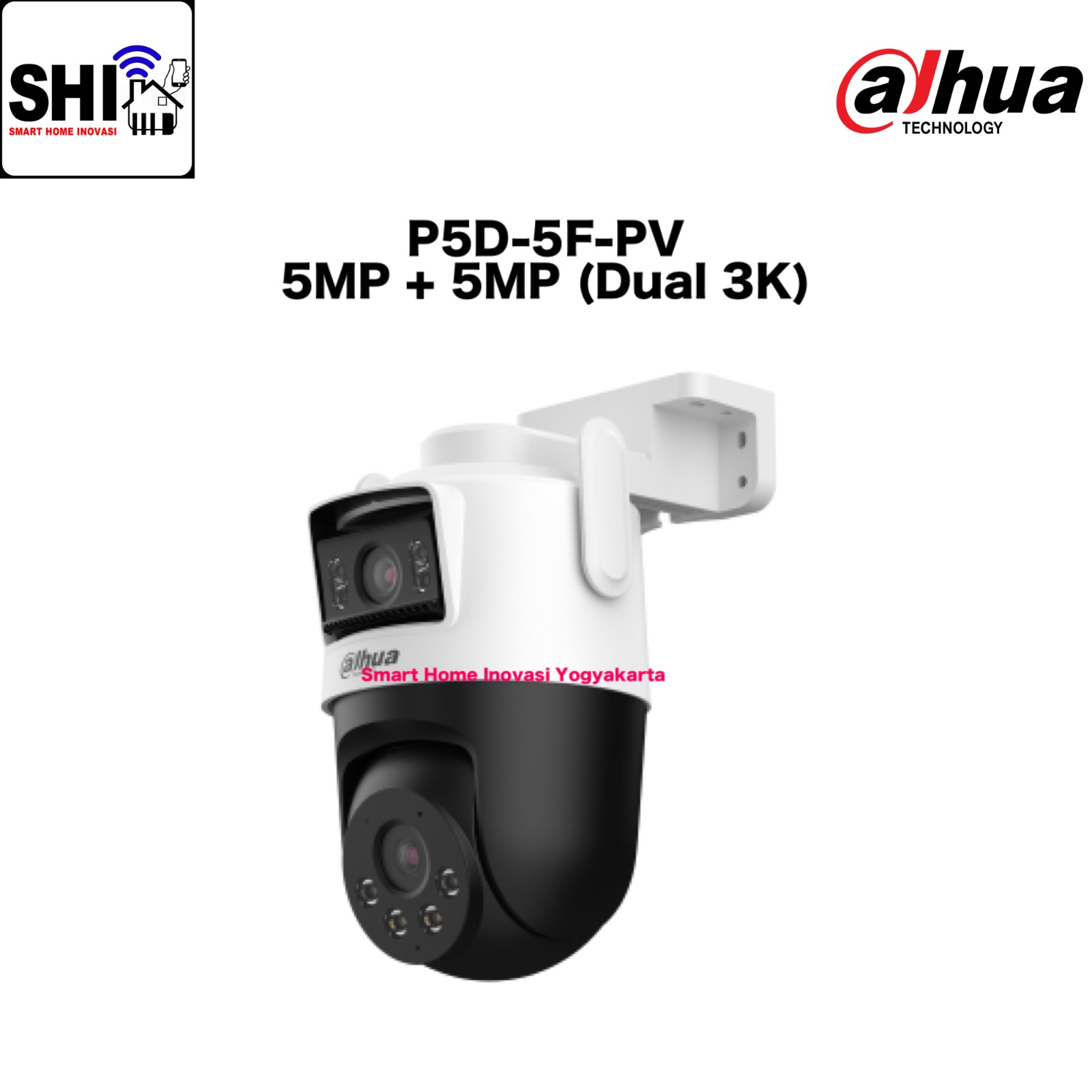

DAHUA IP Camera PTZ Outdoor Dual Lens 5MP + 5MP (Dual 3K) P5D-5F-PV

DAHUA IP Camera PTZ Outdoor Dual Lens 5MP + 5MP (Dual 3K) P5D-5F-PV

Camera :

• Fixed Lens :

  • Image Sensor : 1/3" CMOS

  • Max. Resolution : 2880 (H) × 1620 (V)

  • Illumination Distance :

  • - Up to 30 m (98.43 ft) (IR)

  • - Up to 20 m (65.62 ft) (Warm light)

  • Illuminator Number : 2 (IR LED); 2 (Warm light)

  • Angle Adjustment : -10° to 15°

  • Lens Type : Fixed-focal

  • Focal Length : 2.8 mm

  • Max. Aperture : F1.6

  • Field of View : H: 95°; V: 53°; D: 110°

• PT Lens :

  • Image Sensor : 1/3" CMOS

  • Max. Resolution : 2880 (H) × 1620 (V)

  • Illumination Distance :

    • Up to 50 m (164.04 ft) (IR)

    • Up to 40 m (131.23 ft) (Warm light)

  • Illuminator Number : 2 (IR LED); 2 (Warm light)

  • Angle Adjustment :

    • Pan : 0° to 352°;

    • Tilt : 0° to 90°

  • Lens Type : Fixed-focal

  • Focal Length : 6 mm

  • Max. Aperture : F1.6

  • Field of View : H: 49°; V: 26°; D: 57°

Intelligence :

• Human Detection : Yes

• Vehicle Detection : Yes

Audio and Video :

• Video Compression : H.265

• Video Frame Rate :

• Main stream : 2880 × 1620@15 fps

• sub stream:  640 × 360@15 fps

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

•  Video Bit Rate : H.265: 768 kbps–4096 kbps

• Day/Night : Auto(ICR)/Color/B/W

• WDR : DWDR

• Motion Detection : Yes

• Image Rotation : 0°/180°

• Built-in MIC : Yes, built-in Mic

• Built-in Speaker : Yes, built-in speaker

• Audio Compression : G.711a

Network :

• Network Port : RJ-45 (10/100 Base-T)

• Wi-Fi : IEEE 802.11b/g/n/ax 2.412-2.472

• GHz,2.4G,≤20dBm@2400-2483.5MHz

•  Wi-Fi : Pairing

• Bluetooth : pairing

• Storage : Micro SD card (support max. 256 GB)

• Management Software : DMSS

• Mobile Client : iOS;Android

General :

• Power Supply : 12 VDC

• Power Consumption :

  • Basic : 2.6 W

  • Max. : 10.6 W

    • (pulling stream+ IR + siren and light active deterrence)

• Operating Temperature :  –20 °C to +50 °C (–4 °F to +122 °F)

• Operating Humidity : ≤95% (RH), non-condensing

• Protection : IP66

• Casing Material : Plastic

• Product Dimensions : 159.4 mm × 119.1 mm × 210 mm
                                              (6.28" × 4.69" × 8.27") (L × W × H)

• Net Weight : 585 g (1.29 lb)

Certifications : CE
