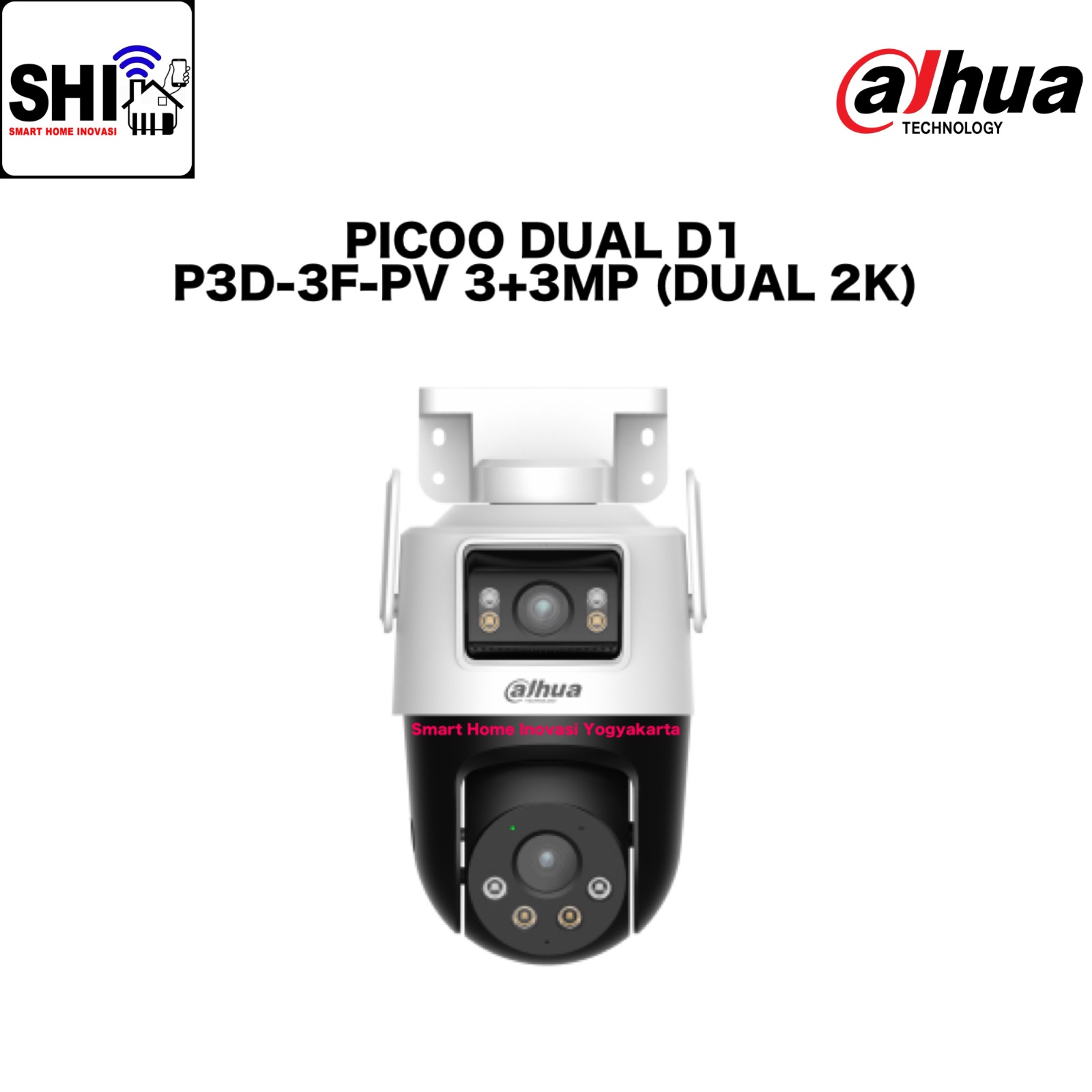

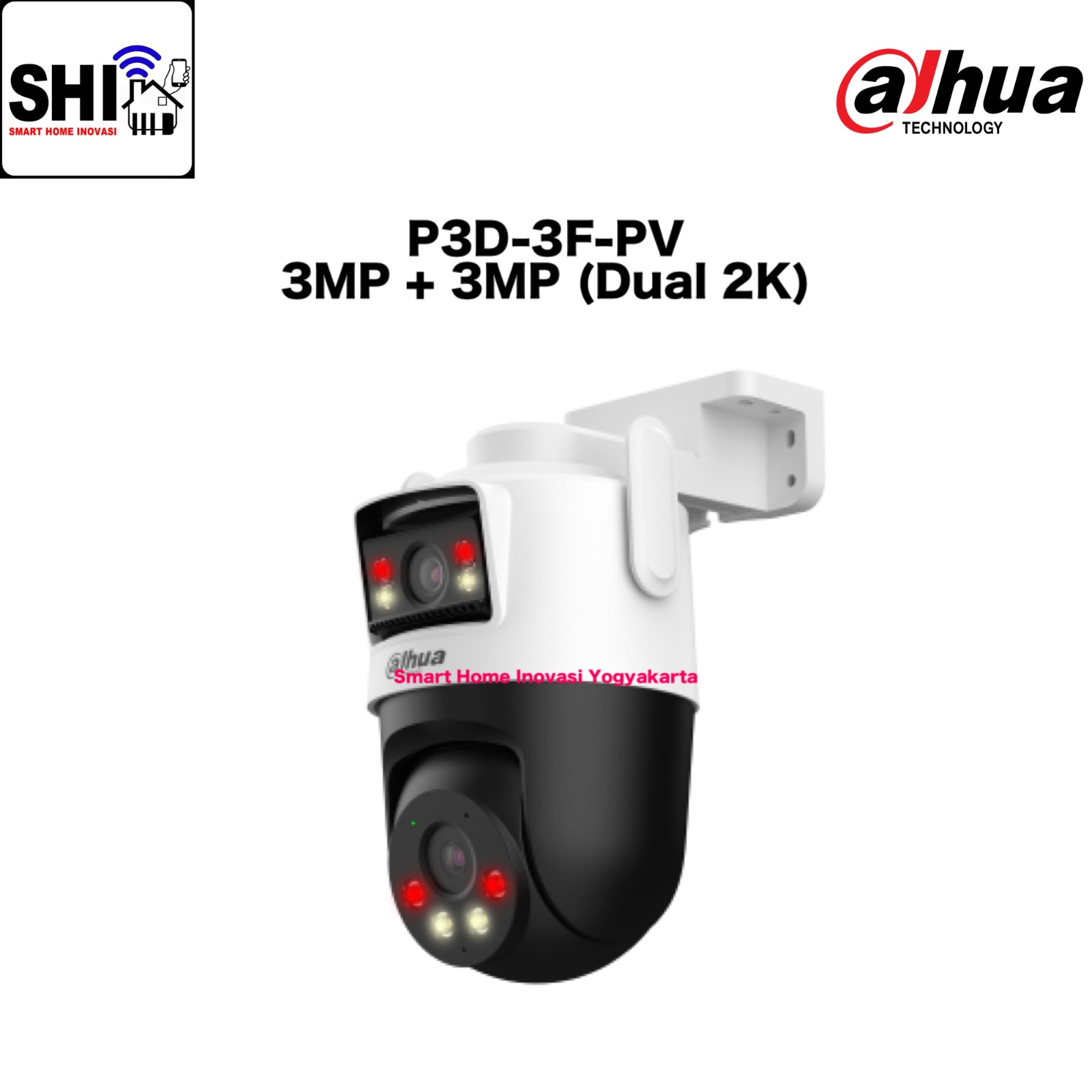

DAHUA IP Camera PTZ Outdoor Dual Lens 3MP + 3MP (Dual 2K) P3D-3F-PV

DAHUA IP Camera PTZ Outdoor Dual Lens 3MP + 3MP (Dual 2K) P3D-3F-PV

Camera :

• Image Sensor :

  • Channel 1 (PT Lens): 1/2.9" CMOS

  • Channel 2 (Fixed Lens): 1/2.9" CMOS

• Max. Resolution :

  • Channel 1-2: 2304 (H) × 1296 (V)

• Illumination Distance :

  • Up to 40 m (131.23 ft) (Warm light)

• Illuminator Number : 4 (Warm light)

• Angle Adjustment :

  • Pan: 0° to 352°

  • Tilt: 0° to 90°

• Lens Type : Fixed-focal

• Focal Length :

  • Channel 1 (PT Lens): 6 mm

  • Channel 2 (Fixed Lens): 2.8 mm

• Max. Aperture : F1.0

• Field of View :

  • Channel 1 (PT Lens) : H : 52°; V : 29°; D : 60°

  • Channel 2 (Fixed Lens) : H : 89°; V: 48°; D : 105°

Intelligence :

• Human Detection : Yes

• Vehicle Detection : Yes

Audio and Video :

• Video Compression

  •  H.265; H.264; H.264H; H.264B; MJPEG

    • (Only supported by sub stream)

• Video Frame Rate

  • Main stream: 2304 × 1296@(1–20 fps)

  • Sub stream: 640 × 360@(1–25/30 fps)

  • *The values above are the max. frame rates of each stream;
          for multiple streams, the values will be subjected to the total
          encoding capacity.

• Video Bit Rate : H.265: 512 kbps–4096 kbps

• Day/Night : Color/B/W

• WDR : 120 dB

• Motion Detection : OFF/ON (4 areas, rectangular)

• Image Rotation : 0°/180°

• Built-in MIC : Yes, built-in Mic

• Built-in Speaker : Yes, built-in speaker

• Audio Compression : G.711a; G.711Mu; PCM; G.726

Network :

• Network Port : RJ-45 (10/100 Base-T)

• Wi-Fi :

  • IEEE 802.11b/g/n 2.4 G

  • EIRP≤20 dBm@2400–2483.5 MHz (CE)

• Wi-Fi Pairing : Bluetooth pairing

• Storage : Micro SD card (support max. 256 GB)

• Management Software : Smart PSS Lite; DSS; DMSS

• Mobile Client : Android;iOS

Function :

• Abnormal Sound Alarm : Yes

General :

• Power Supply : 12 VDC (±30%); PoE (802.3af)

• Power Consumption :

  • Basic : 2.3 W (12 VDC); 3.1 W (PoE);

  • Max. : 9.8 W (12 VDC); 11.1W (PoE)

    • (intelligence on + WDR + illuminator on
              + PT rotation + speaker on)

• Operating Temperature :

  • –30 °C to +50 °C (–22 °F to +122 °F)

• Operating Humidity : ≤95%

• Protection : IP66

• Camera Button : Reset button

• Casing Material : Plastic

• Product Dimensions (L × W × H) :

  • 159.4 mm × 119.1 mm × 210 mm (6.28" × 4.69" × 8.27")

• Net Weight : 585 g (1.29 lb)

Certifications :

• CE-LVD : EN62368-1;

• CE-EMC : Electromagnetic Compatibility Directive 2014/30/EU;

• CE-RED : Radio Equipment Directive 2014/53/EU
