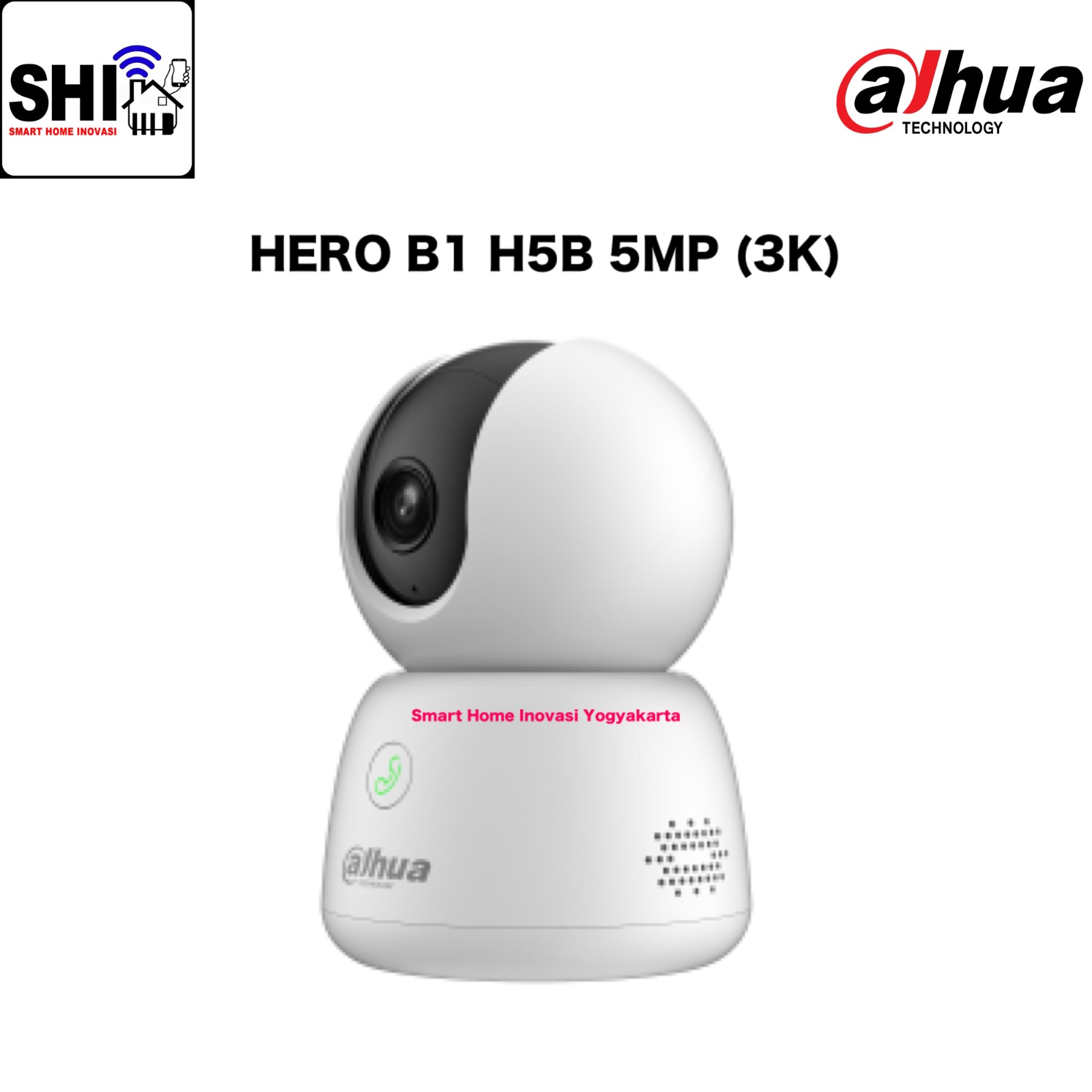

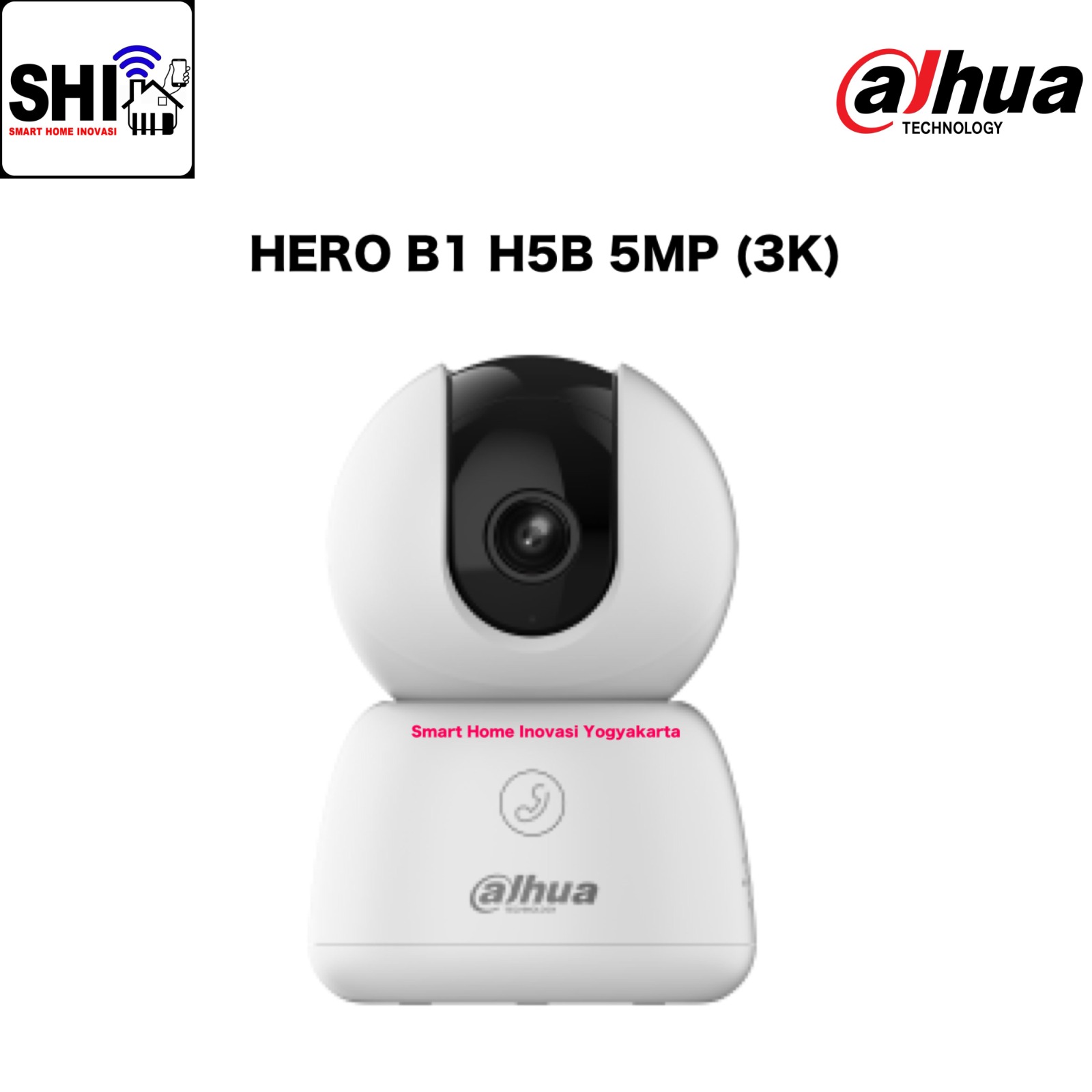

DAHUA IP Camera PTZ Indoor Hero B1 5MP (3K) H5B

DAHUA IP Camera PTZ Indoor Hero B1 5MP (3K) H5B

Camera :

• Image Sensor : 1/3" CMOS

• Max. Resolution : 2880 (H) × 1620 (V)

• Electronic Shutter Speed :

  • Auto/Manual 1/3 s–1/100,000 s

• Illumination Distance : Up to 10 m (32.81 ft) (IR)

• Illuminator On/Off Control : Auto

• Illuminator Number : 1 (IR LED)

• Angle Adjustment :

  • Tilt: -5° to 80°

  • Pan: 0° to 350°

Lens :

• Max. Aperture : F2.0

• Field of View :

  • 2.8mm : H : 99°; V : 55°; D : 115°

  • 3.6mm : H : 74°; V : 41°; D : 88°

Intelligence :

• Human Detection : Yes

Video :

• Video Compression : H.265

• Video Frame Rate :

  • Main stream : 2880 × 1620@(1-25/30 fps)

  • Sub stream : 640 × 360@(1-25/30 fps)

  • *The values above are the max. frame rates of each stream;
          for multiple streams, the values will be subjected to the total
          encoding capacity.

• Resolution : 5M (2880 × 1620); nHD (640 × 360)

• Video Bit Rate : H.265: 40 kbps–4096 kbps

• Day/Night : Auto(ICR)/Color/B/W

• WDR : DWDR

• Motion Detection : Yes

• Image Rotation : 0°/180°

Audio :

• Built-in MIC : Yes

• Built-in Speaker : Yes

• Audio Compression : G.711a

Network :

• Network Port : RJ-45 (10/100 Base-T)

• Wi-Fi :

  • IEEE 802.11b/g/n/ax 2.412-2.472 GHz, 2.4 G,

  • ≤20dBm@2400-2483.5MHz

• Storage : Micro SD card (up to 256 GB)

• Management Software : DMSS

• Mobile Client : iOS;Android

Power :

• Power Supply : 5 VDC, 1 A

• Power Consumption :

  • Basic : 1.9 W;

  • Max. : 3.8 W (live + IR + PT rotation)

Environment :

• Operating Temperature :

  • –10 °C to +45 °C (+14 °F to + 113 °F)

• Operating Humidity : ≤95%

Structure :

• Casing Material : Plastic

• Product Dimensions :

  • φ84 mm × 123.8 mm (φ3.31" × 4.87")

• Net Weight : 206.5 g (0.46 lb)

Certifications : CE
