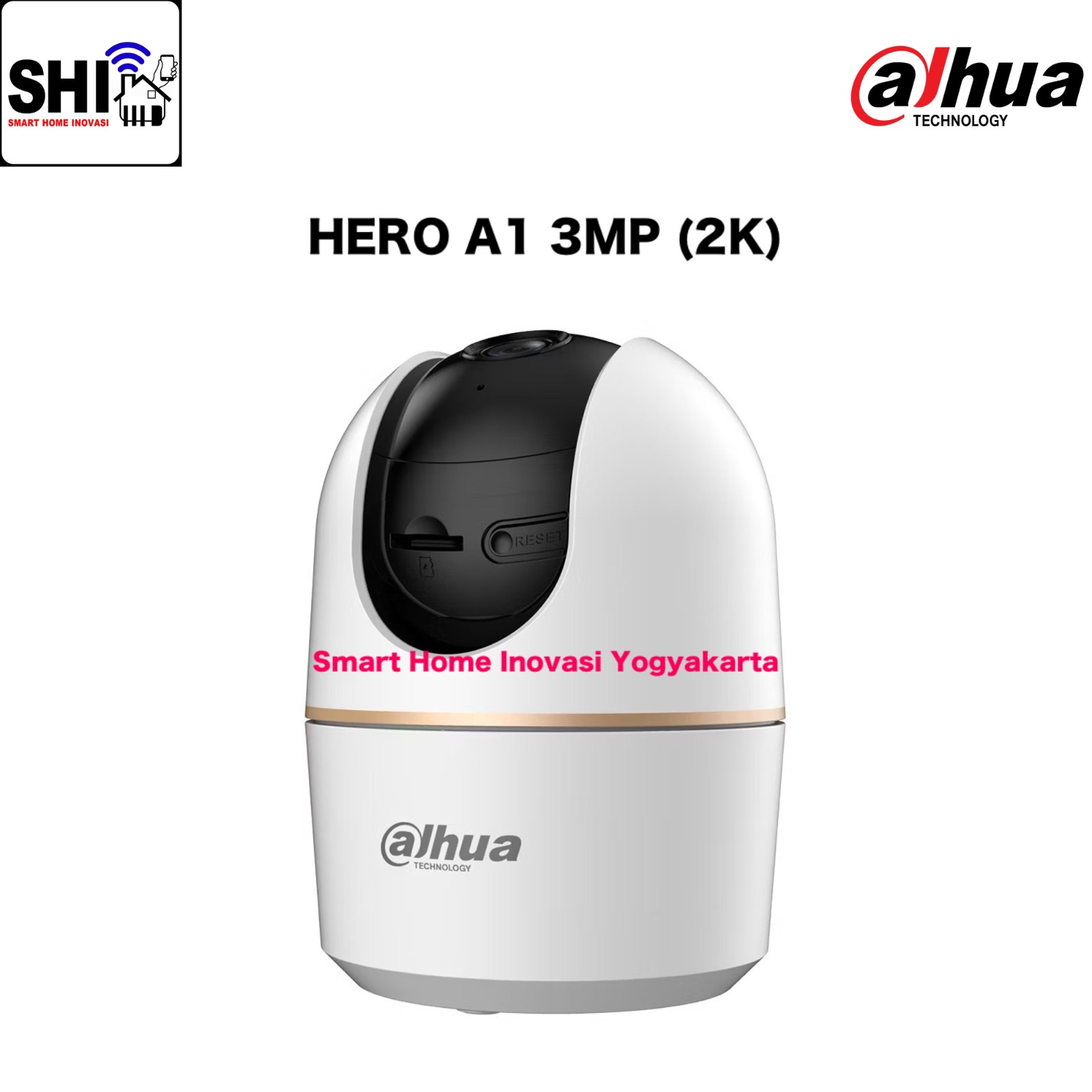

DAHUA IP Camera PTZ Indoor Hero A1 3MP (2K) H3A

DAHUA IP Camera PTZ Indoor Hero A1 3MP (2K) H3A

Camera :

• Image Sensor : 1/3.2" CMOS

• Max. Resolution : 2304 (H) × 1296 (V)

• Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s

• Illumination Distance : Up to 10 m (32.81 ft) (IR)

• Illuminator On/Off Control : Auto

• Illuminator Number : 1 (IR LED)

• Angle Adjustment :

  • Pan : 0° to 355°;

  • Tilt : –5° to 80°

Lens :

• Max. Aperture : F2.0

• Field of View : H : 73°; V : 41°; D : 88°

Intelligence :

• Human Detection : Yes

Video :

• Video Compression : H.265

• Video Frame Rate :

  • Main stream : 2304 × 1296@(1-25/30 fps)

  • Sub stream : 640 × 360@(1-25/30 fps)

  • *The values above are the max. frame rates of each stream;
          for multiple streams, the values will be subjected to the total
          encoding capacity.

• Resolution : 3M (2304 × 1296); nHD (640 × 360)

• Video Bit Rate : H.265: 80 kbps–4096 kbps

• Day/Night : Auto(ICR)/Color/B/W

• WDR : DWDR

• Motion Detection : Yes

• Image Rotation : 0°/180°

Audio :

• Built-in MIC : Yes, built-in Mic

• Built-in Speaker : Yes, built-in speaker

• Audio Compression : G.711a

Network :

• Network Port : RJ-45 (10/100 Base-T)

• Wi-Fi : IEEE 802.11b/g/n/ax 2.412-2.472 GHz,2.4G

• Storage : Micro SD card (up to 256 GB)

• Management Software : DMSS

• Mobile Client : iOS;Android

Power :

• Power Supply : 5 VDC

• Power Consumption :

  • Basic : 1.6 W;

  • Max. : 3.6 W (live + IR + PT rotation)

Environment :

• Operating Temperature :

  • –10 °C to +45 °C (+14 °F to +113 °F)

• Operating Humidity : ≤95% (RH), non-condensing

Structure :

• Casing Material : Plastic

• Product Dimensions :

  • φ77.8 mm × 108.1 mm (φ3.06" × 4.26")

• Net Weight : 195 g (0.30 lb)

Certifications : CE
