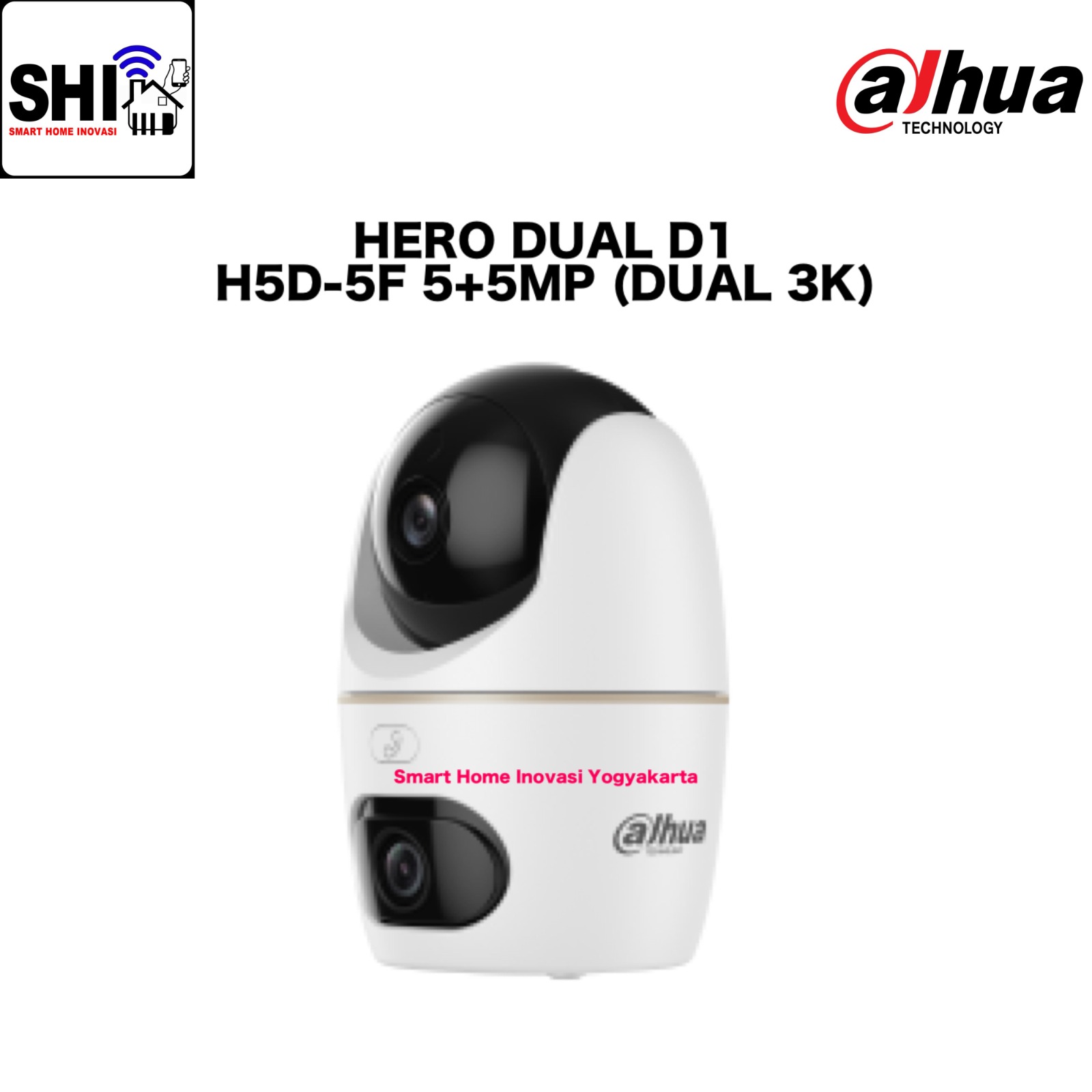

DAHUA IP Camera PTZ Indoor Dual 5MP + 5MP (Dual 3K) H5D

DAHUA IP Camera PTZ Indoor Dual 5MP + 5MP (Dual 3K) H5D

Camera :

• Fixed Lens

  • Image Sensor : 1/3" CMOS

  • Max. Resolution : 2880 (H) × 1620 (V)

  • Illumination Distance : Up to 30 m (98.43 ft) (IR)

  • Illuminator Number : 2 (IR LED)

  • Angle Adjustment : 0° to 15°

  • Lens Type : Fixed-focal

  • Focal Length : 3.6 mm

  • Max. Aperture : F2.0

  • Field of View : H: 86°; V: 46°; D: 104°

• PT Lens

  • Image Sensor : 1/3" CMOS

  • Max. Resolution : 2880 (H) × 1620 (V)

  • Illumination Distance :

    • Up to 30 m (98.43 ft) (IR)

    • Up to 30 m (98.43 ft) (Warm light)

  • Illuminator Number : 2 (IR LED); 1 (Warm light)

  • Angle Adjustment :

    • Pan : 0° to 349°

    • Tilt : –5° to 90°

  • Lens Type : Fixed-focal

  • Focal Length : 3.6 mm

  • Max. Aperture : F2.0

  • Field of View :

  • H : 86°; V : 46°; D : 104°

Intelligence :

• Human Detection : Yes

• Pet Detection : Yes

Audio and Video :

• Video Compression : H.265

• Video Frame Rate :

  • Main stream : 2880 × 1620@15 fps

  • Sub stream : 640 × 360@15 fps

  • *The values above are the max. frame rates of each stream;
          for multiple streams, the values will be subjected to the total
          encoding capacity.

• Video Bit Rate : H.265: 768 kbps–4096 kbps

• Day/Night : Auto(ICR)/Color/B/W

• WDR : DWDR

• Motion Detection : Yes

• Image Rotation : 0°/180°

• Built-in MIC : Yes, built-in Mic

• Built-in Speaker : Yes, built-in speaker

• Audio Compression : G.711a

Network :

• Network Port : RJ-45 (10/100 Base-T)

• Wi-Fi :

  • IEEE 802.11a/b/g/n/ac/ax 2.4–2.4835 GHz, 2.4 G,

  • EIRP≤20 dBm & 5.15–5.25 GHz, 5 G,

  • EIRP≤23 dBm@5150–5250 MHz

• Wi-Fi : Pairing

• Bluetooth : pairing

• Storage : Micro SD card (support max. 256 GB)

• Management Software : DMSS

• Mobile Client : iOS;Android

Function :

• Abnormal Sound Alarm : Yes

• Privacy Mode : Yes

General :

• Power Supply : 5 VDC

• Power Consumption :

  • Basic: 2.5 W;

  • Max. :  5.4 W (pulling stream+ IR + PT rotation)

• Operating Temperature :

  • –10 °C to +45 °C (–4 °F to +113 °F)

• Operating Humidity : ≤95% (RH), non-condensing

• Casing Material : Plastic

• Product Dimensions :

  • Φ80.9 mm × 125.7mm (3.19" × Φ4.95")

• Net Weight : 233 g (0.51 lb)

Certifications : CE
