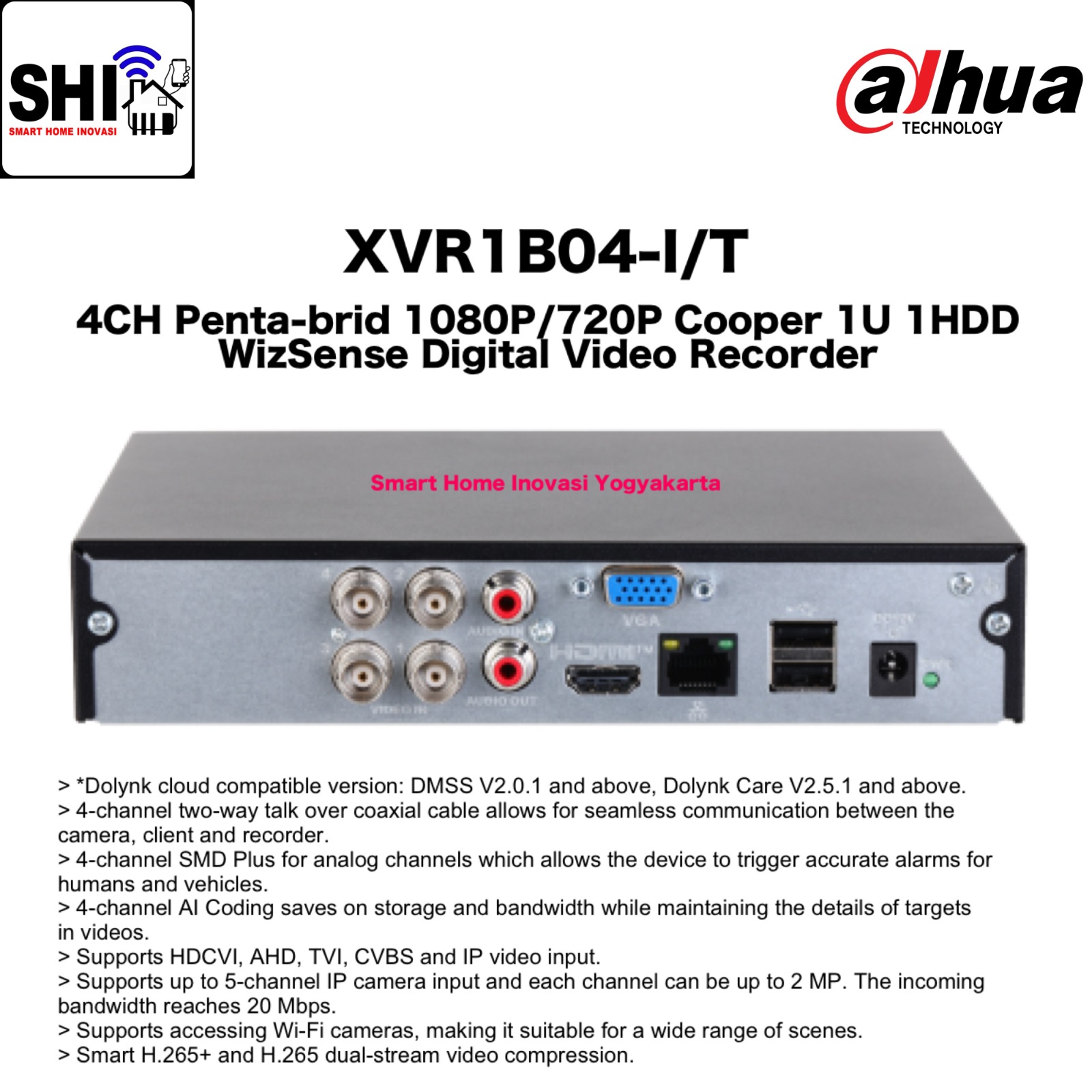

DAHUA DVR 4 Channel DH-XVR1B04-I/T, 4CH Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder
Perekam video digital 4 channel dengan dukungan HDD dan WiFi
Rp1.00
DAHUA DVR 4 Channel DH-XVR1B04-I/T, 4CH Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder
System :
Main Processor : Industrial-grade processor
Operating System : Embedded Linux
Operating Interface : Web; Local GUI
SMD :
SMD Plus by Recorder : 4 channels :
Secondary filtering for human and vehicle
Reducing false alarms caused by leaves, rain and
lighting condition change
SMD by Camera : 5 channels
Audio and Video :
Analog Camera Input : 4 BNC ports,
Supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input :
CVI : 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30 fps.
TVI : 1080p@25/30 fps; 720p@25/30 fps.
AHD : 1080p@25/30 fps; 720p@25/30 fps.
IP Camera Input :
Up to 5 channels of IPC access
1 IP channel by default + 4 channels
Analog channels are converted to IP channels
Incoming bandwidth : 20 Mbps,
Recording bandwidth : 20 Mbps
Outgoing bandwidth : 20 Mbps
*After IP extension is enabled, the AI Function (SMD)
will be disabled.
Encoding Capacity :
Main stream : 1080N/720p/960H/D1/CIF
@ (1 fps–25/30 fps)Sub stream : CIF @ (1 fps–15 fps)
Dual-stream : Yes
Video Bit Rate : 32 kbps–4096 kbps
Audio Sampling : 8 kHz, 16 bit
Audio Bit Rate : 64 kbps
Video Output : 1 HDMI, 1 VGA
HDMI : 1920 × 1080, 1280 × 1024, 1280 × 720
VGA : 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display :
When IP extension mode not enabled : 1/4
When IP extension mode enabled : 1/4/6
Third-party Camera Access :
Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
Compression Standard
Video Compression :
AI Coding
Smart H.265+
H.265
Smart H.264+
H.264
Audio Compression : G.711a; G.711u; PCM
Network :
Network Protocol :
HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP;
DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server;
P2P; Auto Registration; IP Search
Supports IP camera, DVR, NVS, etc.
Mobile Phone Access : iOS; Android
Interoperability :
ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
Browser : Chrome; IE; Safari; Edge; Firefox
Recording Playback :
Record Mode : General; alarm; motion detection
Recording Playback : 1/4
Backup Method : USB device and network
Playback Mode :
Instant playback
General playback
Event playback
Tag playback
Smart playback
Alarm :
General Alarm :
Motion detection
HDCVI alarm
Camera external alarm
Network alarm
PIR alarm
Anomaly Alarm :
Error (no disk, disk error, low space, low quota space;
network disconnection; IP conflict; MAC conflict)Video loss
Video tampering
Camera offline
Intelligent Alarm : SMD Plus
Alarm Linkage :
Record
Snapshot (panoramic)
IPC external alarm output
Audio
Buzzer
Log
Preset
E-mail
Ports :
Audio Input :
1-channel RCA
4-channel BNC (Coaxial Audio)
Audio Output : 1-channel RCA
Two-way Talk :
Coaxial two-way talk : 4-channel BNC
Local and network user two-way talk:
Shares the same audio input with the first channel
Disk Interface :
1 SATA port, up to 6 TB.
This limit varies depending on the environment temperature.
USB : 2 (2 rear USB 2.0 ports)
HDMI : 1
VGA : 1
Network Port : 1 (10/100 Mbps Ethernet port, RJ-45)
General :
Power Supply : 12 VDC, 1.5 A
Power Consumption : <7 W (without HDD)
Net Weight : 0.54 kg (1.19 lb)
Gross Weight : 0.94 kg (2.07 lb)
Product Dimensions (W × D × H) :
197.0 mm × 204.3 mm × 41.5 mm (7.76" × 8.04" × 1.63")
Packaging Dimensions (W × D × H) :
332.0 mm × 64.0 mm × 240.0 mm (13.07" × 2.52" × 9.45")
Operating Temperature : –10 °C to +45 °C (+14 °F to +113 °F)
Storage Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity : 10%–90% (RH), non-condensing
Installation : Desktop
Certifications :
CE-LVD: IEC 62368-1:2014
CE-EMC:
EN IEC 61000-3-2:2019
EN 61000-3-3:2013+A1:2019
EN 55032:2015+A11:2020
EN 55035:2017+A11:2020
EN 55024:2010+A1:2015
EN 50130-4:2011+A1:2014
