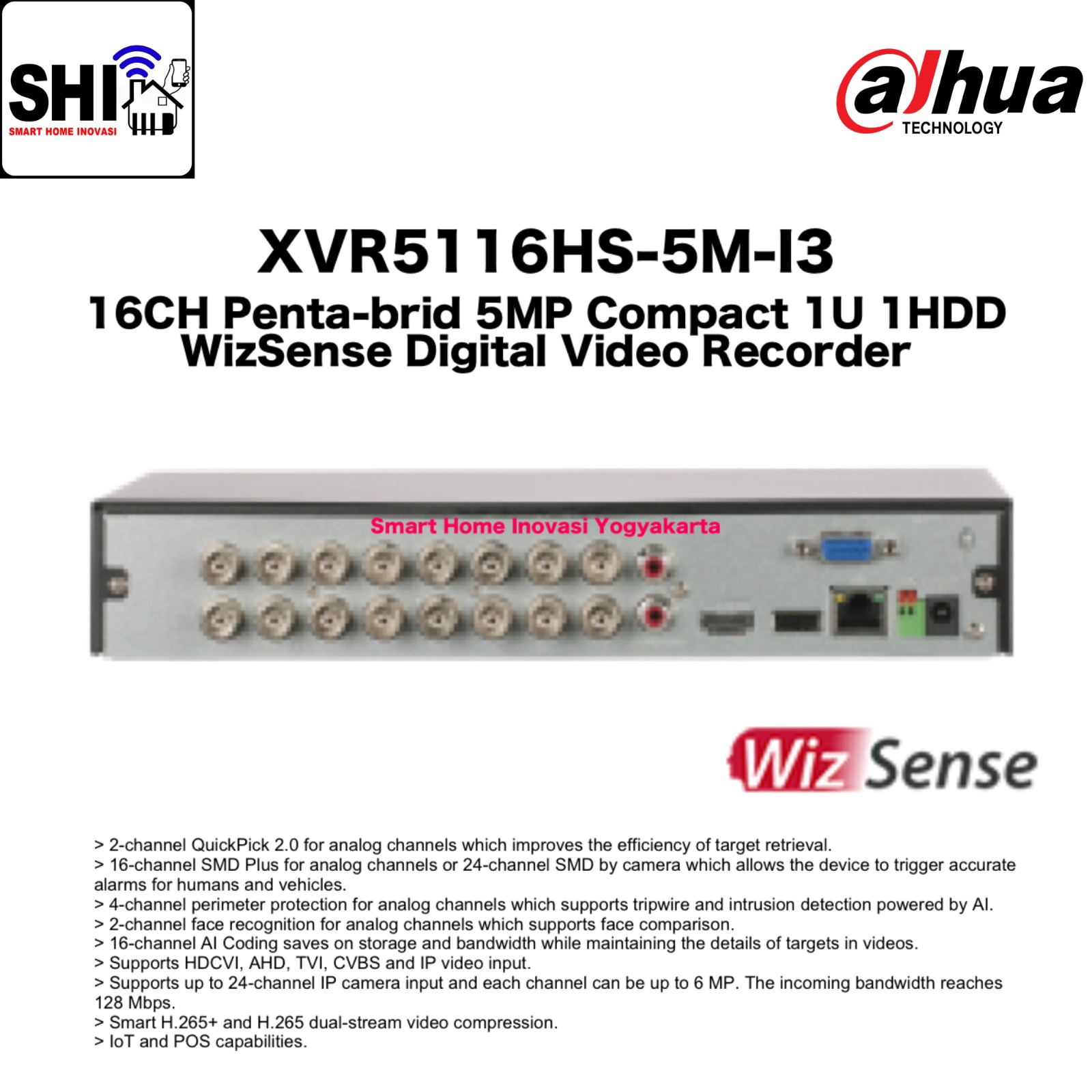

DAHUA DVR 16 Channel DH-XVR5116HS-5M-I3, 16CH Penta-brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder

16CH Penta-brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder

Rp1.00

System :

Quick Pick :

Perimeter Protection :

Perimeter Performance AI by Recorder (Number of Channels) :
- Advanced Mode : 2 channels, 10 IVS rules for each channel
- General Mode : 4 channels, 10 IVS rules for each channel

Face Detection :

Face Attributes : 6 attributes
Face Detection Performance of AI by Recorder :
- Number of Channels : 2 channels
- Up to 12 face images/s each channel

Face Recognition

Face Database Capacity :
- Up to 10 face databases with 10,000 images.
Face Recognition Performance of AI by Recorder
- (Number of Channels) : 2 channels

SMD Plus :

SMD Plus by Recorder :
- 16 channels :
  - Secondary filtering for human and vehicle
  - Reducing false alarms caused by leaves, rain and
    lighting condition change
SMD Plus by Camera : 24 channels

AI Video Quality Analytics :

AI Video Quality Analytics by Recorder :
- 16 channels :
  - Supports detecting brightness levels, color cast, defocus,
    overexposure, contrast levels, black and white.

Scene Changing :

Irregular Black Block Masking :

Audio and Video :

Analog Camera Input :
- 16 BNC ports,
- Supports HDCVI/AHD/TVI/CVBS auto-detect
Dual-stream : Yes
Video Bit Rate : 32 kbps–6144 kbps
Audio Sampling : 8 kHz, 16 bit
Audio Bit Rate : 64 kbps
Video Output : 1 HDMI, 1 VGA
HDMI :
- 3840 × 2160
- 2560 × 1440
- 1920 × 1080
- 1280 × 1024
- 1280 × 720
VGA :
- 1920 × 1080
- 1280 × 1024
- 1280 × 720
Multi-screen Display :
- When IP extension mode not enabled : 1/4/8/9/16
- When IP extension mode enabled : 1/4/8/9/16/25
- Third-party Camera Access :
  - Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF

Compression Standard :

Network :

Network Protocol :
- HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP;
  DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP;
  Alarm Server; P2P; Auto Registration; IP Search
- Supports IP camera, DVR, NVS, etc.
Mobile Phone Access : iOS; Android
Interoperability :
- ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
Browser : Chrome; IE; Safari; Edge; Firefox

Recording Playback :

Alarm :

General Alarm :
- Motion detection
- Alarm box
- HDCVI alarm
- Camera external alarm
- Network alarm
- PIR alarm
Anomaly Alarm :
- Error
  - No disk
  - Disk error
  - Low space
  - Low quota space
  - Network disconnection
  - IP conflict
  - MAC conflict
- Video loss
- Video tampering
- Camera offline
Intelligent Alarm :
- Face detection
- Face recognition
- Perimeter protection
- SMD Plus
Alarm Linkage :
- Record
- Snapshot (panoramic)
- IPC external alarm output
- Audio
- Buzzer
- Log
- Preset
- E-mail

Ports :

Audio Input :
- 1-channel RCA
- 16-channel BNC (Coaxial Audio)
Audio Output : 1-channel RCA
Two-way Talk : Yes
- (share the same audio input with the first channel)
Disk Interface : 1 SATA port, up to 16 TB.
- This limit varies depending on the environment temperature.
RS-485 : 1
USB : 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
HDMI : 1
VGA : 1
Network Port : 1
- (10/100/1000 Mbps Ethernet port, RJ-45)

General :

Power Supply : 12 VDC, 2 A
Power Consumption : <12 W (without HDD)
Net Weight : 1.00 kg (2.20 lb)
Gross Weight : 1.55 kg (3.42 lb)
Product Dimensions (W × D × H) :
- 260.0 mm × 237.8 mm × 47.6 mm (10.24" × 9.36" × 1.87")
Packaging Dimensions (W × D × H) :
- 344.0 mm × 89.0 mm × 287.0 mm (13.54" × 3.50" × 11.30")
Operating Temperature : –10 °C to +55 °C (+14 °F to +131 °F)
Storage Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity : 10%–90% (RH), non-condensing
Installation : Desktop

Certifications :
