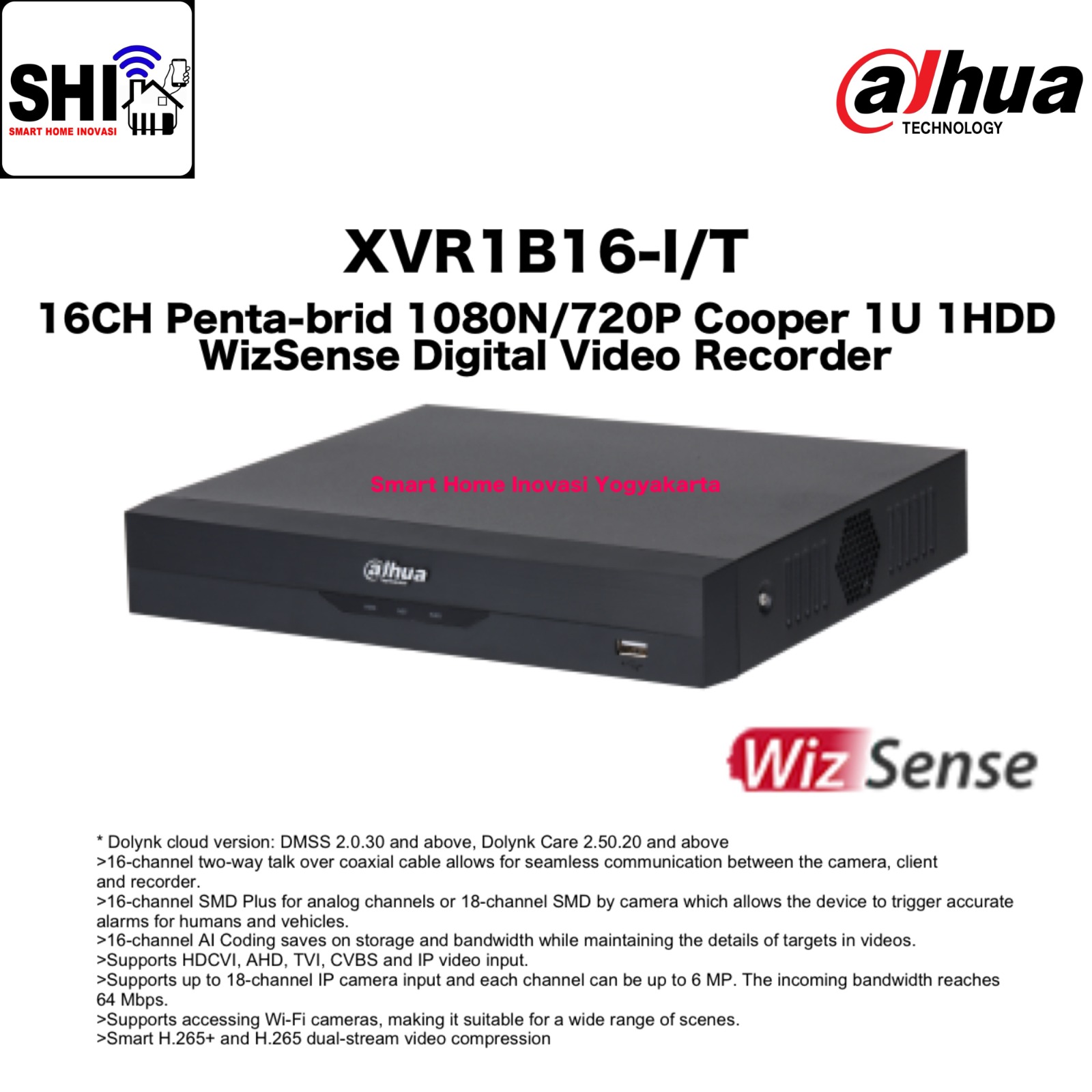

DAHUA DVR 16 Channel DH-XVR1B16-I/T, 16CH Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder
Perekam video digital 16 saluran dengan resolusi tinggi
Rp1.00
DAHUA DVR 16 Channel DH-XVR1B16-I/T, 16CH Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder
System :
Main Processor : Industrial-grade processor
Operating System : Embedded Linux
Operating Interface : Web; Local GUI
SMD
SMD Plus by Recorder :
16 channels :
Secondary filtering for human and vehicle
Reducing false alarms caused by leaves,
rain and lighting condition change
SMD by Camera : 18 channels
Irregular Black Block Masking :
Irregular Black Block Masking by Recorder : 1 channel
Audio and Video :
Analog Camera Input :
16 BNC ports
Supports HDCVI/AHD/TVI/CVBS auto-detect
Camera Input :
CVI : 1080p@25/30 fps; 720p@25/30 fps.
TVI : 1080p@25/30 fps; 720p@25/30 fps.
AHD : 1080p@25/30 fps; 720p@25/30 fps.
IP Camera Input :
Up to 18 channels of IPC access
2 IP channel by default + 16 channels
(analog channels are converted to IP channels)
Incoming bandwidth : 64 Mbps,
Recording bandwidth : 64 Mbps
Outgoing bandwidth : 64 Mbps
Encoding Capacity :
Main stream :
The 1st channel 1080N/720p@(1 fps–25/30 fps),
Others 1080N/720p@(1 fps–15 fps);
960H/D1/CIF@(1 fps–25/30 fps)
Sub stream: CIF@(1 fps–7 fps)
Dual-stream : Yes
Video Bit Rate : 32 kbps–4096 kbps
Audio Sampling : 8 kHz, 16 bit
Audio Bit Rate : 64 kbps
Video Output : 1 HDMI, 1 VGA
HDMI : 1920 × 1080, 1280 × 1024, 1280 × 720
VGA : 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display :
When IP extension mode not enabled : 1/4/8/9/16
When IP extension mode enabled : 1/4/8/9/16/25
Third-party Camera Access :
Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
Compression Standard :
Video Compression :
AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression :
G.711a; G.711u; PCM
Network :
Network Protocol :
HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP;
DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server;
P2P; Auto Registration; IP Search(Supports IP camera, DVR, NVS, etc.)
Mobile Phone Access : iOS; Android
Interoperability :
ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK
Browser : Chrome; IE; Safari; Edge; Firefox
Recording Playback :
Record Mode : General; alarm; motion detection
Recording Playback : 1/4/9/16
Backup Method : USB device and network
Playback Mode :
Instant playback;
General playback;
Event playback;
Tag playback;
Smart playback
Alarm :
General Alarm :
Motion detection;
HDCVI alarm;
Camera external alarm;
Network alarm;
PIR alarm
Anomaly Alarm :
Error
(no disk, disk error, low space, low quota space;
network disconnection; IP conflict; MAC conflict);
Video loss;
Video tampering;
Camera offline
Intelligent Alarm : SMD Plus
Alarm Linkage :
Record
Snapshot (panoramic)
IPC external alarm output
Audio
Buzzer
Log
Preset
E-mail
Ports :
Audio Input :
1-channel RCA
16-channel BNC (Coaxial Audio)
Audio Output : 1-channel RCA
Two-way Talk : Coaxial two-way talk : 16-channel BNC
Local and network user two-way talk :
Shares the same audio input with the first channel
Disk Interface : 1 SATA port, up to 16 TB.
This limit varies depending on the environment temperature.
USB : 2 (2 rear USB 2.0 ports)
HDMI : 1
VGA : 1
Network Port : 1 (10/100 Mbps Ethernet port, RJ-45)
General :
Power Supply : 12 VDC, 2 A
Power Consumption : <10 W (without HDD)
Net Weight : 0.96 kg (2.12 lb)
Gross Weight : 1.54 kg (3.40 lb)
Product Dimensions (W × D × H) :
260.0 mm × 231.6 mm × 47.6 mm (10.24" × 9.12" × 1.87")
Packaging Dimensions (W × D × H) :
344.0 mm × 89.0 mm × 287.0 mm (13.54" × 3.50" × 11.30")
Operating Temperature : –10 °C to +45 °C (+14 °F to +113 °F)
Storage Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity : 10%–90% (RH), non-condensing
Installation : Desktop
Certifications :
CE-LVD:
IEC 62368-1:2014
CE-EMC:
EN IEC 61000-3-2:2019,
EN 61000-3-3:2013+A1:2019,
EN 55032:2015+A11:2020,
EN 55035:2017+A11:2020,
EN 55024:2010+A1:2015,
EN 50130-4:2011+A1:2014
