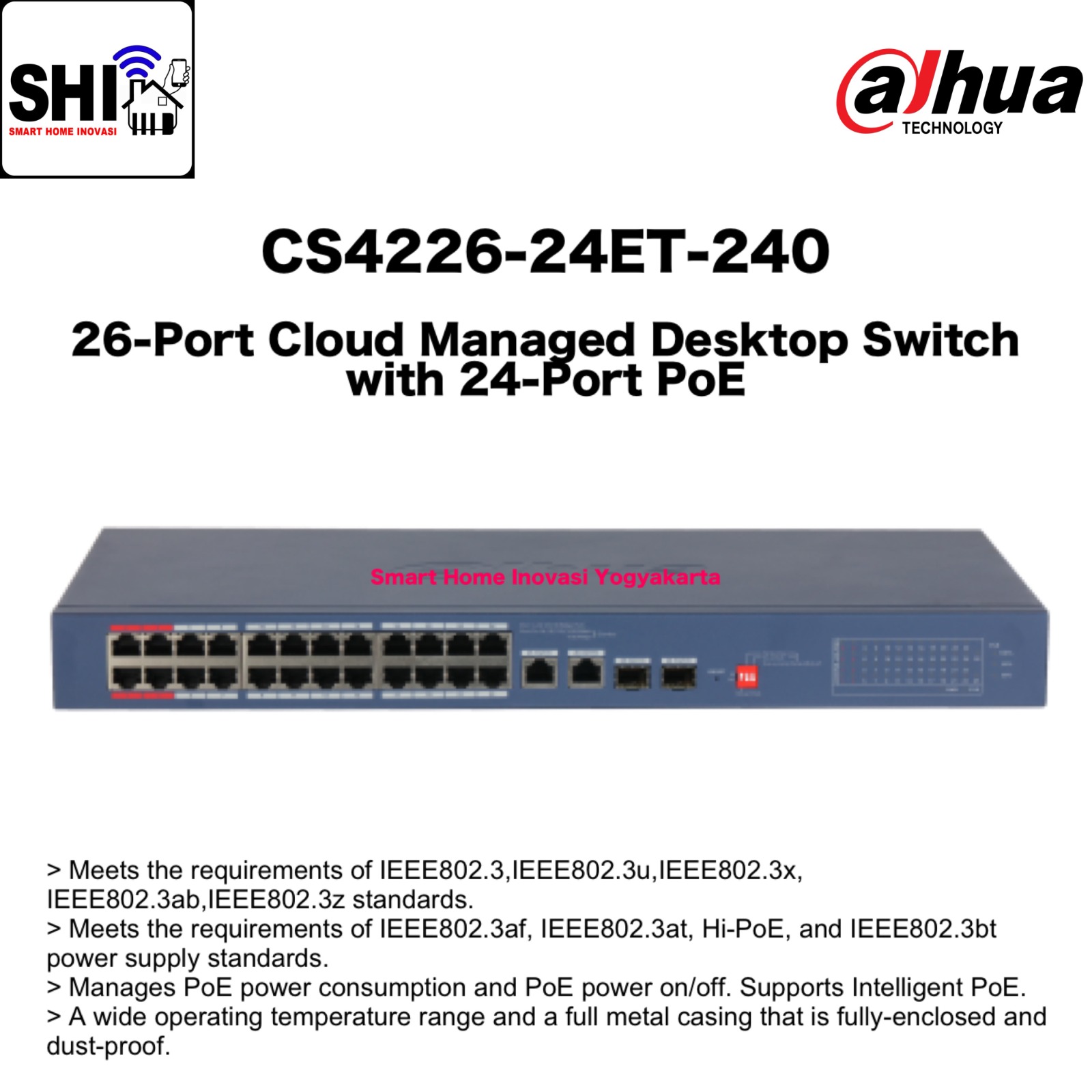

DAHUA Desktop Switch CS4226-24ET-240, 26-Port Cloud Managed Desktop Switch with 24-Port PoE

DAHUA Desktop Switch CS4226-24ET-240, 26-Port Cloud Managed Desktop Switch with 24-Port PoE

Basic :

• Switching Capacity : 8.8 Gbps

• Packet Forwarding Rate : 6.55 Mpps

• Description of Function Slots :

  • Port 1-24 : 24 × RJ-45 10/100 Mbps (PoE)

  • Port 25-26 : 2 × RJ-45 10/100/1000 Mbps (combo)

  • Port 25-26: 2 × SFP 1000 Mbps (combo)

• PoE Power :

  • Port 1-2 ≤ 90 W

  • Port 3-24 ≤ 30 W

  • Total ≤ 240 W

• Layer : Layer 2

• Operating Temperature :

  • –10 °C to +55 °C (+14 °F to +131 °F)

• Operating Humidity : 5% –95% (RH), non-condensing

• Power Supply :

  • Built-in power supply : 100–240 VAC, 47–63 Hz, max 4 A

• Power Consumption : Idling: ≤8.5 W ; Full load : 265 W

• Statics Protection :

  • Air discharge : 8 kV

  • Contact discharge : 6 kV

• Lightning Protection :

  • Common mode : 4 kV

  • Differential mode : 2 kV

• Net Weight : 2.47 kg (5.43 lb)

• Product Dimensions (L × W × H) :

  • 440 mm × 220 mm × 44 mm (17.32" × 8.66" × 1.73")

Hardware :

• PoE : Yes

• Ethernet Port : 24

• Reset Button : 1

• Storage Temperature : –40 °C to +70 °C (–40 °F to +158 °F)

• Storage Humidity : 5%–95% (RH), non-condensing

Performance :

• MTBF : 64.20 years

• Packet Buffer Size : 4 Mbit

• Jumbo Frame : 15K Byte

• MAC Table Size : 8K

• VLAN Number : 32

• Communication Standard :

  • IEEE802.3

  • IEEE802.3u

  • IEEE802.3x

  • IEEE802.3ab

  • IEEE802.3z

Feature :

• PoE Protocol :

  • IEEE802.3af

  • IEEE802.3at

  • Hi-PoE

  • IEEE802.3bt

• PoE Power Consumption Management : Yes

• PoE Pin Assignment : 1,2,4,5（V+）,3,6,7,8（V-）

• Long Distance PoE Transmission : Yes

• VLAN Function : Port-based VLAN

• IEEE 802.3x Flow Control : Yes

• DHCP Function : DHCP Client

• Equipment Management :

  • Web management

  • App management

General :

• Gross Weight : 3.12 kg (6.86 lb)

• Packaging Dimensions (L × W × H) :

  • 540 mm × 342 mm × 90 mm (21.26" × 13.46" × 3.54")

• Casing Material : Sheet metal

• Installation : Desktop mount; rack mount

Certifications : CE

In the Box :

• 1x Quick Start Guide

• 1x Legal and Regulatory Information

• 1x Power cord

• 1x Rack-mount kit
