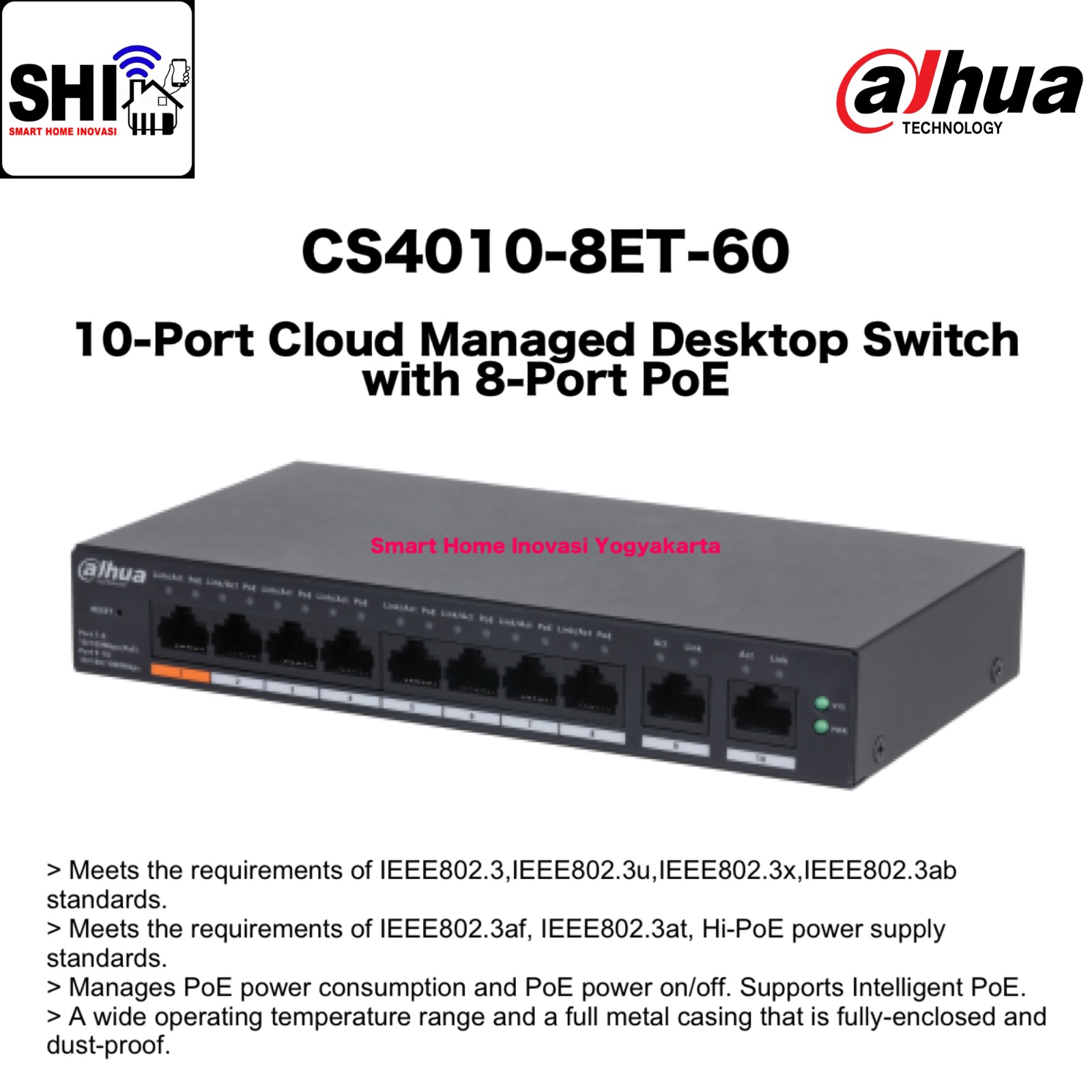

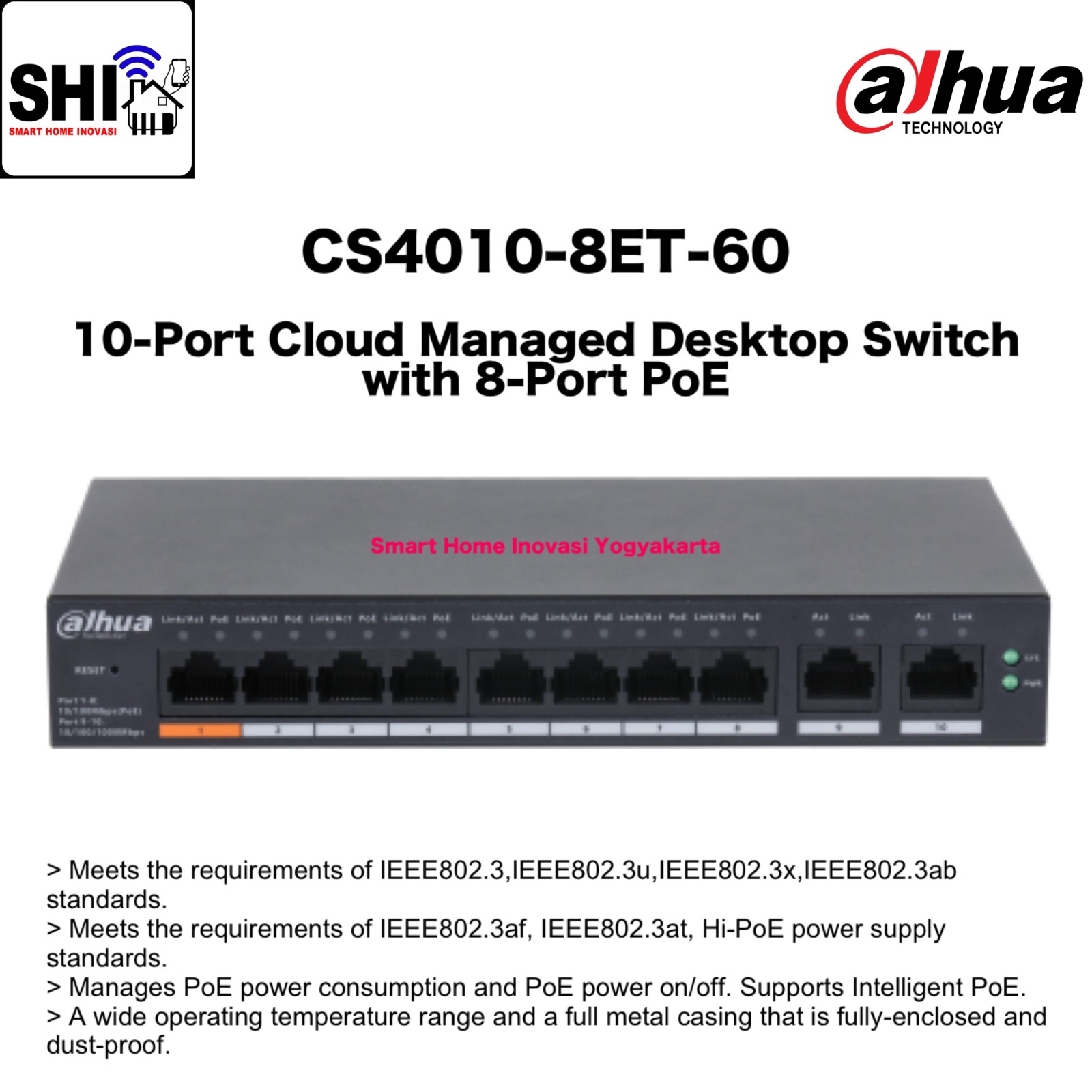

DAHUA Desktop Switch CS4010-8ET-60, 10-Port Cloud Managed Desktop Switch with 8-Port PoE
Switch Desktop Cloud Managed 10-Port dengan 8-Port PoE
Rp1.00
DAHUA Desktop Switch CS4010-8ET-60, 10-Port Cloud Managed Desktop Switch with 8-Port PoE
Basic :
Layer : Layer 2
Switching Capacity : 4.8 Gbps
Packet Forwarding Rate : 3.57 Mpps
Description of Function Slots :
Port 1-8: 8 × RJ-45 10/100 Mbps (PoE)
Port 9-10: 2 × RJ-45 10/100/1000 Mbps (uplink)
PoE Power : Port 1 ≤ 60 W, Port 2-8 ≤ 30 W, total ≤ 60 W
Operating Temperature : –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity : 5% –95% (RH), non-condensing
Power Consumption : Idling: ≤3 W;
Full load : 65 W
Power Supply : External power supply : 53 VDC, 1.226 A
Statics Protection :
Air discharge : 8 kV
Contact discharge : 6 kV
Lightning Protection :
Common mode : 4 kV
Differential mode : 2 kV
Net Weight : 0.28 kg (0.64 lb)
Product Dimensions (L × W × H) :
130 mm × 90 mm × 26 mm (5.11" × 3.54" × 1.02")
Hardware :
PoE : Yes
Reset Button : 1
Storage Temperature :
–40 °C to +70 °C (–40 °F to +158 °F)
Storage Humidity : 5%–95% (RH), non-condensing
Performance :
MTBF : 232.62 years
Packet Buffer Size : 4 Mbit
Jumbo Frame : 9216 Byte
MAC Table Size : 8K
VLAN Number : 32
Communication Standard :
IEEE802.3
IEEE802.3u
IEEE802.3x
IEEE802.3ab
Feature :
PoE Protocol : IEEE802.3af; IEEE802.3at; Hi-PoE
PoE Power Consumption Management : Yes
PoE Pin Assignment : 1,2,4,5（V+）,3,6,7,8（V-）
Long Distance PoE Transmission : Yes
VLAN Function : Port-based VLAN
IEEE 802.3x Flow Control : Yes
DHCP Function : DHCP Client
Equipment Management :
Web management
App management
General :
Gross Weight : 0.80 kg (1.76 lb)
Packaging Dimensions (L × W × H) :
265 mm × 238 mm × 76 mm (10.43" × 9.37" × 2.99")
Casing Material : Sheet metal
Installation : Desktop mount; wall mount
In the Box :
1x Quick Start Guide
1x Legal and Regulatory Information
1x Power adapter
1x Power cord
Certifications : CE
