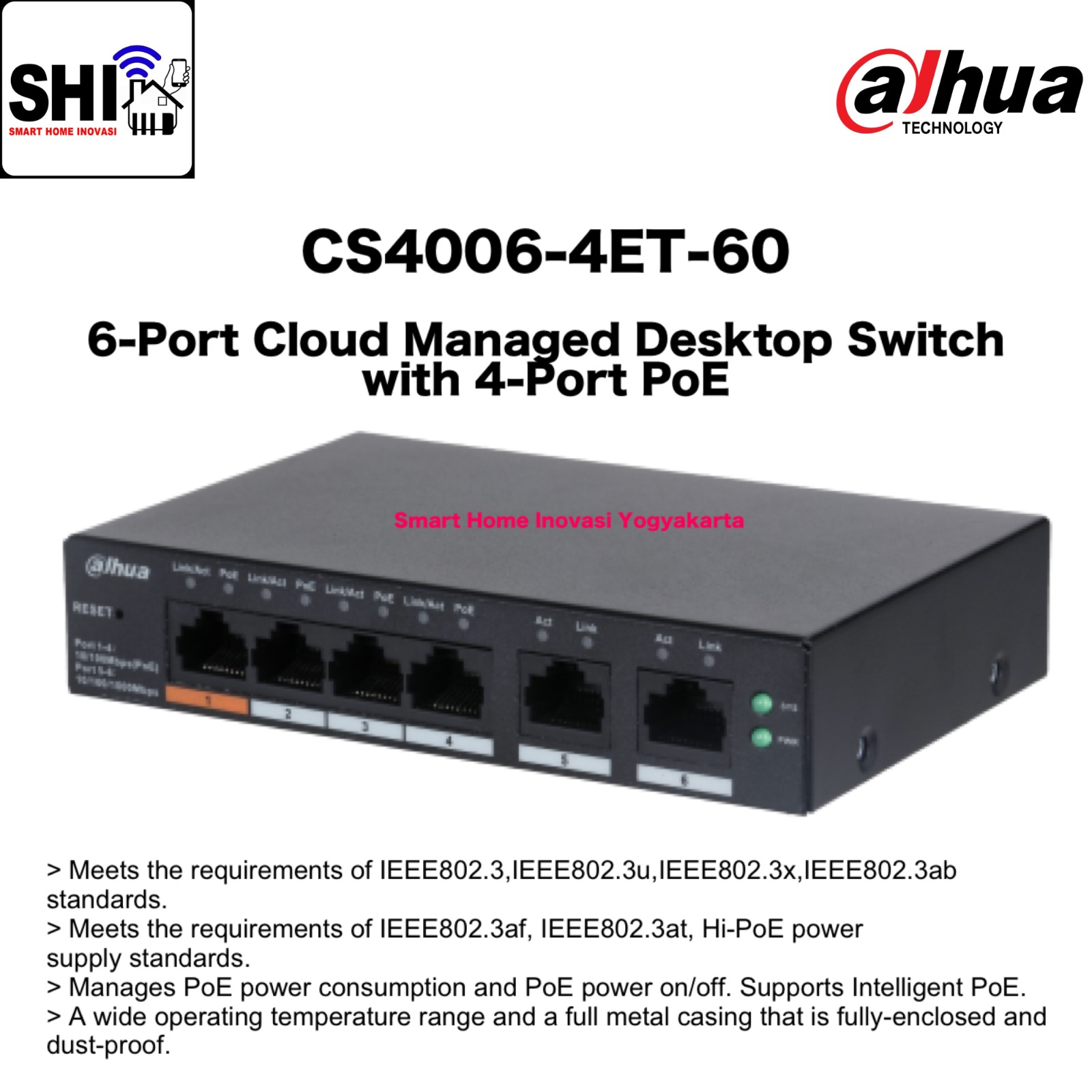

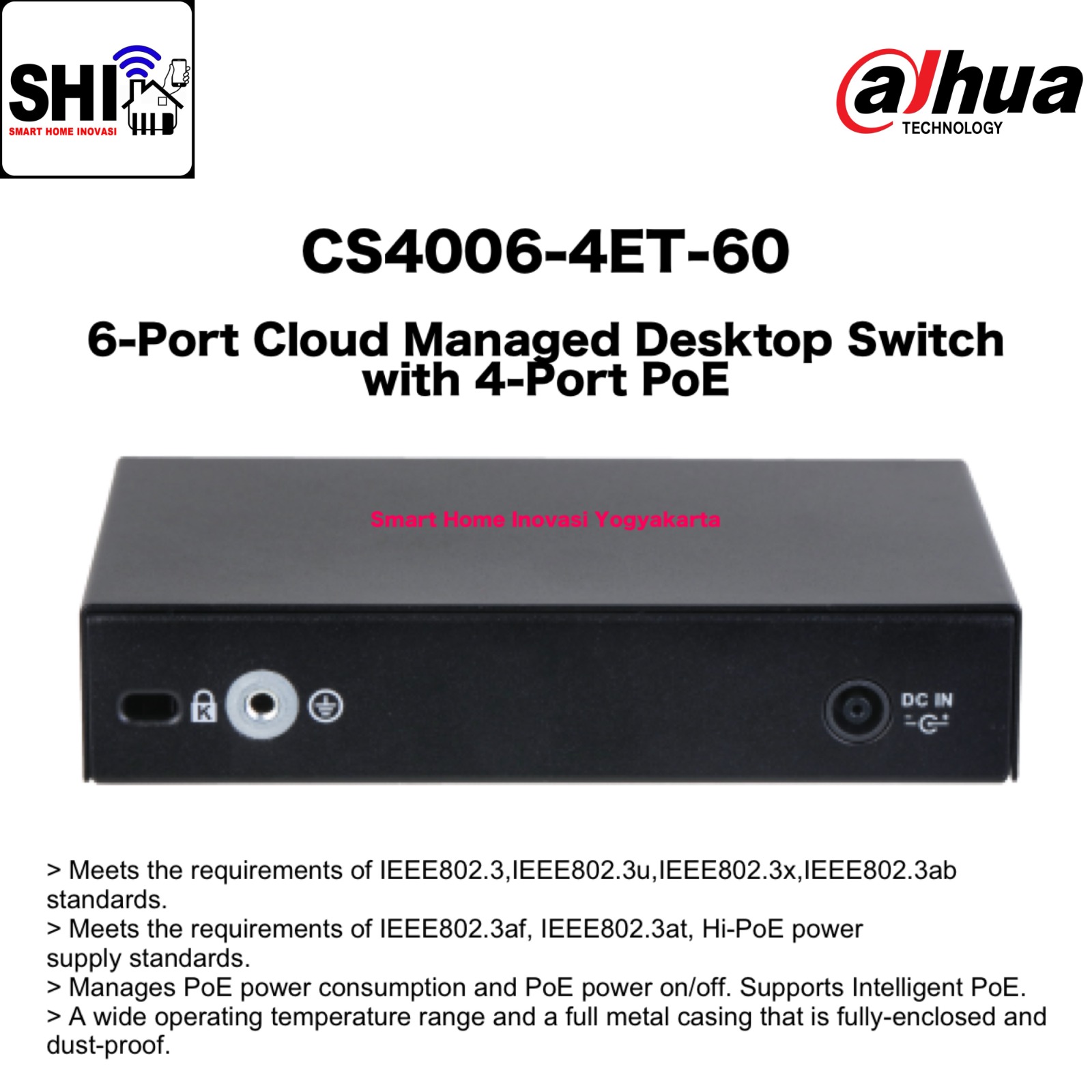

DAHUA Desktop Switch CS4006-4ET-60, 6-Port Cloud Managed Desktop Switch with 4-Port PoE
Switch desktop dengan 4-Port PoE untuk kemudahan manajemen cloud
Rp1.00
DAHUA Desktop Switch CS4006-4ET-60, 6-Port Cloud Managed Desktop Switch with 4-Port PoE
Hardware :
Included Power Adapter : Yes
PoE : Yes
Ethernet Port : 4
Ethernet Port Speed : 10/100 Mbps
Ethernet Port Uplink Speed : 10/100/1000 Mbps
Description of Function Slots :
Port 1-4 : 4 × RJ-45 10/100 Mbps (PoE);
Port 5-6 : 2 × RJ-45 10/100/1000 Mbps (uplink)
Reset Button : 1
Power Supply : External power supply : 53 VDC, 1.226 A
Operating Temperature : –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity : 5%–95% (RH), non-condensing
Storage Temperature : –40 °C to +70 °C (–40 °F to +158 °F)
Storage Humidity : 5%–95% (RH), non-condensing
Power Consumption : Idling: ≤3 W Full load: 65 W
Performance :
Layer : Layer 2
Management Type : Yes
Smart Managed Switch : Yes
MTBF : 232.62 years
Switching Capacity : 4.8 Gbps
Packet Forwarding Rate : 3.57 Mpps
Packet Buffer Size : 4 Mbit
Jumbo Frame : 9216 Byte
MAC Table Size : 8K
VLAN Number : 32
Communication Standard :
IEEE802.3;
IEEE802.3u;
IEEE802.3x;
IEEE802.3ab
Feature :
PoE Protocol : IEEE802.3af; IEEE802.3at; Hi-PoE
PoE Power : Port 1 ≤ 60 W, Port 2-4 ≤ 30 W, total ≤ 60 W
PoE Power Consumption Management : Yes
PoE Pin Assignment : 1,2,4,5（V+）,3,6,7,8（V-）
Long Distance PoE Transmission : Yes
VLAN Function : Port-based VLAN
IEEE 802.3x Flow Control : Yes
DHCP Function : DHCP Client
Equipment Management :
Web management;
App management
General :
Statics Protection :
Air discharge: 8 kV;
Contact discharge: 6 kV
Lighting Protection :
Common mode: 4 kV;
Differential mode: 2 kV
Net Weight : 0.28 kg (0.64 lb)
Gross Weight : 0.92 kg (2.02 lb)
Product Dimensions (L × W × H) :
130 mm × 90 mm × 26 mm (5.11" × 3.54" × 1.02")
Packaging Dimensions (L × W × H) :
265 mm × 238 mm × 76 mm (10.43" × 9.37" × 2.99")
Casing Material : Sheet metal
Installation : Desktop mount; wall mount
